Indoor Tight Buffer 50/125 Multimode Duplex Fibre Optic Cable

Name: Indoor Tight Buffer 50/125 Multimode Duplex Fibre Optic Cable
Brand: all-electronics-online.com
SKU: 818219225
Availability: InStock
Rating: 4.9 (138 reviews)

Price:	US $ 0.06-0.2/Meter
Min Order:	2000/Meter
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	GJFJV
Fiber Count:	6fibers 12 Fibers
Fiber:	G652D/G657A
Fiber Type:	Sinflemode or Multimode
Strength Member:	Kevlar Yarn/Aramid Yarn
Installation:	Indoor
Storage Temperature (ºC):	-40~+70
Application:	Telecommunication
Type:	Single-mode Fiber
Certification:	ISO9001
Sheath Material:	LSZH or PVC

Product Description

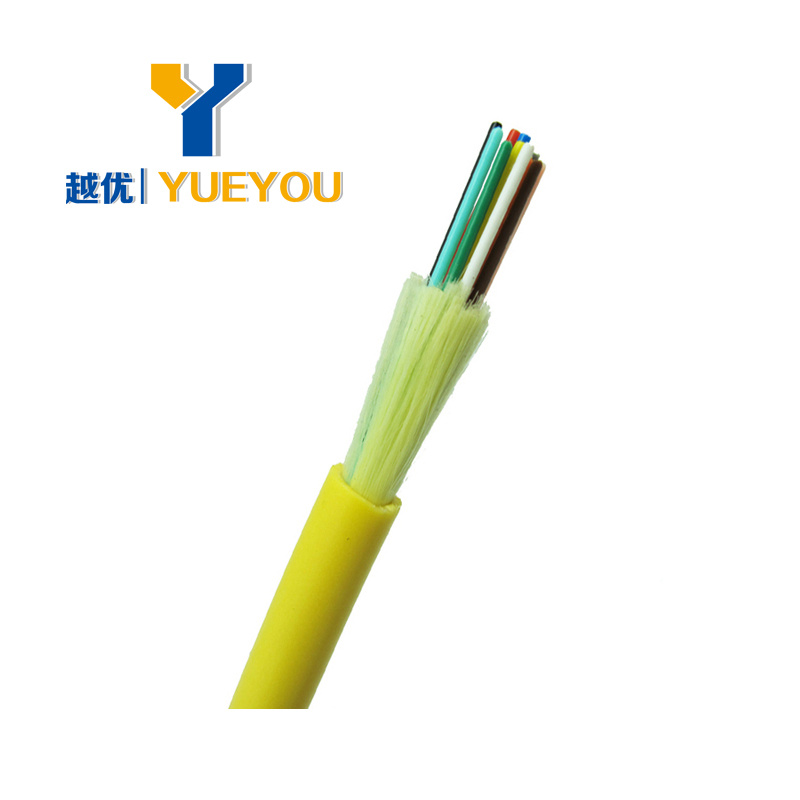

Indoor Tight Buffer 50/125 Multimode Duplex Fibre Optic Cable

Description:

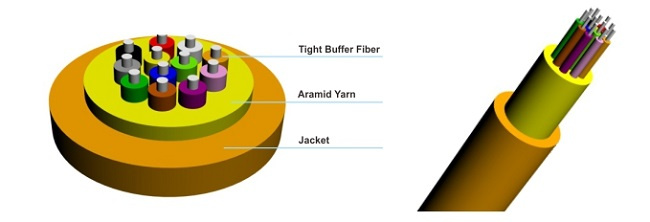

Multi Purpose Distribution Cable use simplex cable (φ900μm tight buffer, aramid yarm as strength member) as subunit. The subunits are stranded around the cable core. The cable is completed with a PVC or LSZH (Low smoke, Zero halogen, Flame-retardant) jacket.

Features:

Stranded non-metallic strength member structure ensure the cable endure large tensile strength.
The jacket anti-corrosion, anti-water, anti-ultraviolet radiation, flame-retardant and harmless to environment .

Application:

Indoor any purpose cable distribution.
Ideal for intra-building backbone cabling including floors, terminal boxex and work stations.
Ideal for short and middle distance direct terminals intra-buildings and within different buildings, each sub-cable unit can be directly connected by standard connector.

Fiber Characteristics:

Fiber Type		G.657A1	G.657A2	OM3	OM4
Attenuation(+20ºC)	@850nm			≤2.3dB/km	≤2.3dB/km
	@1300nm			≤0.6dB/km	≤0.6dB/km
	@1310nm	0.36 dB	0.36 dB
	@1550nm	0.22 dB	0.22 dB
Overfilled launch Bandwidth	@850nm			≥1500MHZ.km	≥3500MHZ.km
Overfilled launch Bandwidth	@1300nm			≥500MHZ.km	≥700MHZ.km
Effective Modal Bandwidth	@850nm			≥2000MHZ.km	≥4700MHZ.km
10GB/S Ethernet link length				≤300m	≤550m
Min Bending Radius(mm)		10	7.5	30	30

Physical characteristics and mechanical performance:

Fiber Count	Cable Diameter(mm	Cable Weight(kg/km)	Tensile Strength (N/100mm)	Crush Resistance (N/100mm)	Minimum Bending Radius (mm)	Storage Temperature (ºC)
1	1.9	2.4	100/60	100/500	15D/30D	-40~+70
2	2.8	6.0	100/60	100/500	15D/30D
4	4.5	20	300/90	300/1000	15D/30D
6	5.0	28	300/90	300/1000	15D/30D
8	5.5	35	440/130	300/1000	15D/30D
12	5.8	43	440/130	300/1000	15D/30D

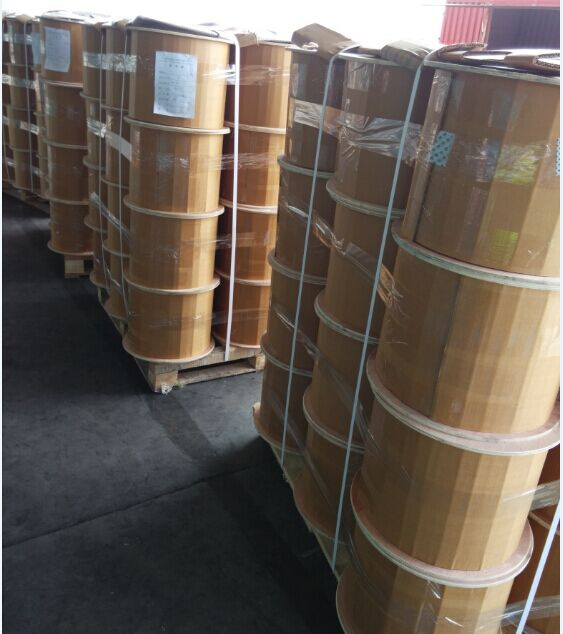

Packages:

More popular products:

About us:

Contact us:

If you are interested in our products,please contact with our sales,we will reply you in 24 hours with english or spanish. Also you can send us a email or call us by telephone.

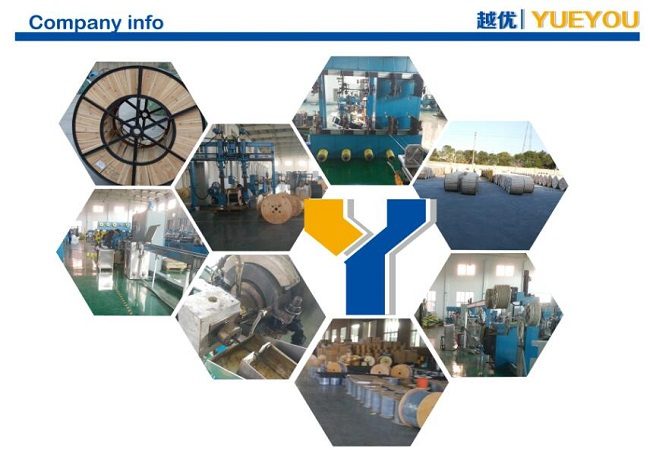

Ningbo Haishu Yueyou Communication Equipment Limited Located in zhejiang Province, is a professional manufacturer of fiber optic cables in China, more than 10 years experience in manufacturer, sales about communication cables.

YueYou implements real ISO management, and according to 6S management, using excellent technology, high-quality concept and qualified service team, implementing the enterprise's purpose and philosophy, been as a qualified supplier. To meet customer's demand is our goal, to exceed customer expectations as the driving force, Yueyou creating a unique business value and reputation value for each customer.

Yueyou now has been chosen as an important supplier by famous domestic and overseas telecommunication enterprises. Whenever, we will use our best efforts to prove our unique perspective.

Sincerely looking forward with you hand by hand, creating brightly future!
