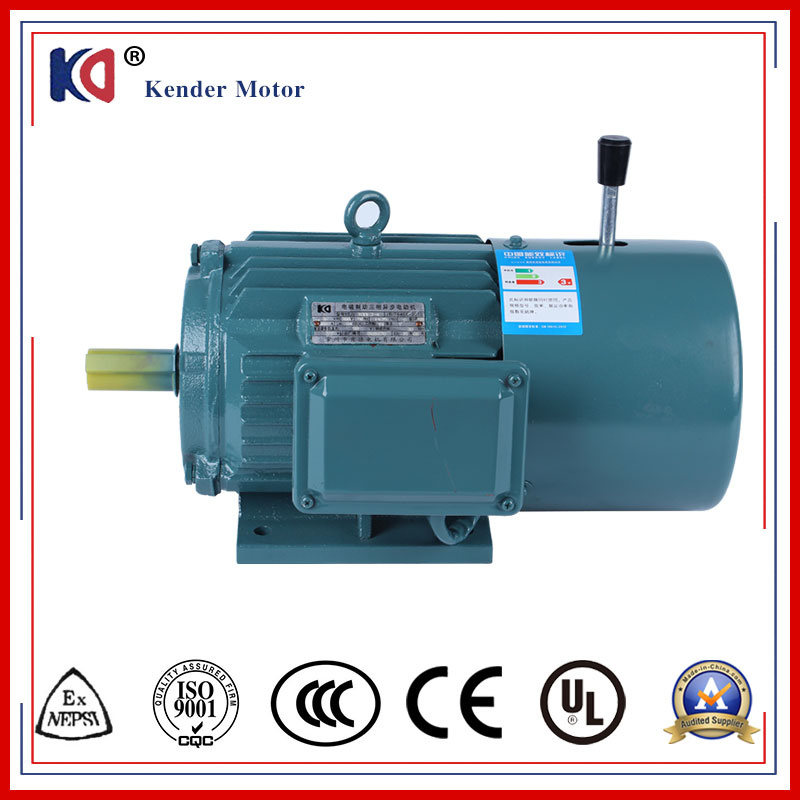

Induction AC Brake Motor with High Power

Prod Model:	YEJ
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model:	Yej90L-4
Power:	1.5kw
Voltage:	380V
Efficiency:	79%
Power Factor:	0.79 Cosφ
Stall /Rated Current:	6.5A
Stall /Rated Torque:	2.3 N.M
Static Braking Torque:	15n.M
No Load Brake Time:	0.2s
Exciting Power:	60W
Number Of Stator:	Three-Phase
Function:	Control
Brand:	Kd

Product Description

1,Rated voltage:220V/660V/380/660V/660V/1140V
2,Rated Frequency:50HZ/60HZ
3,Protection class:IP55
4,work mode:S1
5,Insulation class:B,F,H
6,pole:2-8
7,Rotor:Squirrel cage rotor

Advantage of Induction AC Brake Motor with High Power

1,High efficiency and torque
2,Energy saving
3,Little vibration,
4,Low noise
5,safe and reliable operation

Application of Induction AC Brake Motor with High Power

1,Pack-aging machinery
2,Woodworker machinery
3,Food processing machinery
4,Chemical engineering machinery
5,Textile machinery
6.Construction machinery



Technical Data of Induction AC Brake Motor with High Power


Model	Power (kW)	Speed (r/min)	Voltage (380V)	Efficiency (%)	Power Factor (cosφ)	Stall/Rated Current (A)	Stall/Rated Torque	Max/Rated Torque	Static braking torque	No Load Brake Time	Exciting   Power
									N.m	s	W
80M1-2	0.75	2830	1.81	75	0.84	6.5	2.2	2.3	7.5	0.2	50
80M2-2	1.1		2.52	77	0.86				7.5	0.2	50
90S-2	1.5	2840	3.44	78	0.85	7			15	0.2	60
90L-2	2.2		4.83	80.5	0.86				15	0.2	60
100L-2	3	2880	6.39	82	0.87				30	0.2	80
112M-2	4	2890	8.17	85.5	0.87				40	0.25	110
132S1-2	5.5	2900	11.1	85.5	0.88	7	2		75	0.25	130
132S2-2	7.5		15.02	86.2					75	0.25	130
160M1-2	11	2930	21.78	87.2	0.88				150	0.35	150
160M2-2	15		29.36	88.2				2.2	150	0.35	150
160L-2	18.5	2930	35.49	89	0.89				150	0.35	150
180M-2	22	2940	42.2	89					200	0.35	150
200L1-2	30	2950	56.9	90					300	0.45	200
200L2-2	37		69.79	90.5					300	0.45	200
225M-2	45	2970	83.96	91.5					450	0.45	200
801-4	0.55	1390	1.51	73	0.76	6	2.4	2.3	7.5	0.2	50
802-4	0.75		2.01	74.5	0.76		2.3		7.5	0.2	50
90S-4	1.1	1400	2.75	78	0.78	6.5			15	0.2	60
90L-4	1.5		3.65	79	0.79				15	0.2	60
100L1-4	2.2	1430	5.03	81	0.82	7	2.2		30	0.2	80
100L2-4	3		6.82	82.5	0.81				30	0.2	80
112M-4	4	1440	8.77	84.5	0.82				40	0.25	110
132S-4	5.5		11.64	85.5	0.84				75	0.25	130
132M-4	7.5		15.41	87	0.85				75	0.25	130
160M-4	11	1460	22.61	88	0.84				150	0.35	150
160L-4	15		30.3	88.5	0.85			2.2	150	0.35	150
180M-4	18.5	1470	35.9	91	0.86		2		200	0.35	150
180L-4	22		42.48	91.5					200	0.35	150
200L-4	30		56.82	92.2	0.87				300	0.45	200
225S-4	37	1480	70.39	91.8	0.87		1.9		450	0.45	200
225M-4	45		84.17	92.3	0.88				450	0.45	200
90S-6	0.75	940	2.25	72.5	0.7	5.5	2	2.2	15	0.2	60
90L-6	1.1		3.16	73.5	0.72	5.5			15	0.2	60
100L-6	1.5		3.97	77.5	0.74	6			30	0.2	80
112M-6	2.2		5.61	80.5	0.74				40	0.25	110
132S-6	3	960	7.23	83	0.76	6.5			75	0.25	130
132M1-6	4		9.4	84	0.77				75	0.25	130
132M2-6	5.5		12.56	85.3	0.78			2	75	0.25	130
160M-6	7.5	970	16.99	86					150	0.35	150
160L-6	11		24.63	87	0.78				150	0.35	150
180L-6	15		31.44	89.5	0.81		1.8		200	0.35	150
200L1-6	18.5		37.71	89.8	0.83				300	0.45	200
200L2-6	22		44.65	90.2	0.83				300	0.45	200
225M-6	30	980	59.45		0.85		1.7		450	0.45	200
