Induction Motor Three Phase Motor Stator Slot Cell Insulator

Prod Model:	CZDL2-160/190
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Stator I.D:	50~120mm
Max Stator O.D:	190mm
Stator Stack Length:	20mm~160mm
Height Of Edge Folded(Cuff):	2~7mm
Max Insulation Paper Thickness:	0.35mm
Tack Time:	0.6s/Slot
Input:	380V/50Hz
Machine Efficiency:	0.8s/Slot
Dimension:	1200mm × 650mm × 1200mm
Weight:	Around 250kg
Application:	Stator
Structure:	Insulation Paper
Type:	Insulation Paper
Usage:	Stator Insulation Paper
Color:	as Per Customer Requirement
Brand:	Nide

Product Description

Small and Medium-sized Induction Motor Three Phase Motor Stator Slot Cell Insulator

Quick Detail:
1. Model No.: CZDL2-160/190
2. It  is suitable for small and medium-sized three phase motor, gasoline generator, etc.
3. Operation is very simple.
4. It will automatically inserting.
5. it is convenient and easy for different slot number stator production and changing tooling.

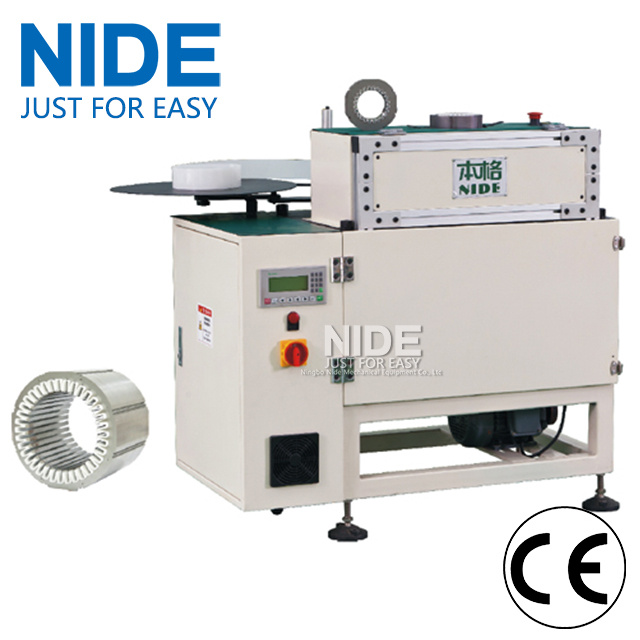

Stator Insulation Paper Inserting Machine is suitable for small and medium-sized three phase motor, gasoline generator,etc. Inserting insulation paper automatically from bottom of stator slot;automatic paper feeding, edge folding and forming;characterized by low noit is conveient and easy for different slot number stator production and changing tooling.ise,fast speed, excellent forming, etc.; slot number change is controlled by electric; interval slot inserting and skip slot inserting could be at option. Operation is very simple, load empty stator manually, press start button, it will indexing and insert paper automatically, unload finished stator manually, then one cycle is finished.

Edge folded, paper feeding, cutting, forming and inserting are achieved through mechanical transmission, link mechanism and eccentric wheel, and machine will stop automatically after finishing above process. High automation, simple operation, and improve working efficiency.

Technical Data:

Stator I.D	50~120mm
Max stator O.D	190mm
Stator stack length	20mm~160mm
Height of edge folded(cuff)	2~4mm/4-7mm
thickness of insulation paper	0.188mm~0.25mm
Efficiency	0.8S/slot
Power supply	380V/50Hz
Dimension	1200mm × 650mm × 1200mm
Weight	≈ 250kg

Besides machines, we also supply various kinds of insulation materials, like insulation paper, wedge,
DMD Class B/F, DM Class B/F, Polyester film Class E, Red Vulcanized Fiber Class A, NH& NHN, etc.
