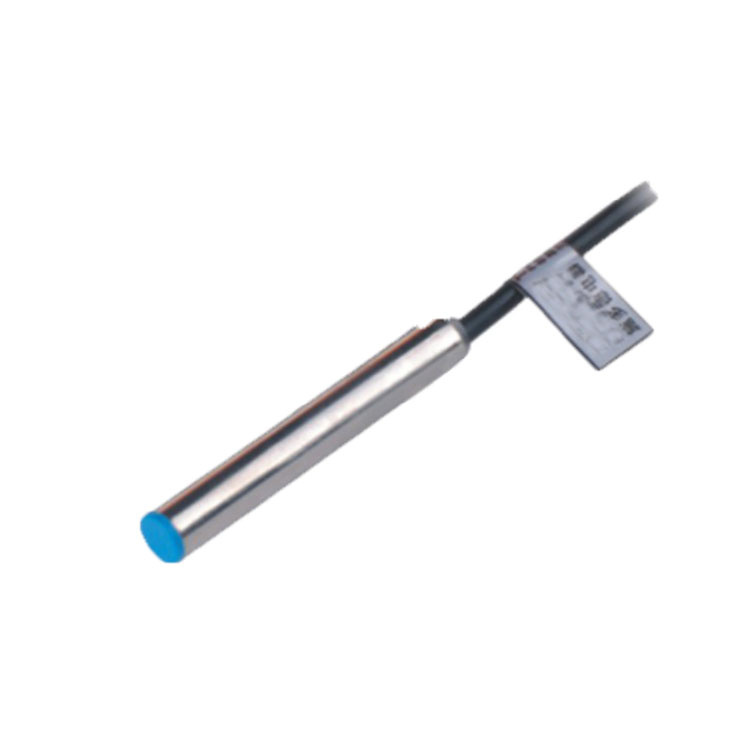

Name: Inductive Proximty Sensor Lm6
Brand: all-electronics-online.com
SKU: 834406285
Availability: InStock
Rating: 4.6 (81 reviews)

Price:	US $ 10/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	LM6
Detection Distance:	1mm/1.5mm
Working Voltage:	DC6-36V or AC90-250V
Output Form:	NPN / PNP / Two Wire / SCR
State:	No / Nc
Flush:	Flush / Non-Flush
Type:	Proximty Switch
Production Process:	Flush or Non-Flush

Product Description

Proximity Sensors are available in models of capacitive sensor and inductive sensor using high-frequency oscillation to detect ferrous and non-ferrous metal objects and in capacitive models to detect non-metal objects. Sensors are available with environment resistance, heat resistance, resistance to chemicals, and resistance to water

Features :

Compact volume
High precision of repeated location
Diversified exterior structures
Good performance of anti-interference.
Many output forms
High on-off frequency.
Wide voltage range
Dust proof, vibration proof, water proof and oil proof.
With short-circuit protection and inverted connecting protection.
Long service life

Flush	Detection distance			1mm
	DC6~36VDC	NPN	NO	LM6-3001NA
			NC	LM6-3001NB
		PNP	NO	LM6-3001PA
			NC	LM6-3001PB
		Two wire system	NO	LM6-3001L
			NC	LM6-3001LB
	AC90~250VAC	Controllable silicon	NO	LM6-2001A
			NC	LM6-2001B
Non-flush	Detection distance			1.5mm
	DC6~36VDC	NPN	NO	LM6-3002NA
			NC	LM6-3002NB
		PNP	NO	LM6-3002PA
			NC	LM6-3002PB
		Two wire system	NO	LM6-3002LA
			NC	LM6-3002LB
	AC90~250VAC	Controllable silicon	NO	LM6-2002A
			NC	LM6-2002B

Output voltage drop DC/AC	DC(NPN PNP)<3V, AC<10V
Consumption current	DC<15mA, AC<10mA
Standard detected object	881(A3 iron)
Repeated precision	0.01
DC/AC frequency	500Hz
Working environment temperature	-25ºC~+75ºC
Insuloation resistance	>=30MΩ
Shell material	Stainless steel
Protection grade	IP67

Inductance type

LM5 LM6 LM8 LM8-T LM12 LM12-T LM18 LM18-T LM30 LM30-T LMF1 LMF2 LMF3 LMF11 LMF37 LMF340 PR08 PR12 PR18 PR30 E2E-2 E2E-X4 E2E-X5 E2E-X8 E2E-X10 E2E-X18

Capacitance type

CM12 CM18 CM30 CMF37 E2K

Hall type

SM8 SM12 SM18

Mimic linear type

XM12 XM18 XM30 XMF37 XMF38

Ultrasonic type

UB400 UB500 UB1000 UB1500 UB2000

Safety explosion-proof type

AM8 AM12 AM18 AM30

Reed type

TCS1-E TCS1-F

Photoelectric type

G12 G15 G16 G18 G30 G50 G63 G139

Color mark and Area secure type

BZJ-211 BZJ-311 BZJ-411 BZJ-511 KS-C2 Z3N-TB22 GM20 GM40
