Inductive Short Cylinder Type Proximity Switch (LJM30 Series)

Name: Inductive Short Cylinder Type Proximity Switch (LJM30 Series)
Brand: all-electronics-online.com
SKU: 694524335
Availability: InStock
Rating: 4.9 (83 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR
Min Order:	1/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	LJM30
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Diameter And Length:	Diameter: 30 Mm; Length: 50 Mm
Working Environment:	Temperature: -25~+75centigrade
Working Power:	DC6-36V; AC90-250V
Detected Object:	Metal(Iron, Steel, Copper etc.)
Output:	Switching Sensor
Usage:	Position Sensor
Theory:	Magnetic Sensor
Material:	Brass-Nickel Plated&Heat-Resisting ABS

Product Description

Description

Proximity switch is one of position switches. When it operates, no need to make a mechanical
contact. It is also called no contact switch. As soon as the detected object approaches to the
surface of the sensor distance range, It begins to act with no contact, no pressure form, then
drive AC or DC electrical or computer equipment to provide control instructions.
C. Lin brand proximity switches covers: Inductive proximity switches, Capacitive proximity switches,
Hall sensor, photoelectrical sensors. They are widely used in machinery, texitle, metallurgy, tobacco,
railway, war industry and so on.

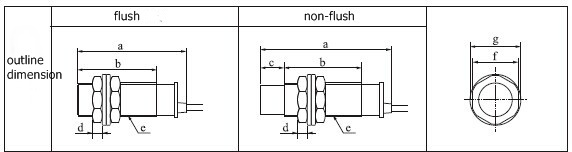

Outline Dimension

Switch Category			Short Cylinder Type Inductive Proximity Switch
Outward Appearance Code			LJM30
Mounting Mode			Flush	Non-flush
DC6-36VDC	Three-Wire NPN Output	NO	LJM30-10N1	LJM30M-18N1
		NC	LJM30-10N2	LJM30M-18N2
		NO+NC	LJM30-10N4	LJM30M-18N4
	Three-Wire PNP Output	NO	LJM30-10P1	LJM30M-18P1
		NC	LJM30-10P2	LJM30M-18P2
		NO+NC	LJM30-10P4	LJM30M-18P4
	Two-Wire DC Output	NO	LJM30-10D1	LJM30M-18A1
		NC	LJM30-10D2	LJM30M-18A2
AC90-250V	Two-Wire AC Output	NO	LJM30-10A1	LJM30M-18A1
		NC	LJM30-10A2	LJM30M-18A2
Detection Distance			10mm± 15%	18mm± 15%
Output Voltage Drop DC/AC			AC: lower than 7V; DC Two-wire output: lower than 5V; DC Three-wire output: lower than 1.5V
Comsumption Current			NPN, PNP, DC Two-wire output: 8mA/12V, 15mA/24V; AC: AC Two-wire output: below1.7mA
Standard Detected Object			Iron30301mm	Iron54541mm
DC/AC Response Frequency			DC: 0.4KHz; AC25Hz	DC: 0.1KHz; AC25Hz
Working Temperature			Temperature: -25- +75centigrade(no ice), Humidity: 35-95%RH
Insulation Resistance			above 50MΩ (DC500V)
Protection Grade			IP65-IP67

Xinling Electrical Co., Ltd. China was established in 1990. Now we have 10 sub-branch companies, each company is responsible for manufacturing different kinds of electrical products, We have more than 100 cooperation units, and 100 direct distributors, 1000, 000 square meter factory area and 1600 stuffs.

Our company mainly produces mini relay, time relay, solid state relay, electric power relay, temperature controller, kilowatt-hour meter, circuit breaker, AC contactor and some other electrical component which are the first choice of electric net reconstruction. With perfect management system and technical advancement, it strengthens the management of enterprise and promotes product quality. Our company takes prospering national industry as its own responsibilities, works hard developing economy of China to promote enterprise level.

The enterprise has gained ISO9001 and RVA Quality System Attestation(Netherlands), and its products have gained CE attestation (European Community), and UL Attestation and CCC Safety Attestation in China successively, and have been insured by PICC, besides, their quality has been ensured by quality "three guarantee". As a result, its products are sold well in more than 30 provinces and cities of China and are exported to Europe, America, Middle East, South-Eastern Asia, Africa and so on 20 countries and districts. Successively, the enterprise has been given the titles of Star Enterprise of China, Financial AAA Grade Enterprise, Gold Client of Agriculture Bank of China, and Credit Enterprise of Product Quality.

Xinling is ready for creating a magnificent tomorrow together with you!
