| Prod Model: |
JT3051 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Power Supply: |
DC12-32V |
| Mounting Hole Pitch: |
55.14mm |
| Measuring Pressure: |
Gp, Dp, Micro Gp |
| Dimension: |
Diameter=61mm |
| Operating Temperature: |
-30°c ~ +70°c |
| Stability: |
0.2%/Year |
| Output Resolution: |
1ua |
| Output Signal: |
Analog and Digital |
| Measuring Medium: |
Liquid, Gas, Vapour |
Product Description

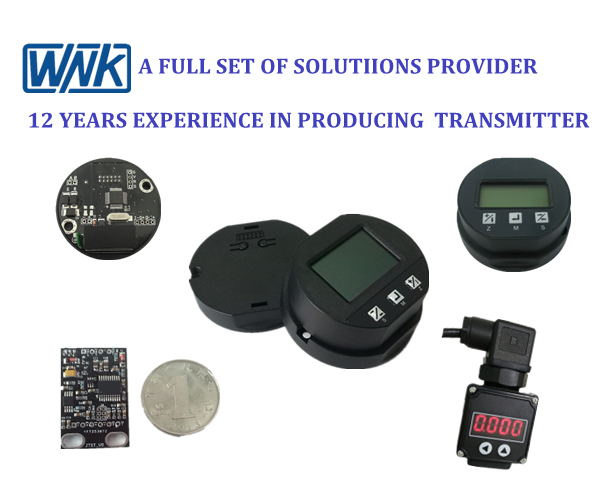

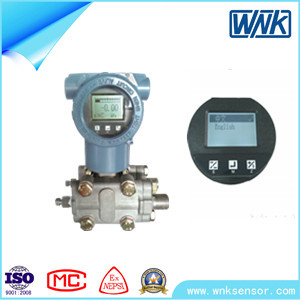

JT3051 Diezoresistive Intelligent Circuit BoardJT3051 Diezoresistive Intelligent Circuit Board replaced the original 4~20mA analog board. With the main body of Microcontrollers CPU, JT3051 is capable to do logical operation and programming. It combines analog and digital circuit in one machine, so is able to output analog signal as well as digital signal. Parameters configuration and compensation of transmitters can be done by buttons on LCD module and internal debugging program. JT3051 provides constant current excitation way for sensors, supporting standard diffused silicon, piezoresistive ceramic, single crystal silicon and level sensors. It is suited for 3051 housing.
Features - Diffused Silicon Circuit Board:1. Easy adjusting by buttons: on-site span changing by LCD module buttons free from standard pressure source
2. High accuracy: for intelligent board, AD accuracy > 20 bits, DA accuracy > 16 bits
3. Electrical isolation: > 1500VDC
4. Good stability: The complete machine linearity better than 0.2%, temperature
5. Data backup and restore
6. Strong capability for anti-disturbance: Leading military-grade hardware and software anti-disturbance technology
7. Excellent price-performance ratio: good performance with heading circuit board provides economical solutions
Technical Parameters - Diffused Silicon Circuit Board:
| Supply power | DC12-32V (DC 24V is suggested) |
| Matching sensor | standard diffused silicon, piezoresistive ceramic, single crystal silicon and level sensors |
| Sampling rate | >20times/s |
| Displaying and bits | LCD with backlight, displaying 5 bits, and 4 decimal places |
| Displaying interface | English or Chinese,displaying pressure, temperature/current/ percentage(interactive display) and 0-100% analog displaying |
| Output resolution | 1uA |
| Temp. compensation accuracy | -30~70ºC complete machine accuracy is better than 0.5% (including accuracy of sensor) |
| Linearity accuracy | Complete machine linearity is better than 0.2% (Multi-point calibrating is available as required) |
| Stability | 0.2%/Year |
| Anti-disturbance | Power isolation, signal isolation (magnetic isolation) |
| Range ratio | 10:01 |
| Circuit protection Measurement | surge current protection, Reverse Power Protection |
| Circuit design | Intrinsic safety |
| Isolation range | >200M |
| Communication Protocol | Private protocol |
| Adjusting method | by buttons on LCD head, program on pc or communicator |
| Dimensions | OD=61mm, Mounting hole pitch=55.14mm (suited for pressure and level transmitter in 3051 housing) |
| Motherboard buttons operation | reset, lower range calibration(zero drift under pressure source), upper range calibration (full scale calibration) |
| LCD head buttons operation | changing span units, decimal place, output features, changing damping time, currant fixing, write-protection,factory reset and zero clearing |
