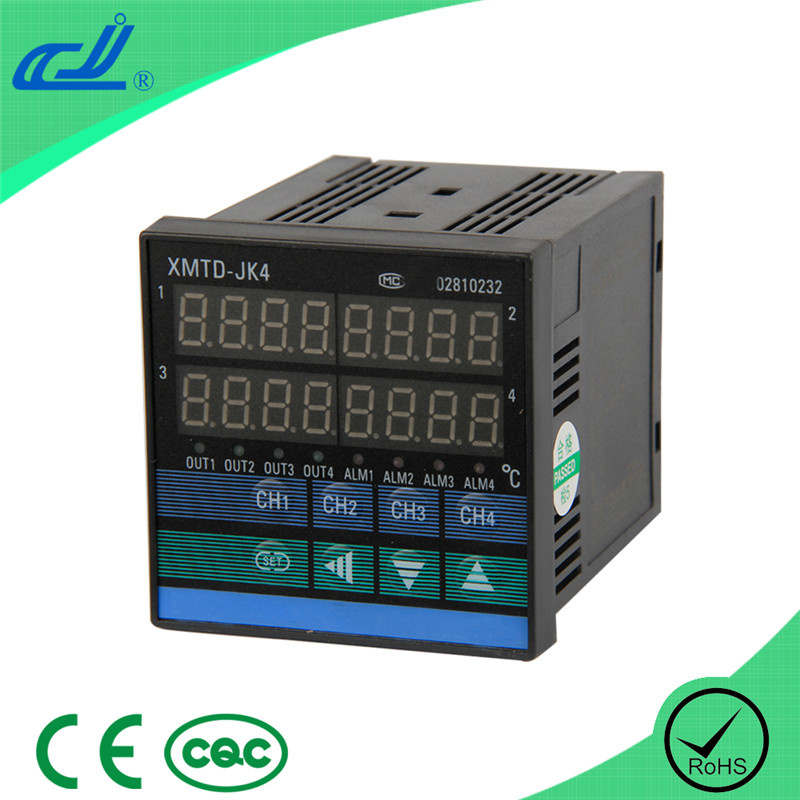

Industrial 4-Channel Temperature Controller (XMTD-JK408)

Name: Industrial 4-Channel Temperature Controller (XMTD-JK408)
Brand: all-electronics-online.com
SKU: 714175942
Availability: InStock
Rating: 5 (70 reviews)

Price:	US $ 67/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	XMTD-JK408

Product Description

I.Summary
XMT*JK408 temperature controller can connect four sensors synchronously and conveniently, diminish the instrument's volume. It has a separate auto-tune mode and PID parameter function with more precision and more reliability in whole machine control.

II.Primary technical standard
1.Input signal: CU50(-50.0~150.0)\PT100(-19.9~600.0)\K(0~1300)\
E(0~700.0)\J(0~900.0)
2.Accuracy: ± 0.5%F. S± 1byte
3.Output method: Relay AC220V 3A(resistance load)
4.control mode: Difference control-on/off and PID control
5.Input power: AC85~242V 50/60Hz
6.Environment Temperature: 0 to 50, Humidity: ≤ 85%RH
7.Overall size and installation hole (mm):XMTD: 72× 72× 110; 68× 68

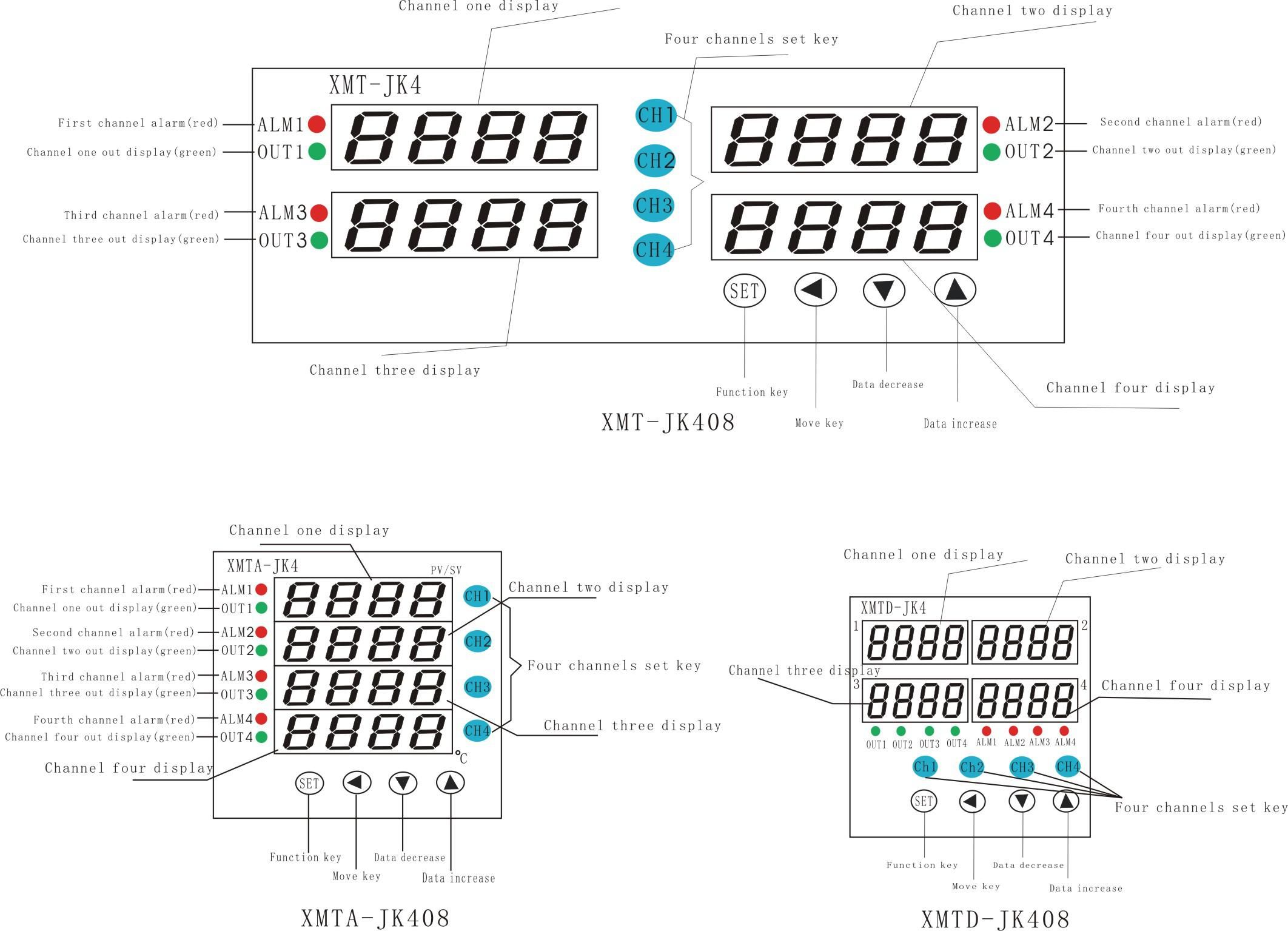

Panel board instruction(consult)

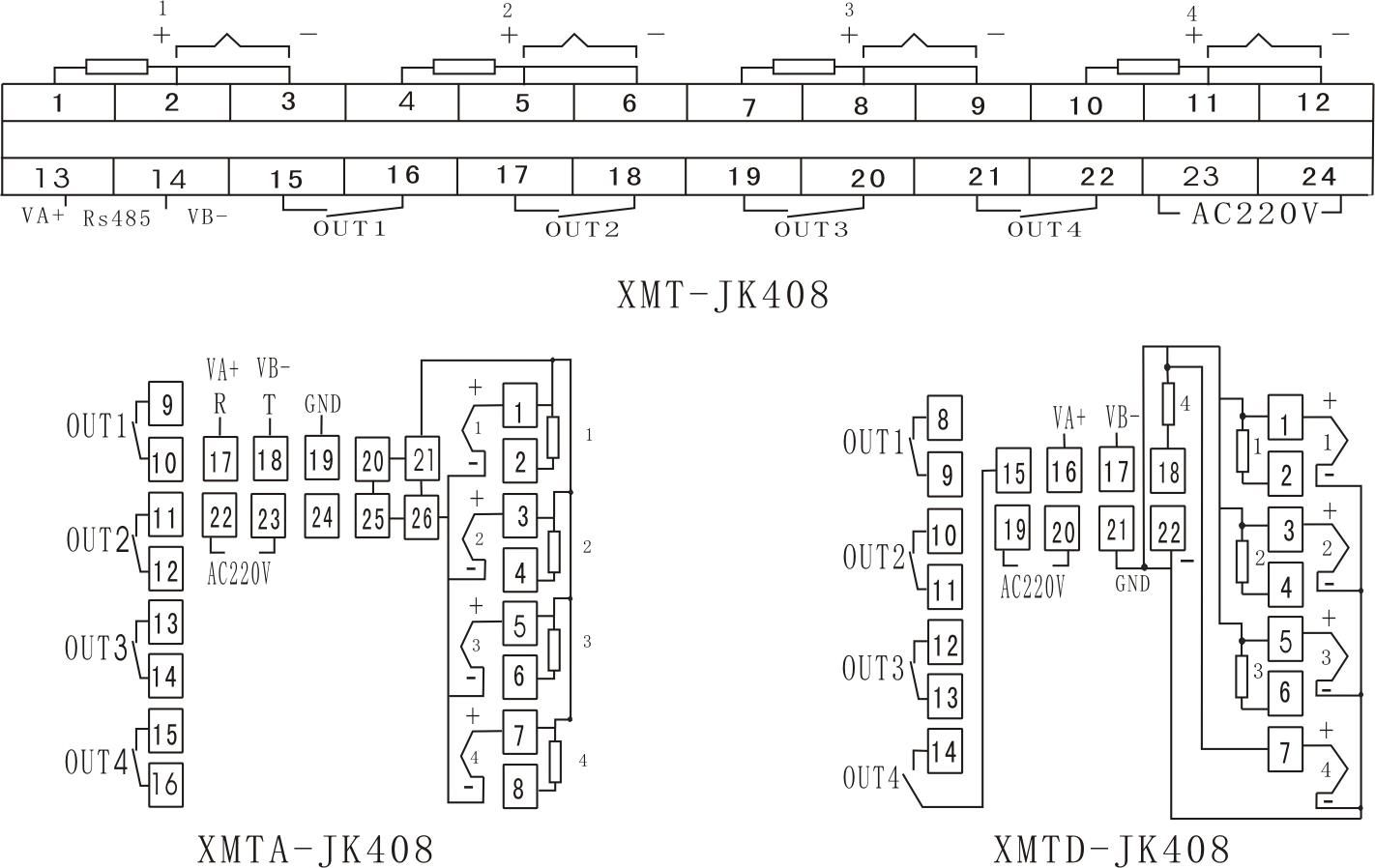

connection scheme(consult)
