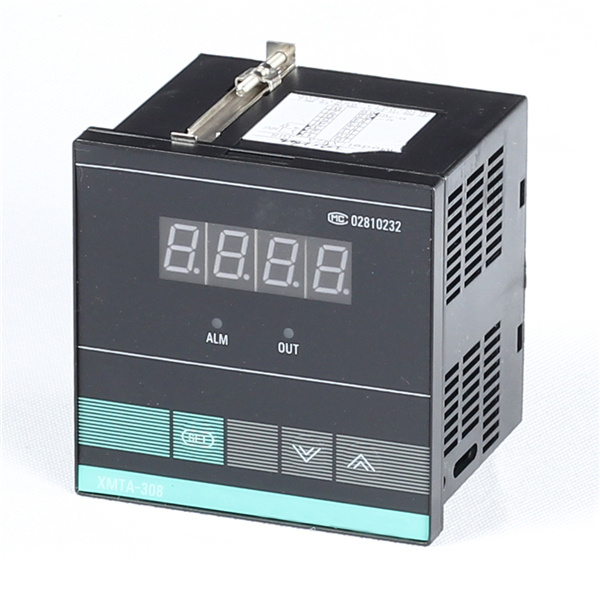

Industrial Automation Digital 4-LED Display Temperature Controller (XMTA-318)

Prod Model:	XMTA-318
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:	96*96
Control Type:	Digital
Type:	Temperature Controller
Control Method:	Electronic Type
Usage:	Temperature Control

Product Description

Specifications

Temperature controller
Conrtol method: ON/OFF; PID
Input signal: CU50; PT; K; E; J; T
Power supply: 85-242V; 50/60HZ


XMT*308 series temperature controller are intelligence single row 4-LED display, and include on/off, PID

control, including with parameter of self-setting function and can input multi-signals.

This temperature meter are operated with 3-keys, allowing an easy inputting.

Main Technical Indexs

1) Measurement deviation: Class ± 0.5F. S± 1, additional cold end compensation

Deviation± 1oC

2) Input signal: CU50, PT100, K, E, J, T (one meter can be compatible)

3) Relay output contact capacity: 7A (resistance load)

4) Driving solid relay signal output: Driving electric current > 15mA, voltage >12V, period is 2s

5) Sampling period: 0.5s

6) Power: 85~242V, 50HZ

7) Work environment: Temperature 0~50.0oC, relative humidity≤ 85%, without corrode and strong electric radiation.

8) External dimension
160 x 80 x 85 Installation hole 156 x 76
96 x 96 x 90 Installation hole 92 x 92
72 x 72 x 90 Installation hole 68 x 68
48 x 96 x 90 Installation hole 44 x 92
96 x 48 x 90 Installation hole 92 x 44
48 x 48 x 90 Installation hole 44 x 44
80 x 160 x 850 Installation hole 76 x 156
80 x 120x 35 Installation hole 68 x 68

 Model Sense

           XMT ___   3  ___   8   ___
                           1     2    3    4     5
1:Size
Empty:  160×80×85   Installation hole152×76
 A:  96×96×80   Installation hole 92×92
D:  72×72×90       Installation hole 68×68
E:  48×96×75   Installation hole 44×92
F:  96×48×75      Installation hole 92×44
G:  48×48×100  Installation hole 44×44
S:  80×160×85     Installation hole 76×152
C:  76×34×72    Installation hole 72×24

2.operation display method
 3-key gentel push-switch setting,double row digital display,have PID adjustment

3: an additional alarm
Blank or 0: indicates no alarm
1: upper limit touch alarm
3: upper and lower limit touch alarm

 4Input signal classification: ' 8' input signal can interchange free

5:suffix   emptyrelay output           G: solid state relay output
A: mono-phase over zero trigger output   C: 0~5V or 1~5V voltage output

IV,Technical Indexes

Series		Attention	Name	Setting range	Remark	Ex- Factory
	0	-	Appointed data	Determined  by and	Pressorfor 3 second and set the temperature setting value  you need	-
First                   Menu	1	AL	High-limit alarm	Determined  by and	-	Random
	2	SC	Measurement deviation	-20.0~20.0	Measuring value can be modified through increasing or decreasing this data.	0
	3	P	Proportion time	0~99.9~200	When the P↑,the proportion and differential function↑;If the P↓,the proportion and differential function↓ When P=0,the meter is ON/OFF control.	15.0
	4	I	Calculus time	0~3000	It's used to adjust static difference. To increse it ,the static difference will bereduced,but when it is too high,the static difference will drift instability.	240
	5	d	Differential time	0~200	It's used to adjust the overshoot in the  First time,to increase it can reduce the overshoot.	30
	6	t	Control period	2~ 120S	Control output period	20
	7	Hy	Main control by drop in level	0.1~50.0	It only controls at ON/OFF	1.0
	8	At	Parameter setting itself	on/off	off-shut itself function; on-open itself function Select 'on'only can adjust for one time,and then turn back to 'off'	OFF
	9	Loc	Electronics lock	0~50	Loc=0 all the parameter can be revised Loc=1 only the appointed data can be revised	0
Second               Menu	9	Loc	Electronics lock	0~50	idem	0
	10	Sn	Input specification	-	Input type     Max. temperature range CU50      -50~150ºC/-90~270ºF,PT100   -199~600ºC/-199~1080ºF, K        -30~1300ºC/-54~2340ºF, E         -30~700ºC/-54~1260ºF, J         -30~900ºC/-54~1620ºF, T        -199~400ºC/-199~720ºF, S        -30~1600ºC/-54~2880ºF	K
	11	dP	point	0~1	dP  =0 display no point, dP  =1 display  point	0
	12	dIL	Set lower limit	dIL≤dIH	Temperature range refer to Sn	0
	13	dIH	Set upper limit			400
	14	CF	ºC or ºF select	-	C:ºC F:ºF	C
	15	PF	Filt modulus	0~50	It is the software filter constant of  measurement sampling.The constant ↑,the measurement antijamming capability↑,but the measurement speed  and system response time ↓	20
