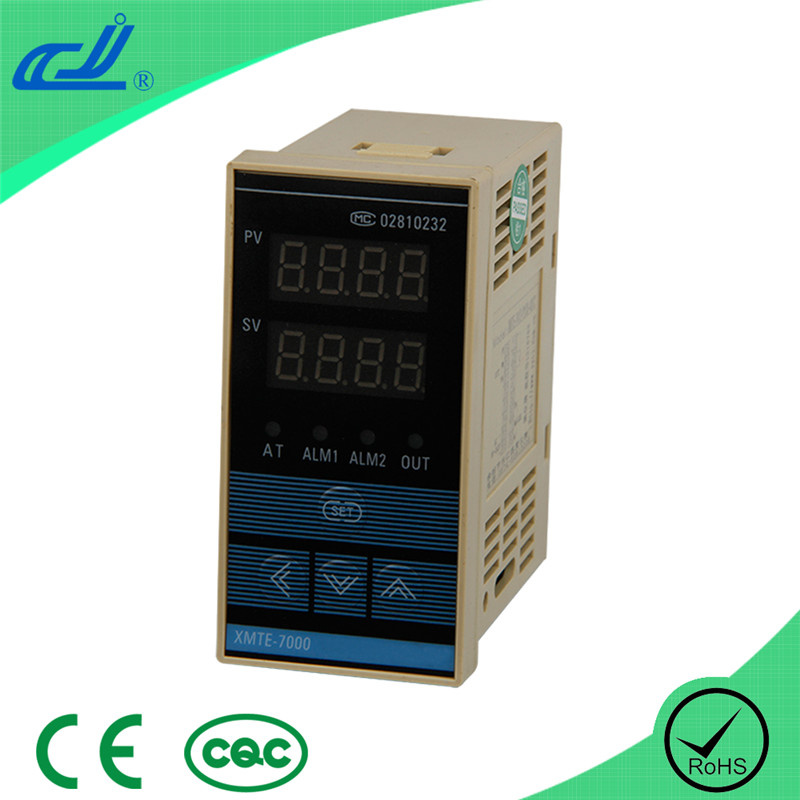

Industrial Automation Digital Temperature Controller (XMTE-7000)

Name: Industrial Automation Digital Temperature Controller (XMTE-7000)
Brand: all-electronics-online.com
SKU: 714162642
Availability: InStock
Rating: 4.8 (122 reviews)

Price:	US $ 19.5/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	XMTE-7000
Size:	48*96
Type:	Temperature Controller
Control Type:	Digital
Control Method:	Electronic Type
Usage:	Temperature Control

Product Description

Temperature controller
Intelligence dual row 4-LED diSplay
Operated with 4-key
Control method: On/off, automatic regulation

XMT*7000 series temperature controller are intelligence dual row 4-LED display for displaying the measured value and set value respectively. The temperature meter are operated with 4-keys, allowing an easy inputting. The available control methods include on/off, 2-on/off, PID and automatic regulating and setting controls.

I.Product characteristic
The core of the product adopts the up-to-date microrocessor chip.
Red and green double-bank nixie tube display the measured value and setting value.
Easy operation in the four/three keys, & fast setting in the parameter.
Control in high precision's PID intelligent and two or three bit location check program.
Upper-bank display the measured value, & bottom-bank display the setting value under normal working conditions.

II.Primary technical standard
1.Input: Thermocouple: K,E,J,S
Thermal resistance: PT100 , CU50
2. Range: K(0~400ºC,0~1300ºC),E(0~400ºC,0~800ºC),J(0~1000ºC),
         S(0~1600ºC),PT100(-100.0~200.0ºC,0~600ºC),CU50(-50.0~150.0ºC)
3.Measure error: ±0.5%F.S±1byte
4.Silicon control trigger signal(over zero): Range≥3V, Width≥40us
5.The output contact potential of the relay: impedance load AC220V  5A
6.Input power: AC85~242V   50/60Hz
7.Environment:  Temperature: 0 to 50ºC,  Humidity: ≤85%RH
8.Size: XMT:160×80×125mm  hole: 152×76;  XMTA:96×96×85mm  hole: 92×92;
    XMTE:48×96×85mm   hole: 44×92;  XMTF:96×48×85mm   hole: 92×44;
    XMTD:72×72×85mm   hole: 68×68;  XMTG:48×48×110mm   hole: 44×44;

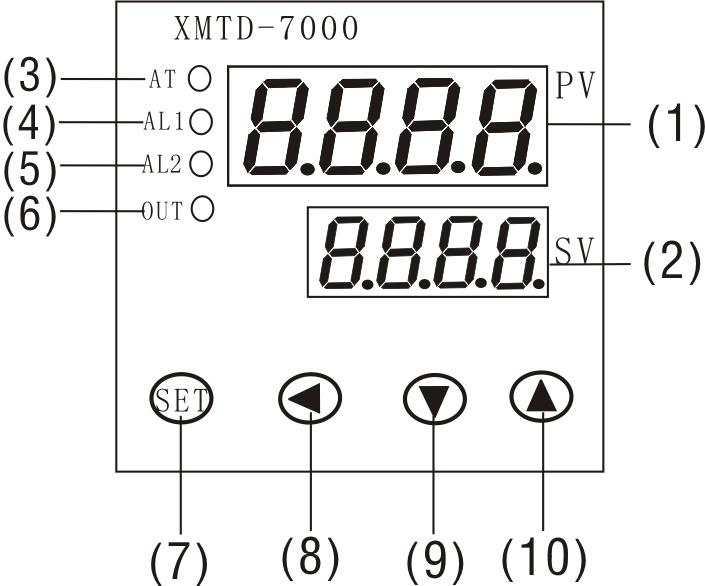

Name and functions of the sections(consult)

1)PV display
Indicates the process variable (PV) with a red LED.
(2)SV display
Indicates the setting value (SV) with a green LED.
(3)AT indicator
When auto tuning function is ON, a green LED lights.
(4)ALM1 indicator
When ALM1 output is ON, a red LED lights.
(5)ALM2 indicator
When ALM2 output is ON, a red LED lights.
(6)OUT indicator
When OUT is ON, a green LED lights.
(7)Mode key (SET)
Switches the setting mode and registers the setting value and selected value.
(Setting value and selected value are registered by pressing the mode key.)
(8)Data shift key (<)
(9)Decrease key (∨)
Decreases numeric value of the setting value
(10)rease key (∧)
Increases numeric value of the setting value.

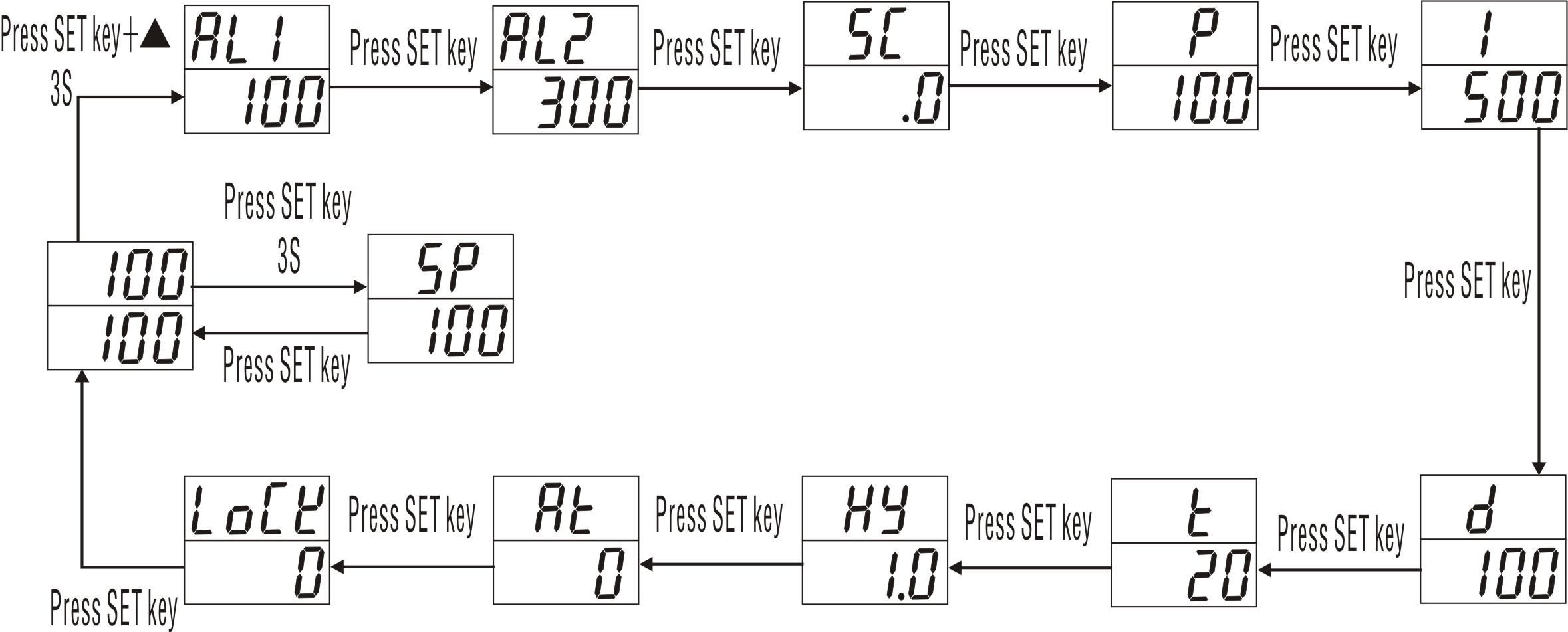

Display Status(consult)

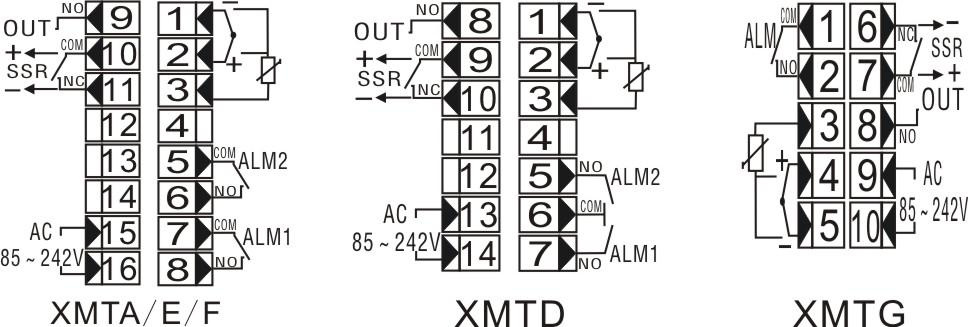

Connection figure(consult)

Yuyao Gongyi Meter Co., Ltd And Its Subsidiary, Yuyao Changjiang Temperature Meter

Factory, Have Been Devoting Themselves To The Development And manufacturing Of

Industrial Process Automation Controller Instruments Since 1995. Through Decades Of

Improvement, Gongyi Now Is A Top One Chinese Instrument Manufacturer, Claiming A

Large Domestic And Overseas Market Share, sales of CJ temperature controller.

Main products: Temperature controller, humidity controller, electrical instrument, time relay, paperless recorder, silicon-controller, voltage regulator and all kinds of temperature sensor, humidity sensor, temperature transmitter and safety barrier. All the instruments have the function to communicate with computer, and provide the computer industrial control interface. (DCS System)

"CJ" series Temperature Meter has been ISO9001-2008 quality system' S grant, CE and kinds of certification, and has international facture calculate appliance' S license ( CMC 02810232 )
