Industrial Cartridge Resistance Heater Element

Name: Industrial Cartridge Resistance Heater Element
Brand: all-electronics-online.com
SKU: 727252322
Availability: InStock
Rating: 4.7 (66 reviews)

Price:	US $ 3-20/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T,Western Union,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	JY-CH006
Voltage:	Customized
Wattage:	Customized
Name:	Cartridge Heating Element
Logo Mark:	Make as Customer Required
Sheath Material:	SUS304, 321, 316, 310
Resistance Tolerance:	+10%, -5%
Max Operating Temp:	800 Degree
Heat Transfer Surface:	Tubular Heat Exchanger
Principle:	Heating Resistance Wire Heating
HS Code:	85168000

Product Description

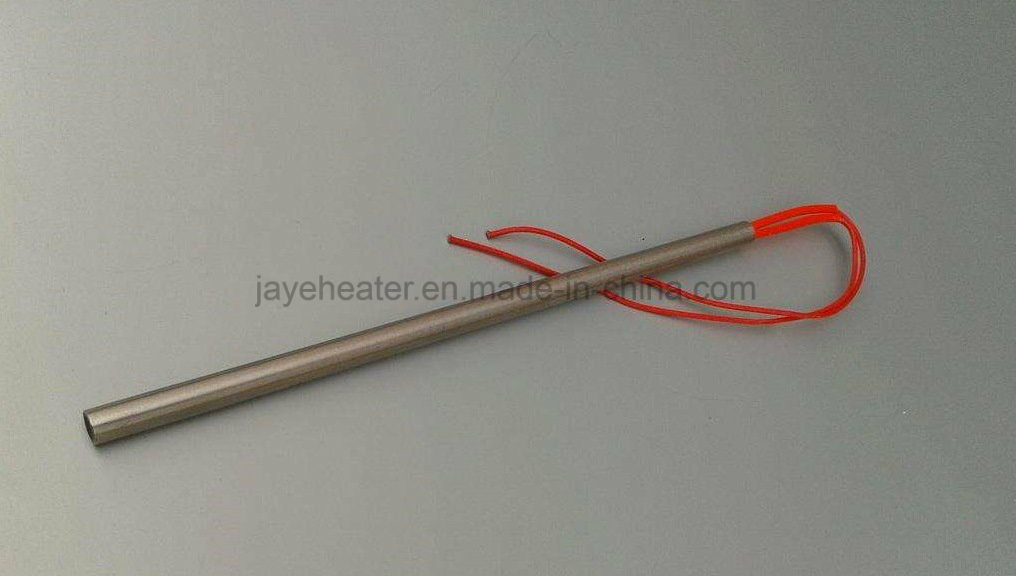

Industrial Cartridge Resistance Heater Element

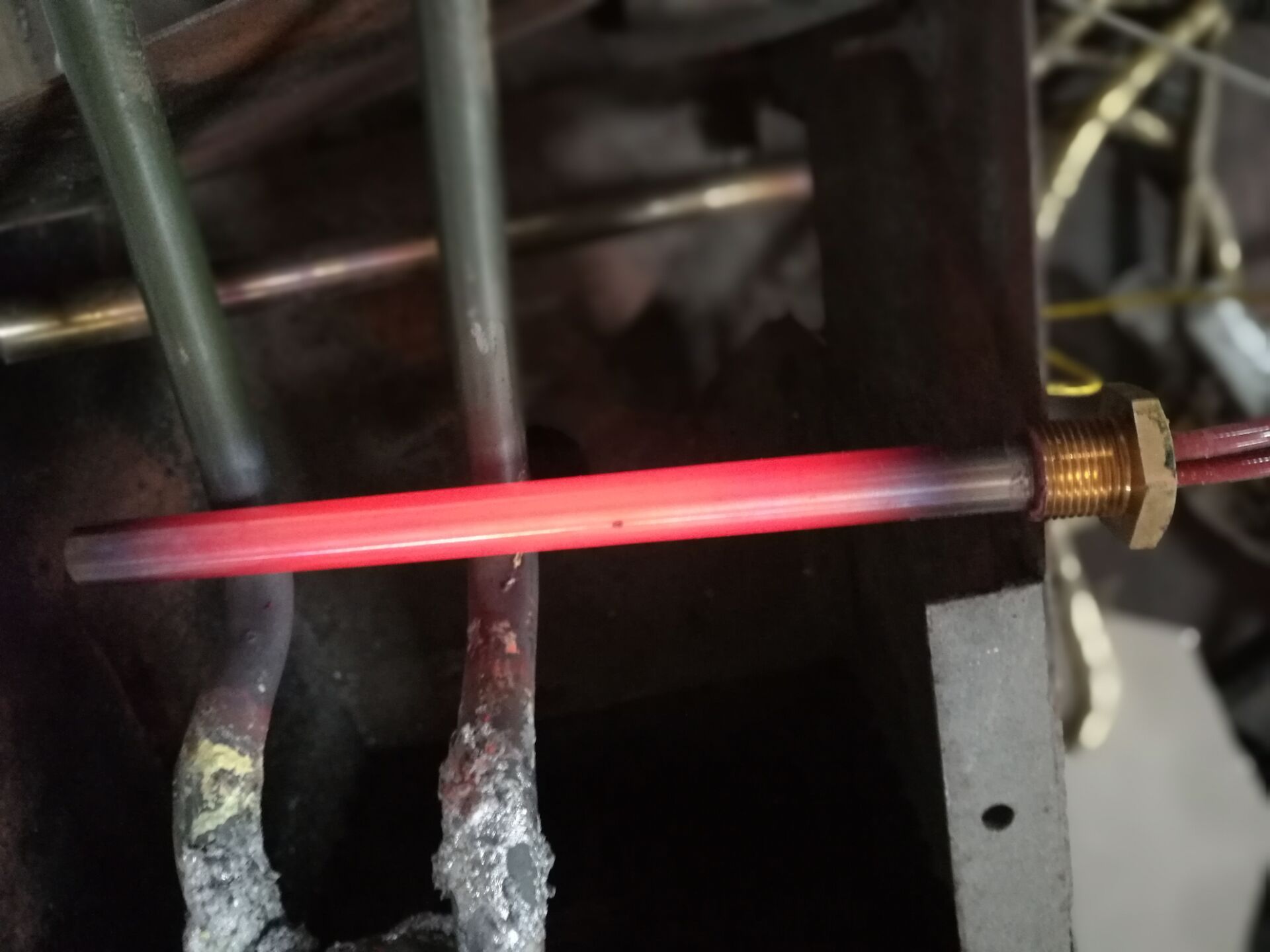

Cartridge heaters is consist of a cylindrical stainless steel tube and thus provide a high corrosion prevention. The heating wire inside which is wound onto a ceramic core. The number of coils varies depending on the power. and provide a great uniform distribution of heat, which considerably increases the long life of the heater as well as prevents the oxidation of the heater wire even at high temperatures .The solids, liquids, and gases need to be heated by cartridge heater, transmit heat quickly by conduction if the producer of the heat (the cartridge) is in direct contact with the heat sink (any solid, liquid, or gas). Widely used for manufacturing plastic and rubber parts in the car industry or in the food processing industry, etc they are also commonly found in the chemical, electronics, medical equipment, packing and nuclear industries.Apart from our broad standard range we also develop and manufacture cartridge heaters according to your special demands.

Recommended for temperatures up to 750°C

All Cartridge Heaters are available with a built in Thermocouple Type J or K

Sheath Material	SUS 304/316/ Incoloy 840
Spirals	Nickel - Chrome
Insulation	Magnesium Oxide Powder
Voltage Supply	12V to a maximum of 480V
Maximum Temperature	750 °C
Resistance Tolerance	+ 5% -10%
Wattage Tolerance	+5% - 10% (closer tolerances are available upon special request)

When ordering Cartridge Heaters, please specify the following information :-

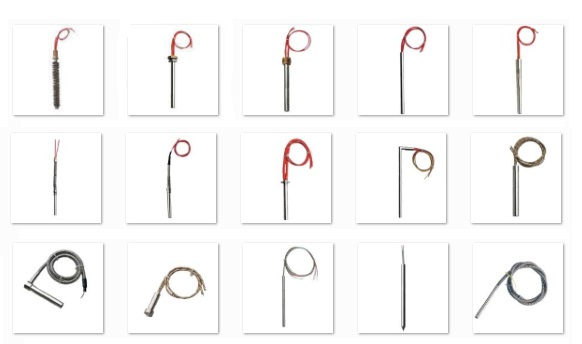

1.Type of Cartridge Heater ( please refer to Termination Options ).
2.Diameter of Cartridge Heater.
3.Overall length for a straight Cartridge Heaters.
4.Wattage & Voltage
5.Lead type ( glass fibre / PTFE ) & lead length.

Element component
    1. High-grade nickel chromium resistance wire,
    2. MgO core,
    3. Stainless steel tube
    4 Built in cable, or swaged in
• Special sizes, wattages, and materials are available upon request;
• Custom-designed to meet your specifications.
• Pin leads are available

Structure:

Jaye industry Co., Ltd has been in the heating elements industry since 2009, and is one of the most trust worthy and professional supplier for various type of heating elements, spare parts and thermostats in China. Our products Mainly include the Home heating elements, industrial heating elements, Flexible silicone heating elements, spare parts and thermostats etc.

'Customization' mixed with the highest grade of material and workmanship is the kind of heater that JAYE industry will provide. This is where our reputation lies and we will continue to provide only the best products to our customers.
