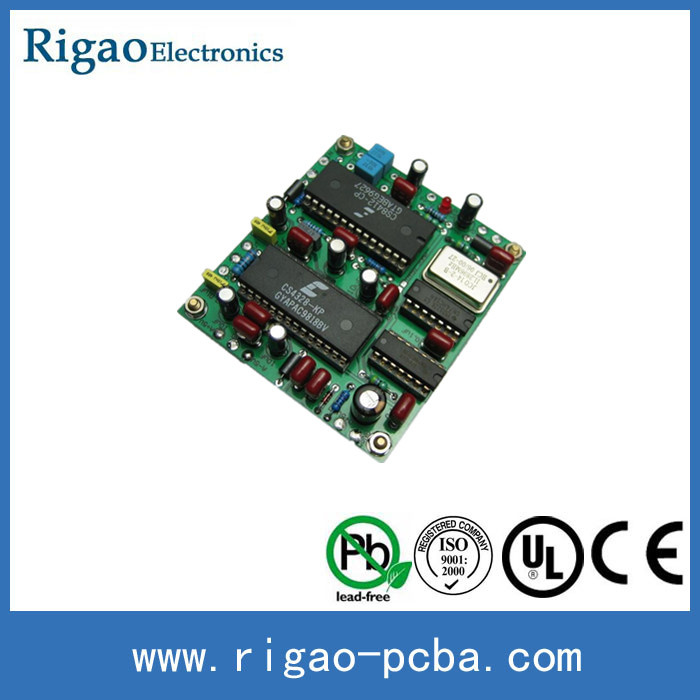

Industrial Control board PCB Assembly
Rigao Electronics Co, . Ltd is an experienced PCB and PCBA manufacturer in Shenzhen, China. After several years' developing and improving, our company establishes our main business in three principal areas-Printed Circuit Boards, PCB Assembly and Components Procurement. From prototype to mass production, we are able to gurantee a complete service with technical back up, offering a cost advantage and continuity of supply.
For making PCB Assembly(PCBA), customer just need to provide us with Gerber file and bill of material. Components procurement is one of the featured service we can provide. IC, battery, fuse, LCD, transformer, LED Diode, connector, sensor, we could purchase all these electronic parts to our customers.
Our aim: High quality, low cost & fast delivery for PCB and PCB Assembly.
Verification: UL, ISO9001: 2000, RoHS
Capability of industrial pcb
1 | Layer | 1-22 layer |
| 2 | Material |
FR4, CEM1, Aluminium Base, Cooper Base,
High frequency material |
Thick copper foil,94-V0 (HB), PI Material, Roger,
High TG:SL S1000-2,ITEQ:IT180. |
3 | Board thickness | 0.2mm-7mm |
| 4 | Max.finished board side | 610mm*1200mm |
| 5 | Min.drilled hole size | 0.25mm |
| 6 | Min.line width | 0.075mm(3mil) |
| 7 | Min.line spaceing | 0.075mm(3mil) |
| 8 | Surface finish/treatment |
HASL,OSP,Immersion tin,Immersion Gold |
Immersion Silver/Gold Finger ,Gold Plating,
Selective OSP Immersion Gold |
9 | Copper thickness | 0.5-4.0oz |
| 10 | Solder mask color | green/black/white/red/blue/yellow |
| 11 | Inner packing | Vacuum packing,Plastic bag |
| 12 | Outer packing | Standard carton packing |
| 13 | Hole tolerance | PTH:±0.076,NTPH:±0.05 |
| 14 | Profiling Punching | Routing,V-CUT,Beveling |
15 |
Assembly Service |
Providing OEM service to all sorts of printed
circuit board assembly |
Our PCBA capability and services: SMT/THT/DIP.
1. Component Purchasing Service
2. SMT assembly and Through hole components insertion
3. IC pre-programming / Burning on-line
4. Function testing as requested
5. Complete Unit assembly (which including plastics, metal box, Coil, cable inside etc)
6. Packing design
PCB/PCBA Description:
1. Singlesided PCB, double side PCB & multilayer PCB with competitive price, good quality and excellent service.
2. FR-4, FR-4 High TG, CEM-1, CEM-3, Aluminum base material.
3. HAL, HAL lead free, Immersion Gold/ Silver/Tin, OSP surface treatment.
4. Printed Circuit Boards are 94V0 compliant, and adhere to IPC610 Class 2 international PCB standard.
5. Quantities range from prototype to medium and batch production.
| Industrial Control PCB Assembly Capability |
| | | Content | General | Advanced |
| 1 | TH components: | Wave-soldering | NA |
| 2 | Min. Chip Placement: | 0402 | 0201 |
| 3 | QFN Lead Pitch: | 0.4mm | 0.3mm |
| 4 | Min. IC Pitch: | 0.4mm | 0.3mm |
| 5 | Maximum BGA Size: | 50mm X 50mm | 74mm X 74mm |
| BGA Ball Pitch: | 0.4mm | 0.3mm |
| 6 | Max. PCB Size: | 350mm X 400mm | 410mm X 600mm |
| Foot Pin: | SO, SOP, SOJ, TSOP, TSSOP, QFP, BGA and U-BGA
|
PCB/PCBA Features:
Dimension: 92.5mm*36mm
Base Material: 0.1mm Cu/25um ADH/25um PI+25um ADH/35um Cu/
20um ADH/ 35um Cu/ 2525um PI+25um ADH/
25um ADH/ 0.1mm Au
Thickness: 1.6mm
Line Width/Space: 0.15mm/0.15mm
Surface Treatment: ENIG: Au: 0.03-0.09um, Ni: 2-6um
Minimum via diameter: 0.2mm
The smallest hole: 0.35mm
Outline Tolerance: +/-0.2mm.
Shenzhen Rigao Electronics Co., Ltd. is a newly company which founded in 2008. At beginning we were only focus on manufacturing Printed Circuit Boards. But now we has become a rapidly growing worldwide provider of solutions in three principal areas Printed Circuit Boards, PCB Assembly and Components Procurement. We are dedicated to building solid partnerships and providing flexible solutions to enable our customer's success.
As an experienced PCB and PCBA manufacturer, we provide prototypes, small volume, medium volume, and high volume projects. We are able to guarantee a complete service with comprehensive technical backup, offering acost advantage and scheduled delivery.
Our main services include offering
Rigid PCB (up to 64 Layers)
Flexible PCB/FPC (1~6 Layers)
Rigid-Flex (3~18 Layers)
Aluminum-based PCB (1~6 Layers)
High Density Interconnection/HDI PCB
High frequency material PCB
DIP, COB, SMT assembly Services
Components Sourcing
We have since successfully completed over 5, 500 projects and have nearly 300 satisfied repeat customers. Our customers are from over 30 countries in various industries, including computer, home appliances, consumer products, telecom, scientific research institutes, etc.
Our manufacturing and quality control processes are ISO 9001: 2000 certified and conform to IPC-A600(PCB) and IPC-A610 (PCB Assembly) standards. All our PCB/PCBA are UL certified and RoHS compliant.
Our Principle is simple, "Act by heart, Make the best. "
Our strength is distinct, "Years of experiences in PCB and PCBA field"
Our Goal is achievable, "To be the most reliable supplier of PCB and PCBA. "
Our orientation is clear, "Focus on prototypes and low to medium volume business "
Your trust and support would be a solid back-up for our business. We sincerely hope to provide you with high-quality products and satisfactory services.
We are look forward to working with you!
