Industrial Control Panels Enclosure with Double Doors

Name: Industrial Control Panels Enclosure with Double Doors
Brand: all-electronics-online.com
SKU: 772994325
Availability: InStock
Rating: 4.8 (71 reviews)

Price:	US $ 100-800/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	100/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	PR9D
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Material:	Cold-Rolled Sheet Steel
Surface Finish:	Epoxy Thermosetting Powder Coating
Color:	Ral 7032/Ral 7035/Customize
Type:	Distribution Metering Box
Structure:	Protection
Certification:	ISO9001:2008,RoHS
Application Range:	Electrical Distribution
Brand:	Prota

Product Description

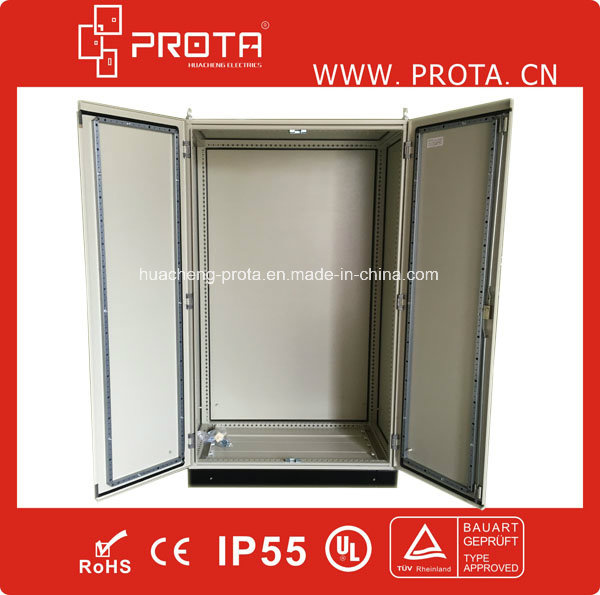

PROTA. Industrial Control Panels Enclosure(Double Doors)

Material	Cold rolled sheet steel
Thickness	Body&back panel&side panel:1.5mm
	Galvanized mounting plate: 2.5mm
	Front door:2.0mm
Surface	The whole cabinet is phosphate coated and the exterior is epoxy thermosetting textured powder-coated
Color	RAL7032 (grey) RAL7035(light grey)
Protection degree	IP55 to EN60529 NEMA4

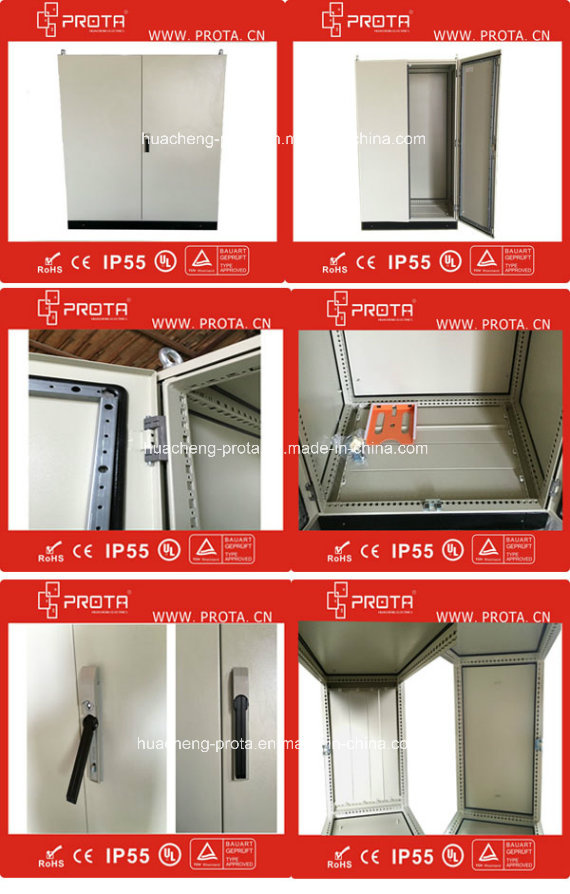

Feature

1.Double doors in both the left and the right side. The specific tube of the door strengthens system and brings higher durability for the door.

2.The rectangle frame not only intensifies the front door, but also could be used to install the electronic components.

3.The crossing-lock locks the front door with three points by up, middle and down.

4.The back and side plate is easily removable, and the back plate can be switched with the front door.

5.The foam PU sealing gasket inside the plates can stop the water and dust.

Selection Table

Model No.	H(mm)	W(mm)	D(mm)
PR9D 128/4	1200	800	400
PR9D 128/8	1200	800	800
PR9D 168/4	1600	800	400
PR9D 168/5	1600	800	500
PR9D 168/6	1600	800	600
PR9D 188/4	1800	800	400
PR9D 188/5	1800	800	500
PR9D 188/6	1800	800	600
PR9D 188/8	1800	800	800
PR9D 1810/4	1800	1000	400
PR9D 1810/5	1800	1000	500
PR9D 1810/6	1800	1000	600
PR9D 1810/8	1800	1000	800
PR9D 1812/4	1800	1200	400
PR9D 1812/5	1800	1200	500
PR9D 1812/6	1800	1200	600
PR9D 1812/8	1800	1200	800
PR9D 208/4	2000	800	400
PR9D 208/5	2000	800	500
PR9D 208/6	2000	800	600
PR9D 208/8	2000	800	800
PR9D 2010/4	2000	1000	400
PR9D 2010/5	2000	1000	500
PR9D 2010/6	2000	1000	600
PRD9D 2010/8	2000	1000	800

PROTA is a professional manufacturer, well-known of all kinds of distribution boxes in China, our products range includes: Metal wall mounting enclosures, top stainless steel enclosures, floor standing cabinets, knock-down cabinets, network cabinets, terminal boxes, MCB boxes, gland boxes, telephone boxes and so on.

As an ISO 9001 certified factory, Prota has produced enclosures IP rated enclosures from 55 up to 66, Our enclosures go through stringent quality control during in production and are picked by random for testing by our professional QC dept. All selected enclosures have passed RoHS test, got CE approval complying with EN62208 standard as well, furthermore, both the IP & RoHS certificates were issued by TUV lab in Shanghai China.

We have always insisted on follow the clients' needs, complied with the convenient, practical, safe and beautiful perspective of development and production since the establishment, so far we've well received favorable comments at home and abroad. We also undertake OEM, ODM production, welcome letter Call Advisory.
