Industrial Control Smart GOF Patch Jumper

Name: Industrial Control Smart GOF Patch Jumper
Brand: all-electronics-online.com
SKU: 701923142
Availability: InStock
Rating: 5 (41 reviews)

Price:	Negotiable/Piece
Trade Terms:	CFR,CIF,EXW
Min Order:	10/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Place Of Origin:	China(Mainland)
Transmission Medium:	Single-Mode
Structure:	SC
Number Of Cores:	Multi-Core
Ferrule Endface:	PC(',UPC)
Brand:	Huiyuan

Product Description

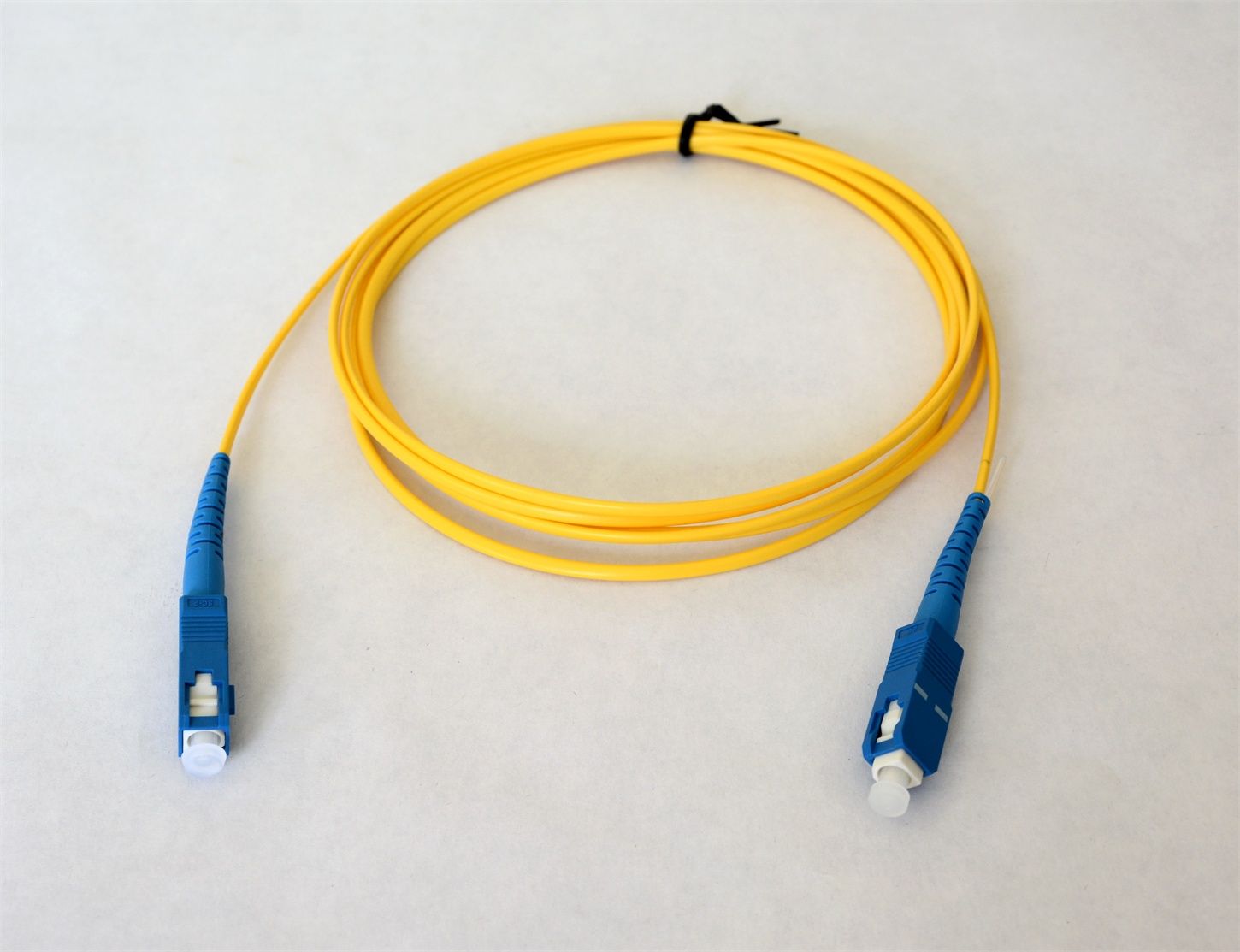

Industrial Control Smart GOF Patch Cord

1. Description

Smart GOF Jumper is used for tracing the specific one from thousands of jumpers with similar appearances rapidly.

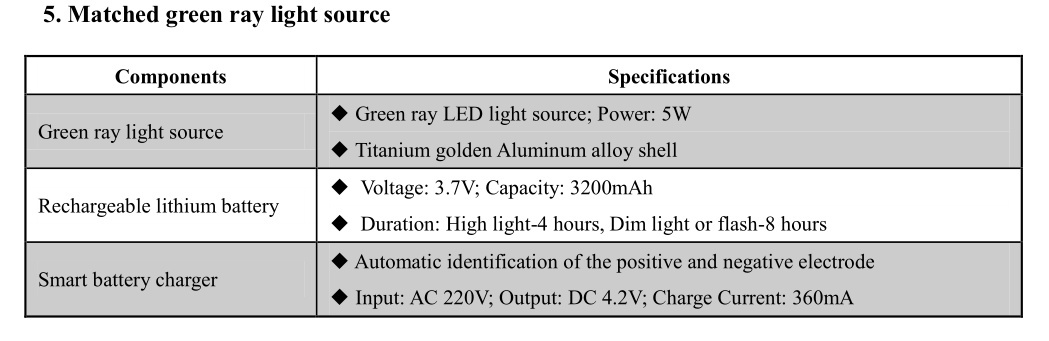

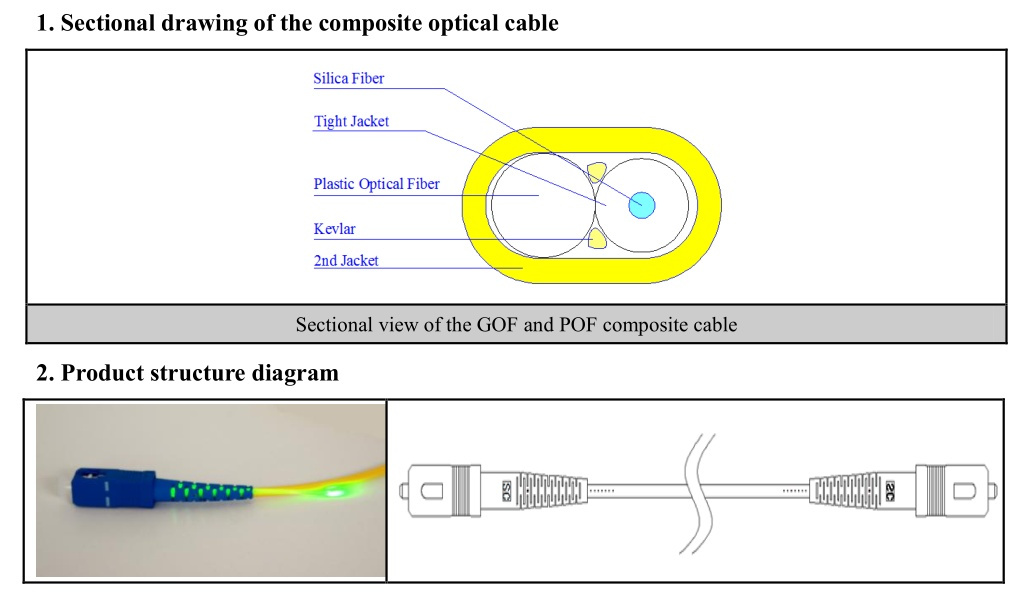

This product is combined with a silica fiber and a plastic fiber. The silica fiber ensures its function of data transmission, and the plastic fiber works as the recognition medium. Green ray light source is preferred in detection as its best transmitting performance in plastic optical fiber.

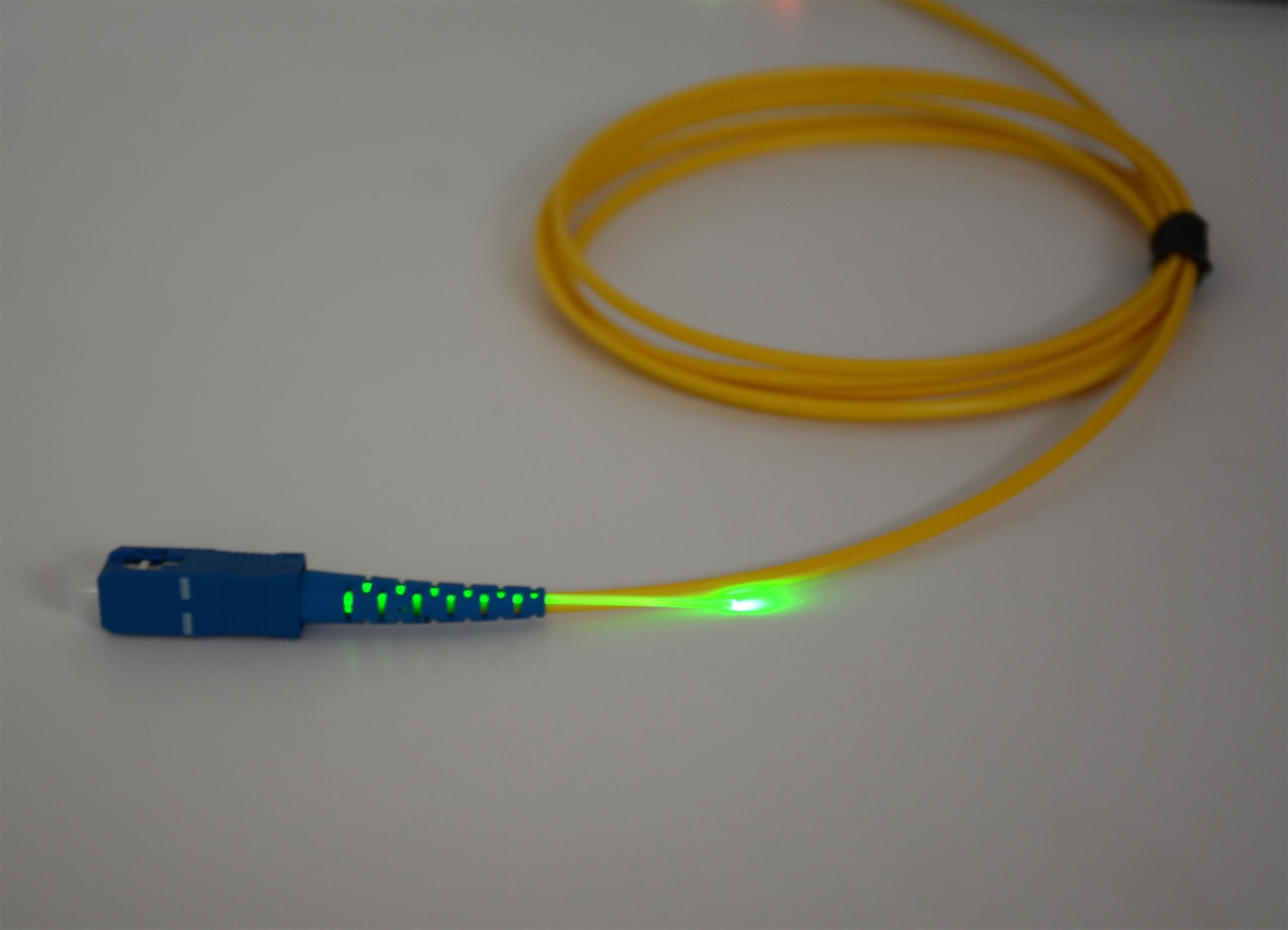

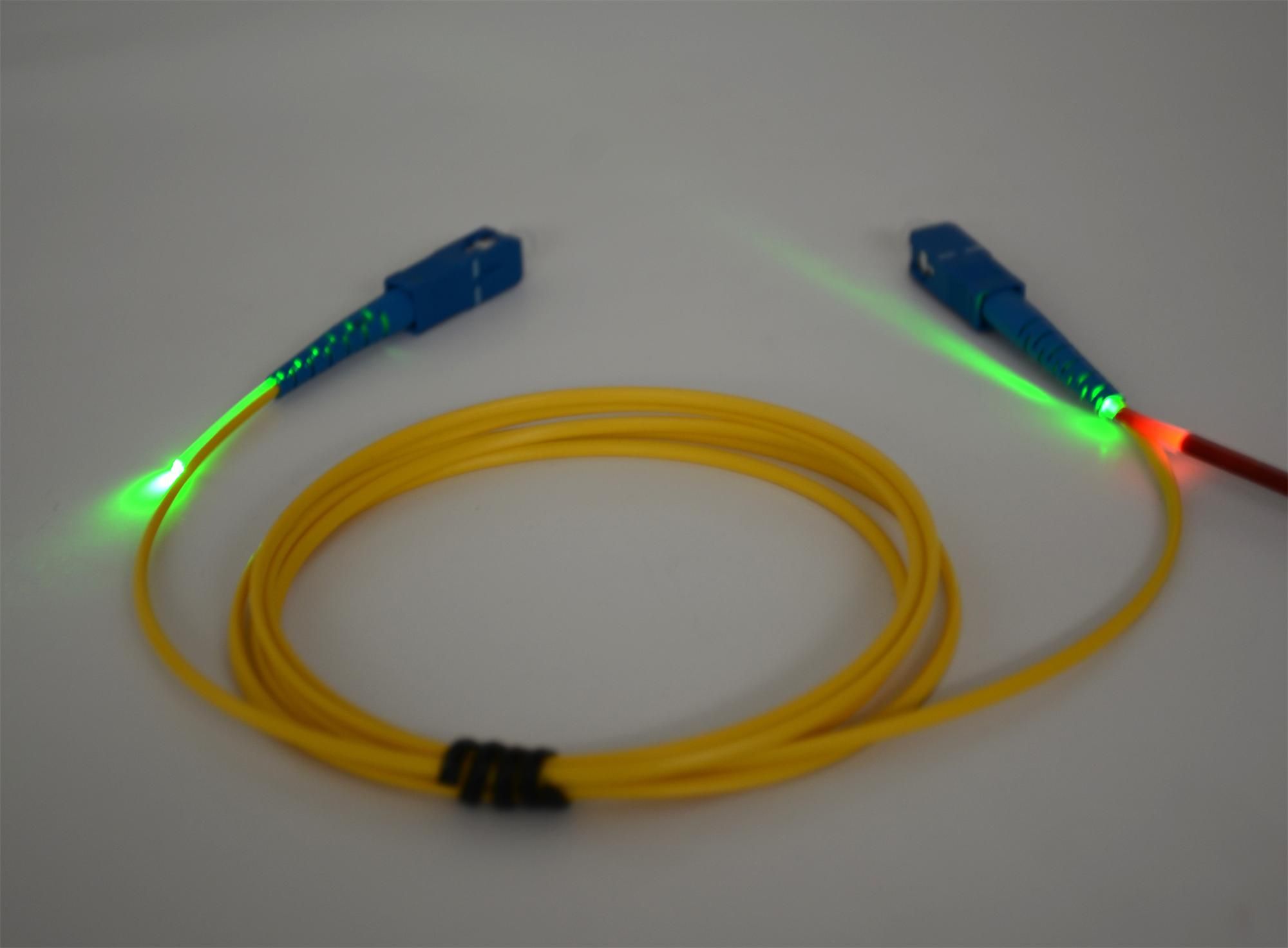

When testing, with light feeding from one end of the plastic optical fiber, it is easy to recognize the other end with the light signal delivered. This innovation greatly saves time in searching the target end socket, and ensures the validity.
To ensure the jumper's quality, we tested the end sockets on attenuation and back reflection; and also tested with 400 times electron microscope to make sure that there's no scratches or defects on ending faces. Every jumper has been tested on optical properties before selling.

2. Features

Fast and accurate location recognition;
Easy to test;
Few maintenance;
Jumper cable length up to 300 meters;
Free from electromagnetic interference and electromagnetic radiation;
Heat and cold resistant;
Good fire rating;
Low insertion loss, high return loss;
Good interchangeability and durability;
Meeting the requirements of ANSI / TIA / EIA / ISO / IEC on adaptive capacity to environment.

3. Applications

Communication switching system;
Industrial automation control bus system;
Industrial robot intelligent system and Servo System;
Digital multimedia system;
Power equipment control systerm.

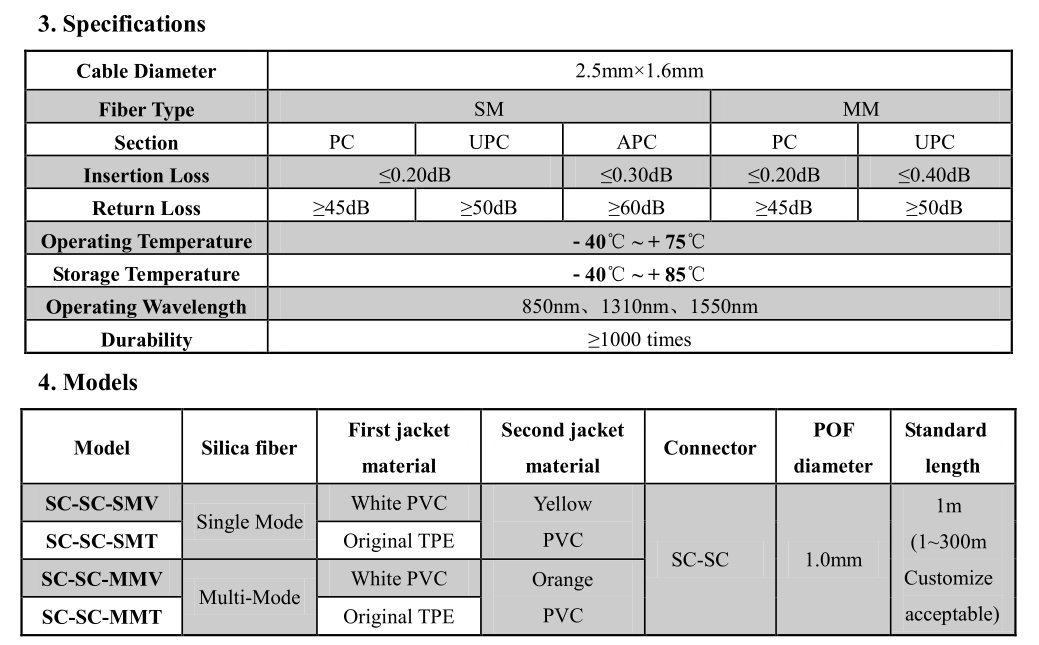

4. Technical Parameters

5. Product Pictures

Sichuan Huiyuan Plastic Optical Fiber Co., Ltd is a high-tech company which specializes in researching, manufacturing and marketing of low-loss PMMA plastic optical fiber, optical cable as well as its applications.

Launched in 2000, the company had realized the mass production of Low Loss PMMA POF through independent R &D of optical fiber raw materials, manufacturing equipment and production process in 2003, which was recognized as the first success in China. The company's products have broken the monopoly of foreign companies and filled the gaps in the domestic industry. Based on this success, the company had undertaken and accomplished the technological breakthrough task of the National Science and Technology Department, the Industrialization Upgrading Project of the State Development and Reform Commission, and the independent manufacturing of fluorine resin clad material, with the optical attenuation < 0.2dB / m, which has achieved an advanced level among the similar products in the world>.

It has developed the technology of lighting products, and has cultivated a large number of lighting manufacturers and lighting dealers; PMMA POF is widely used in decorative lighting in China.

We are expanding our market to oversea market! Sincerely welcome any contact from dealer in communication and lighting area around the world!
