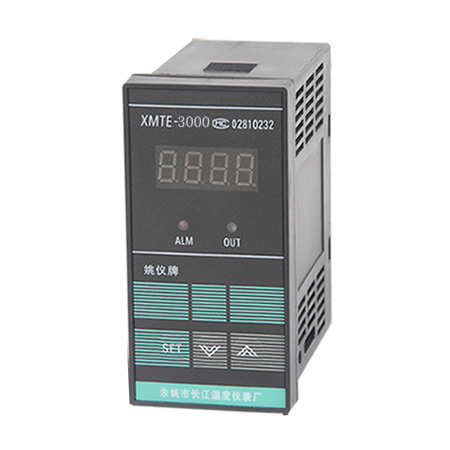

Industrial Digital Temperature Controller (XMTE-3000)

Name: Industrial Digital Temperature Controller (XMTE-3000)
Brand: all-electronics-online.com
SKU: 681694295
Availability: InStock
Rating: 4.7 (122 reviews)

Price:	US $ 13.8/Piece
Trade Terms:	FOB
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	XMTE-3000
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:	48*96
Usage:	Temperature Control
Control Type:	Digital
Type:	Temperature Controller
Control Method:	Electronic Type

Product Description

Technical Indexs:
1. Input: Thermal resistance: PT100\CU50; Thermal couple: J\K\S\E\B; Macromolecule humidity sensor(provided by ourselves)\thermal resistor NTC(Resistance and B value determined by Client)
2. Temperature range: K(0~1300) E(0~800) S(400~1600) J(0~1000) B(800~1800) PT100(-50.0~200.0; -200~600) Cu50(-50.0~150.0)
3. Display Precision: ± 1%FS
4. Return difference setting range: 0~40\0.0~20.0, Sensor's error translation amendment range: -10.0~10.0\-19-20
5. Control method: ON/OFF or return difference control; Time proportion control(Proportional band 3%, period 30s)
6. Output: Relay's open and close trigger output AC220V/10A;
Driving solid relay signal: Driving electric current≥ 15mA, voltage≥ 9V(proportional band3%, period2s)Driving controllable pulse output: Scope≥ 3V, width ≥ 40us contact with pulse when move to exceed zero
7. Working power: AC90~242V 50Hz/60Hz Power consumption: <4W
8. Working condition: 0~50, humidity≤ 85%RH, without corrode and strong electric radiation
9. External dimension(mm): 48× 96× 90 Installation hole: 44× 92

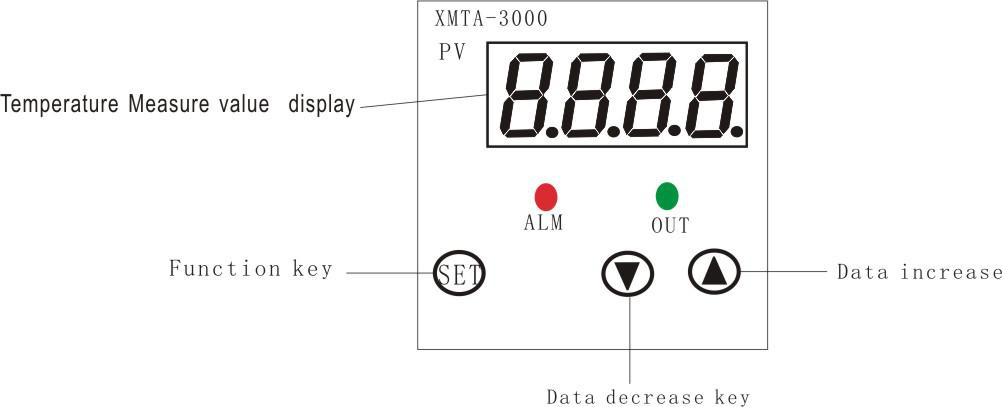

Panel indicating device(consult)

Connection scheme(consult)

Packaging Details

Yuyao Gongyi Meter Co., Ltd And Its Subsidiary, Yuyao Changjiang Temperature Meter

Factory, Have Been Devoting Themselves To The Development And manufacturing Of

Industrial Process Automation Controller Instruments Since 1995. Through Decades Of

Improvement, Gongyi Now Is A Top One Chinese Instrument Manufacturer, Claiming A

Large Domestic And Overseas Market Share, sales of CJ temperature controller.

Main products: Temperature controller, humidity controller, electrical instrument, time relay, paperless recorder, silicon-controller, voltage regulator and all kinds of temperature sensor, humidity sensor, temperature transmitter and safety barrier. All the instruments have the function to communicate with computer, and provide the computer industrial control interface. (DCS System)

"CJ" series Temperature Meter has been ISO9001-2008 quality system' S grant, CE and kinds of certification, and has international facture calculate appliance' S license ( CMC 02810232 )

Welcome to our factory.
