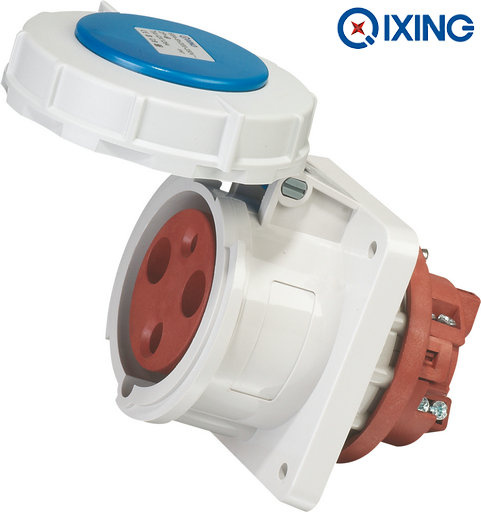

Industrial Extension Socket with CE CB CCC Certification (QX1264)

Industrial Extension Socket with CE CB CCC Certification (QX1264)
Price: US $ 50/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 10/Piece
Pay Type: L/C,T/T,D/P,Paypal,Money Gram
Prod Model: QX1264
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Current: 63A
Voltage: 230V
Pole: 2p+E
Material: PA6 PA66 PC Brass
Qualification: CCC CE CB
Grounding: Standard Grounding
Type: Without Switch
IP Rating: IP67
Application: Residential/General-Purpose

Product Description

Industrial Extension Socket With CE CB CCC certification (QX1264)
European / International standards EN/IEC 60309-2


Our company focus on bringing in advanced technology and equipment, which adheres to the ISO9001: 2000 international quality system, quality certification. To be a export-oriented enterprises, QIXING also get international agencies of Product Certification in the following relevant fields: CB, CE, CCC, TUV, GS, SEMKO, ROHS. We are continuing to introduce high-level technical and business management talents, gradually gain first-class production technology. Company is specialized in industrial plugs, sockets, coupler(connector)and so on.

TESTING AND QUALITY CONTROL:
Our product have pass lots type of test, whatever in TEMPERATURE-RISE TEST, CTI/PTI TEST, GLOW WIRE TEST, INSPERTION AND EXTRACTION FORCE TEST, SAND AND UST TEST and the other test, our product performance are over the standards and other brands' product.

Temperature-Rist Test:
When we design the product, the first thing we need to do is make sure that our product can work in tated current for a long time. To keep the high quality, we use the experimental apparatus which can test the temperture-risk, product life, and mechanical property together for finsh the test more fast and widely.

CTI/PTI Test:
When we were designing the product, we not only need to considering the metal part, but also for the plasic part. CTI/PTI is a very improtant test for testing the plastic. We only chose the raw material which can pass the CTI/PTI test to keep our product have high insulativity and safety.

Sand Dust Test:
The operational environment is the first problem we considered when we design the product. We need to make sure that our product can be used over the world. So we need to evaluate the flexible condition of environment for store, deliver, and use in dry-sands or abound with lots of dusts.
The sand dust test adopted the manual simulation of sand & dust conditions. So we can ensure that whether they had long-term usage in al kinds of harsh natural environments

Rainfall Test:
As we know, whatever the product, product can inordinately influence with all kinds of liquids, whatever they in operative or storage. It has varying effects on their raw materials and features and even can damage the structures when they are permeated.
Rainfall test can exam the product outside case's stabilities and reliabilities of against the liquid.

Insertion and Extraction Force Test:
We need to make sure the variable temperature at first when we design the product. Base on the variable temperature, we try to do the best feeling of inspection and extraction force.
The target of insection and extraction force test is translate the nastic feeling to the exactly data, base on the data, we can provide the information for design, improve, and inspect the product.



High And Low Temperature Test:
There are many type of nature environment and precipitating environment in the world, and hundreds of environment factor can effect the life of electrical equipment, especially for the temperature.
In the high temperature or low temperature condition, we can exam the product physical performance by the simulation. After the exam, we can judge the how is the performance of product by inspection.

Glow Wire Test:
Decrease the risk of risk fire disaster is necessary. The electrical equipment case more and more fire disaster in the modern life. The component of electrical equipment may be fire because overload or bad contact.
The glow wire test is use the simulation to know the risk of fire when the component is overload or glow in short time.


Current Poles 110V
50a.60Hz
230V
50a.60Hz
400V
50a.60Hz
500V
50a.60Hz
>50-500
100-300Hz
>50-500
a.300-500Hz
Packing unit Weight
3Poles
4h
 4Poles
 4h
5Poles
4h
3Poles
6h
 4Poles
 9h
5Poles
9h
3Poles
9h
 4Poles
 6h
5Poles
6h
3Poles
7h
 4Poles
 7h
5Poles
7h
3Poles
10h
4Poles
10h
5Poles
10h
3Poles
2h
 4Poles
 2h
5Poles
2h
63 3   QX1264         5 567

  Earth Contact Position 6h
  Rated Current(A) 63
  Poles 3
  Dimension(mm)  a
 b
 c
 d
 e
 f
 g.
 g.1
 h
 h1
 k
 l
107
100
84
85
77
6.5
14
2
113
118
55
88
  Cable nominal cross-sectional area 10-16
Zhejiang Qixing Electric Technology Co., Ltd

CONNECTING CHANGE THE WORLD

Qixing has become a leader in the manufacturing of industrial electrical products in China. Our primary manufacturing facilities are located in Wenzhou, China. Qixing has established sales and distribution organizations in over 20 countries worldwide.

Qixing is an established market leader in the manufacturing of IEC 60309 industrial plugs and sockets, connectors, additional device plugs, additional sockets, socket with swithes and mechanical interlock, dedicated refrigerated container plugs and sockets, and low-voltage plugs and sockets.

In order to achieve the goal of high quality, we have adopted and run with DIN ISO9001: 2000 international quality management system standard.

As an export-oriented enterprise, Qixing also get a range of international organizations' Product certification in related fields: CE, CCC, CB, TUV, GS.

Our objective is to produce products with un-compromised standards in materials, design and performance.
