| Prod Model: |
F21-2D |
| Application: |
Special Equipment |
| Signal Transmission: |
RF Remote Control |
| Type: |
Button |
| Certification: |
CE |
| Universal: |
Universal |
| Transmission Distance: |
50-100m |
| Battery Type: |
AA Battery |
| Voltage: |
18~65V AC/DC,65~440V |
| Material: |
Glass Fiber Reinforced Nylon-6 |
Product Description
Industrial F21-2D wireless remote control in china
1.Basic information:
Transmitter Size:196*65*53mm weight:320g
Receiver Size:171*86*85mm weight:550g
2.Technical data:
| F21-2D Product specification |
| | | | | |
| TX Model | F21-2D-TX-V-(E) | |
| TX Size | about 15.6*5.6*4.9cm |
| TX Weight | about 208g(without Batteries) |
| Housing Materail | glass fiber-reinforced nylon-6 |
| Protection Degree | IP65 |
| Temperature Rating | -35°C ~ +85°C(Regardless of the battery temperature tolerance) |
| TX power Supply | Two 1.5 volts Batteries(AA Size) |
| Number of buttons | 2 Double speed buttons,1 START button,1 mushroom button |
| Button Marking | arrow tip |
| I.D.Code | 4.3 billion |
| Voltage Warning | TX Red LED will flash slowly
when the volts under 2.2V,
and unable to start TX under 1.8V. |
|
| Operating Frequency | 310.0325-331.165MHz
425.5925-446.9925MHz |
| Channel Spacing | 0.2675MHz |
| Channel | 80CH/80CH |
| RF Power | <10DBm |
| Fault Detection | TX Red LED is flashing quickly:
1.Not in the correct way to start;
2.One of the pushbutton is jammed.
TX LED will flash slowly:
1.Please change two new batteries |
| RX Model | F21-2D-RX-V-(E) | |
| RX Size | 18.7x8.6x7.9cm |
| RX Weight | about584g |
Housing
Material | glass fiber-reinforced nylon-6 |
| Protection Degree | IP65 |
| connection diagram | english |
| Temperature Rating | -35°C ~ +85°C |
Power Supply
(voltage) | AC380V,AC36V,AC220V,AC110V,
AC48V,AC24V,AC12V/DC12V,
AC380V/AC220V(50-60Hz) |
| Relays | 2 Relays control functions,
1 relay control EMS and 1 relay reserve |
| Output Relays | 5Amp Omniseal Relays(AC250V/10A Relays ,10Amp fuse) |
| I.D.Code | 4.3 billion |
|
| Operating Frequency | 310.0325-331.165MHz;
425.5925-446.9925MHz |
| Channel Spacing | 0.2675MHz |
| Channel | 80CH/80CH |
| Sensitivity | more than-110DBm |
| Interface | Cable output |

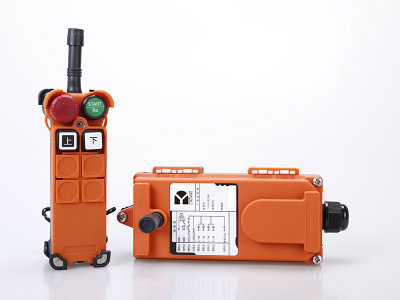

3,Standard configuration:
One transmitter ;
One receiver;
One 1m cable connect with receiver
One operation and maintain manual .
4,Products features:*Two push button and one EMS button + one START button+one STOP button
*control point up to 2
*With the battery voltage alarm device to cut off the circuit when voltage is insufficient.
*with the Rotate key switch to guarantee the safety.
*set the internal functions by computer interface
*Two double speed push button + START +STOP+EMGS+SWITCH
*UP,DOWN push button can be set jump strokes,ordinary, mutual inhibition or not .

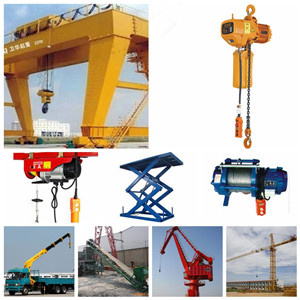

5.Products Application:
Widely applied for lifting equipment, construction machinery, cargo loading/unloading machines, water supply system, data transmission, the iron-smelting and steel-making, the automobile manufacturing, paper-making and chemical industry, steel structure processing, galvanization, shipbuilding, railroad, bridge, tunnel construction and other equipment and sites which can be worked by radio controls.
6.Company Advantage:
1. More than 10 years researching and exporting experience in Radio Remote Control industry.
2. More than 20 people R&D working team, have the ability to research and develop new product independently.

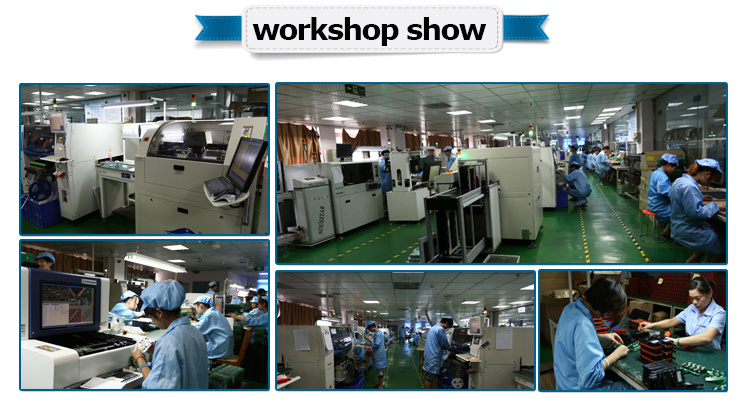

3. Have 15 production lines. we also have many production machines such Printing circuit board machine, SMT machine, automatic wave soldering machine, automatic soldering robot, etc. also have many testing machine.
4. Well and high quality control, all working process according to ISO9001:2008.
5. CE, FCC & ISO certificates.
6. OEM acceptable
Henan Dirk Electronic Co. Ltd (former Henan Yuding Electronics Crop., Ltd) is an industrial radio remote controls manufacturer in China. Established in August, 2010, With more than 10 years experience on this industrial remote control system business area. Headquartered in Zhengzhou, Henan province. Dirk has so many experts in the industrial radio remote controller area to assure quality and productivity, Dirk are becoming one of the leading companies in this industry in China.
Our main products is: F21 Series radio remote controls, F23 series radio remote controls, F24-60 Dual Joystick radio remote control and explosion-proof remote controls. All these remote controls are easy to operate to keep workers safety and Efficient. All our products are CE & FCC & ISO Certificate.
Quality is company's life. From the raw material testing, manufacturing, aging test and assembly, Each process are operate according to ISO9001: 2008 & international quality control system to guarantee the products quality. Competitive price with excellent quality and good after-sales service make our Internal customers are covered Over 400 cities of 33 countries. We also have built long-term business relationship with the foreign customers.
We here sincerely hope to establish partnership with you and your esteem company.
