Prod Model: |
VT1000 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Color: |
Black |
Is Customized: |
Yes |
Memory: |
4MB |
Weight: |
197g |
Input Voltage: |
9 ~ 36 VDC |
Backup Battery: |
1900 mAh |
Real Time Monitoring: |
Yes |
Type: |
GPS Tracker |
Use: |
Automotive |
Operating Principle: |
Interferometric Type |
Port Number: |
Multiplex Multi-purpose Channel |
Model: |
Integration Type |
Carrier Frequency: |
Dual-Frequency |
Chip: |
U-Blox7 |
Certification: |
Cr& RoHS |
Product Description
Industrial Grade Module Vehicle Dual SIM GPS Tracking System VT1000 with Speed governor ( Up to 5 SIM card tracker)

We have developed lots of new product recently. The most advantage one is our seamles tracking GPS tracker, From now, we can achieve our trackers are tracking inside the building/ tunnel/ subway etc..... that's mean we can track the car when lost GPS signal or GPS antenna was damaged or GPS was jammed etc.
The other biggest improvement is cool start the device, it can be very fast locate in 15s and traditional cool start will take 30s to 180s to finish the locate on map.
Topshine tracker VT1000 is a most advanced and high-cost effective GPS tracker, it is equipped with ARM9 high speedy microprocessor; Supporting dual camera (location&driving information log on picture); Bidirectional communication; 4 A/D connectors for multi fuel sensor monitoring; Support unique passive RFID/phone reader for automatic anti-theft and driver identification; And many useful functions and extensibility for fleet management and vehicle security purposes.
Application:
1. Vehicle Tracking
2. Car Security/ Anti-Hijack
3. Fleet management
4. Asset tracking

Features & Functions:
* Tracking by SMS/GPRS (TCP/UDP)
* OTA Function
* Engine on/off detection
* Remote Engine cut off
* Built-in backup battery
* Support max 64G SD card store
* Wiretapping/remote listening
* ARM9 high speed microcontroller
* Two way communication (Listen & Speak)
* Real time tracking via the web-platform
* Get position location via call/SMS
* Photo with location & driving information log function
* Get location physical name via SMS & from the web-platform
* Built-in motion sensor for power & GPRS flow saving mode (sleep mode)
* Google Map link for location via SMS, it shows your location on map via mobile phone.
* Built-in 4MB memory & position logging capacity up to 26, 000+ waypoints even no GPRS signal
* RFID kit/ phone reader for driver identification and auto Arm/Disarm functions (movement/towed alert, ignition alert, auto cut off engine etc)
* Analog input for Fuel sensor detecting/monitoring, support max 4 fuel sensor manage
* Support Dual SIM card tracker, up to 5 SIM card tracker ( Optional )
* Support irregular GEO fence (Optional )
* Support 3G network tracker ( customize 4G network )
* Sopport Dual camera
More Alarm Functions:
* Accident alarm
* Oil leaking/Refuel Alarm
* Over speed alert
* Geo-fence alert
* Moverment alert
* Power failure/low power alert
* SOS Panic button, SOS alert
* Suddenly acceleration/brake alert
* Harsh braking and harsh acceleration alert

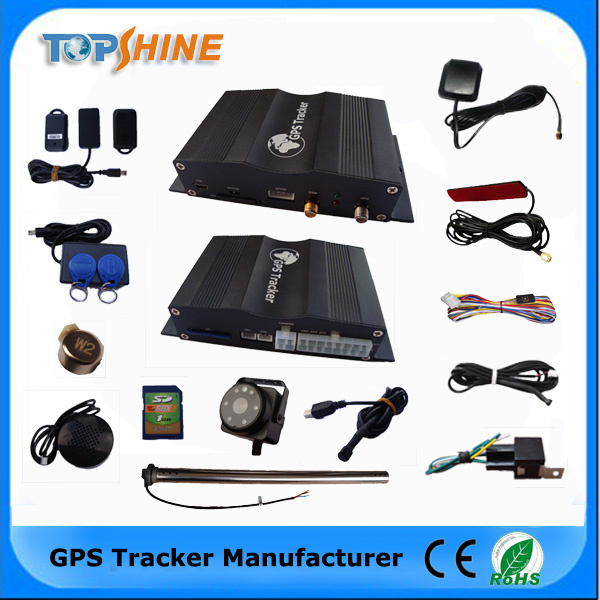

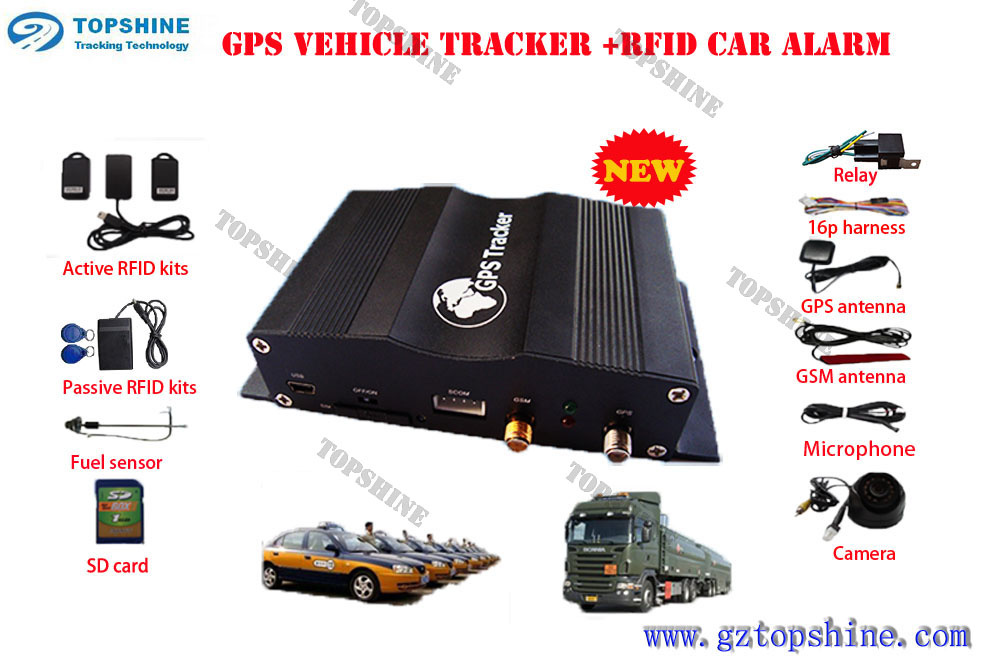

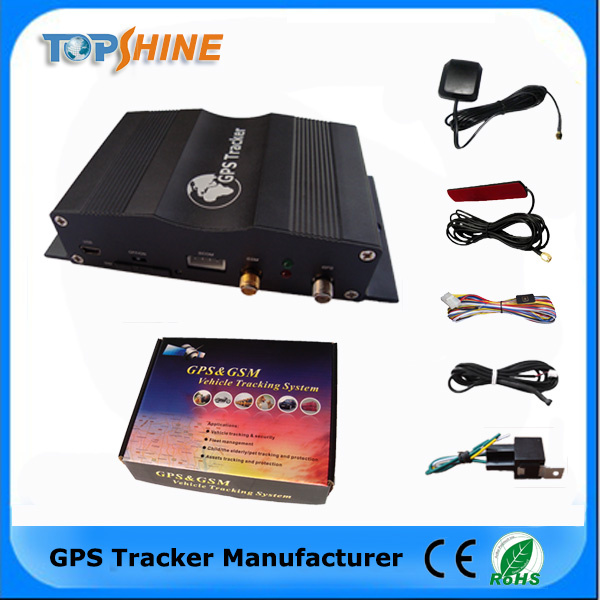

VT1000 Accessories:Standard Accessories |
Main unit | SOS button |
GSM antenna | Microphone |
GPS antenna | Relay |
Wiring | |
Optional Accessories |
Fuel sensor | Crash sensor |
Temperature sensor | Smart phone reader |
Active RFID | Active RFID Tag |
Passive RFID | Passive RFID Tag |
OBDII | Camera |
Speaker | USB configuration cable |

Specifications: Items | Specifications |
Dimension | 110*80*30mm |
Weight | 180g |
Input voltage | DC 9V~35V/1.5A |
Back-up Battery | 850mAh |
Velocity | 515 meters/second (1000 knots) max |
Operating Temperature | -20°C~75°C |
Humidity | 5%~95% Non-condensing |
Altitude Limit | 18,000 meters (60,000 feet) max |
LED | 2 LED lights to show GPS, GSM status |
Cold start | 42sec., average |
Hot Start | 1 sec., average |
GSM Frequency | GSM 850/900/1800/1900MHz or GSM 900/1800/1900 MHz |
GPS Frequency | L1, 1575.42 MHz |
GPS Chip | Latest GPS SIRF-Star III Chipset |
GPS Sensitivity | -158dB |
Positioning Accuracy | 10meters, 2D RMS |
C/A Code | 1.023 MHz chip rate |
Channels | 20 channel all-in-view tracking |
Velocity Accuracy | 0.1m/s |
Time Accuracy | 1 us synchronized to GPS time |
Default datum | WGS-84 |
Reacquisition | 0.1 sec., average |
I/O | 5 Input 5 Output 1 Camera Port 4 Analog Input 1 RS232 Port 1 USB Port 1 MIC& Speaker Port 1 SD Card Slot |

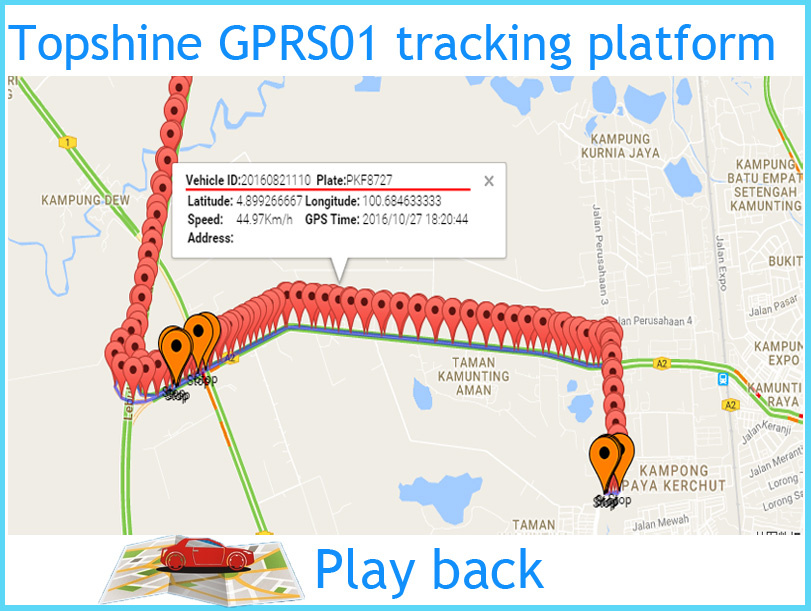

Topshine company provide 2 free tracking platform (web based and mobile APP)The main function of tracking platform: 1. API
2. BS structure, very stable design.
3. Flexible configuration menus and assign power for certain user
4. Live tracking the car's position on map, arm/release alarm, stop the car, etc.
5. Free draw and preset the travelling route online in the map.
6. History path stored & playback, alarm history review.
7. Cell phones scan the QR code to download APP
8. Icon can show 8 direction
9. Events reminder (Geo-fence alert, Movement alert and over-speed alert etc )

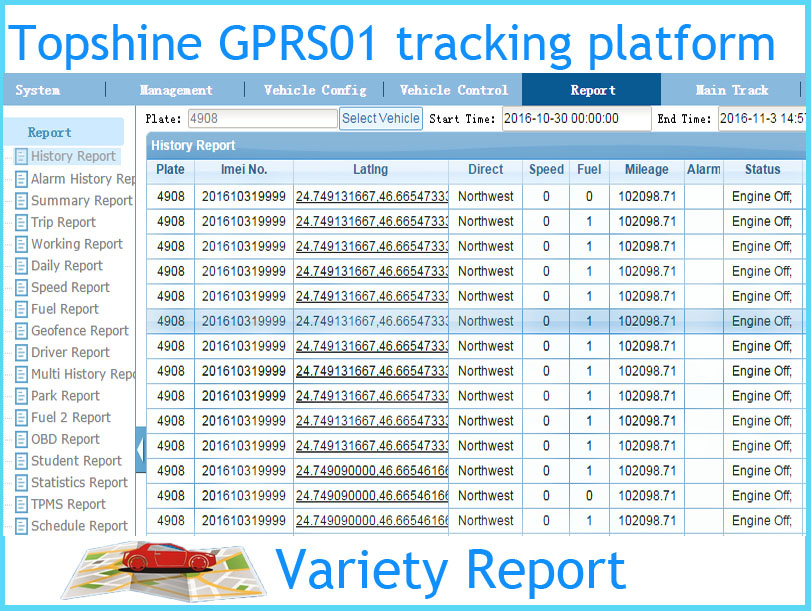

10. Report function: TPMS reprot, Movement report, alarm report, history report, mileage report,fuel consumption reprot etc.
11. English/Chinese/Customized language accepted.
12. Supported about 3000-30, 000 vehicles.
13. Strong user management function and vehicle management function, many useful widget.
14. Can be installed at your server computer, can create and manage your customers' accounts.
15. Provide customer demand for customizationWelcome to log in our GPRS01 tracking software:web: www.tstrack.net / www.track-car.com
Username: test1
Password: 123

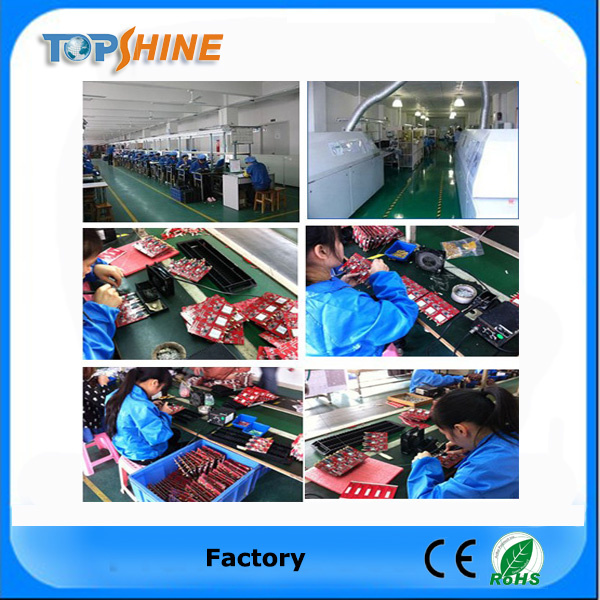

Our factory:
Our service:- Any inquiries will be replied within 12 hours on work day.
- Professional manuafacurer and wholesaler for 10 years.
- OEM available:
- Customized logo or color box
- We can help you to design and put it into production about your idea.
- High quality, fashion design, reasonable&competitive price, fast lead time
- After-sale service:
- All products will have been strictly Quality checked in workshop before packing
- All products will be well packed before shipping.
- All our products have 24 mouths warranty, and we are sure our products will be free from maintenance
- Fast delivery:
- Sample order in stock; 10~100pcs: 2~3 days; 3~7 days for bulk order
- Payment:
- payment for the order via: T/T , Western Union and Paypal
