| Prod Model: |
JT2088-RS485 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Power Supply: |
DC18-36V |
| Mounting Hole Pitch: |
44mm |
| Measuring Pressure: |
Pressure, Level |
| Dimension: |
Diameter=52mm |
| Operating Temperature: |
-30°c ~ +70°c |
| Warranty: |
1 Year |
| Output: |
Modbus-RTU Protocol |
| Compensation Temperature: |
-30~70ºC |
| Stability: |
0.2%/Year |
| Measuring Medium: |
Liquid, Gas, Vapour |

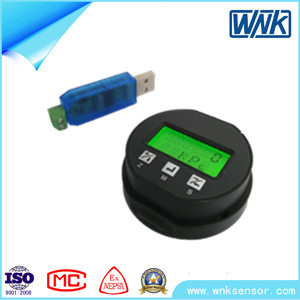

Product Description
JT2088 Diezoresistive Intelligent Pressure Circuit BoardWith the main body of Microcontrollers CPU, JT2088-RS485 Diezoresistive Intelligent Circuit Board is capable to do logical operation and programming, combining analog and digital circuit in one machine. Isolation technology is used in power and signal information collection and digital communication to ensure good performance in harsh industrial working environment. 20 bits AD switch ensures high accuracy pressure collection and switch; as for communication RS485 circuit is adopted, so as to realize Modbus-RTU protocol or user-defined protocol. Buttons set normal parameters of transmitters; free adjusting programs provide parameters configuration, pressure calibration, temperature compensation and other operations. Maximum 7 points calibration improves precise level and accuracy of transmitters. JT2088-RS485 supports standard diffused silicon, strain gauge,piezoresistive ceramic etc pressure and level sensors. It is suited for 2088 housing.
Features - Intelligent Pressure Circuit Board 1. Four wires working mode (two wires offering power + two wires communication)
2. Various gain optional, suitable for micro signal output sensors;
3. Temperature compensation, under -30~70ºC the accuracy is better than 0.5%;
4. Three points calibrating, linearity accuracy better than 0.2%. Multi-point calibrating is available as required.
5. High accuray: 20 bits AD switch
6. Isolation RS485 communication technology ensures realiable communication;
7. MODBUS protocol (customized private protocol is available) realizes data communication, thus applicaiton is wide;
8. Various pressure units ( unit "M" combined with media density realizes height measurement)
9. span can be changed on-site by LCD module buttons without standard pressure source
10. Small signal wiping off function, wipe-off rate settable
Technical Parameters- Intelligent Pressure Circuit Board
| Supply power | DC18-36V (DC 24V is suggested) |
| Operation mode | Four-wire (two wires offering power + two wires communication) |
| Sampling rate | 20times/s |
| Displaying and bits | LCD with backlight, displaying 6 bits, and 5 decimal places |
| Displaying units | Ten displaying units as KPa, Pa, MPa, mmH2O, mH2O, mbar, bar, PSI, M,% |
| Temp. compensation accuracy | -30~70ºC complete machine accuracy is better than 0.5% (including accuracy of sensor) |
| Linearity accuracy | Complete machine linearity is better than 0.2% (Multi-point calibrating is available as required) |
| Stability | 0.2%/Year |
| Range ratio | 10:01 |
| Circuit protection Measurement | surge current protection, reverse power protection |
| Circuit design | Intrinsic safety |
| Isolation range | >200M |
| RS485 communication Protocol | Modbus-RTU |
| RS485 communication rate | 9600bps |
| Adjusting method | by buttons on LCD head or program on pc |
| Dimensions | OD=52mm, Mounting hole pitch=44mm (suited for pressure and level transmitter in 2088 housing) |
| Motherboard buttons operation | reset, lower range calibration(zero drift under pressure source), upper range calibration (full scale calibration) |
| LCD head buttons operation | changing machine address (0-255), units, decimal place, damping time and zero clearing |
Why choose WNK?1. Founded in 2004 , 12 years producing experience of sensors, transmitters
2. Chinese first having completely proprietary intellectual property rights of PROFIBUS temperature transmitter
3. Chinese industry leader in cement applying field
4. Aboundant experience of OEM & ODM with customers around the country including many trading companies. 5. Having not done foreign trade before, but users of our products have been all over the world
6. WNK profound accuracy of 0.075% is unique in our local, and it has been local measurement standard.
7. WNK has been continously awarded National High-tech Enterprice, Hefei Famous Brand, Chinese Top Ten Famous Brand of Transmitters, Chinese AAA Enterprice of Quality Guarantee and Good Faith, Chinese Industrial Fieldbus Leading Enterprice and etc.
Founded in 2004, ANHUI WNK ELECTRONIC ENGINEERING Co., Ltd is a hi-tech company specializing in different kinds of technologically-advanced and good quality sensor, transmitter and automation instrument. We devote to developing, manufacturing and selling of automation control system, providing our customers comprehensive fieldbus technical solutions and factory informatization construction.
Our main products include iEOS industrial cloud data base developing plate form; Industrial Internet of Things; WNK-WMS industrial wireless measurement system; Onsite measurement instruments like temperature, pressure, flow, level sensor and transmitter etc, widely applied in Petrochemical, Chemical, Power, Steel and Cement.
WNK is the third company in China developed PROFIBUS transmitters. WNK series PROFIBUS transmitter is the fourth in China certificated by international PROFIBUS organization, and Chinese first that completely having proprietary intellectual property rights. WNK PROFIBUS-PA temperature transmitters filled Chinese blank technology in the field.
With strict, scientific management system, WNK has been certificated to conform to standard GB/T 19001-2008 / ISO 9001: 2008 by China CLASSIFICATION SOCIETY CERTIFICATION COMPANY. WNK commits to developing of new products and technical innovation. With continuously effort in advanced technology of automation control system, WNK has been undertaking some innovation projects of MST (Ministry of Science and Technology), and has been honored as promising enterprise of "Giant of Technology "in Hefei Hi-tech Industry Development Zone.
As Chinese first and unique qualified production enterprise of 0.075% measurement in Anhui, WNK brand was awarded Anhui Famous Brand.
