| Prod Model: |
F24-60 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Product Name: |
Joystick Crane Remote Controller |
| Certificates: |
CE,FCC,ISO |
| Packing Size: |
55*30*26cm (Including Inner Carton) |
| Net Weight: |
5.5kg(Including Inner Carton) |
| Packing Details: |
1 Set/Carton |
| Buttons: |
5 Single Speed Buttons |
| Joysticks: |
Two 5-Steps Joystick |
| Switches: |
4 Selector Switch |
| Control Distance: |
up to 100m |
| Shipping: |
International Express |
| Application: |
Material Handling Equipment,Lifting Euipment |
| Signal Transmission: |
RF Remote Control |
| Type: |
Joystick |
| Certification: |
CE |
| Universal: |
Universal |
| Transmission Distance: |
>100m |
| Voltage: |
12V |
| Battery Type: |
AA Battery |
| Material: |
Glass Fiber |
Product Description
Applications of remote controller:
Widely applied for Overhead cranes or concrete pumps truck or others condition which are more complex.
Features of wireless remote controller :
· Durable nylon-fiber housing for extra shock resistance.
· Fully programmable relay configuration with maximum 16 relays output per command.
· Pre-wiring standard cable making installation quick and easy.
· Economic efficiency, ease of operation.
· 3 stages LED battery power indicator.
· Feature acceleration delay time control (smooth moving for multiple speeds cranes)
Technical Specifications:

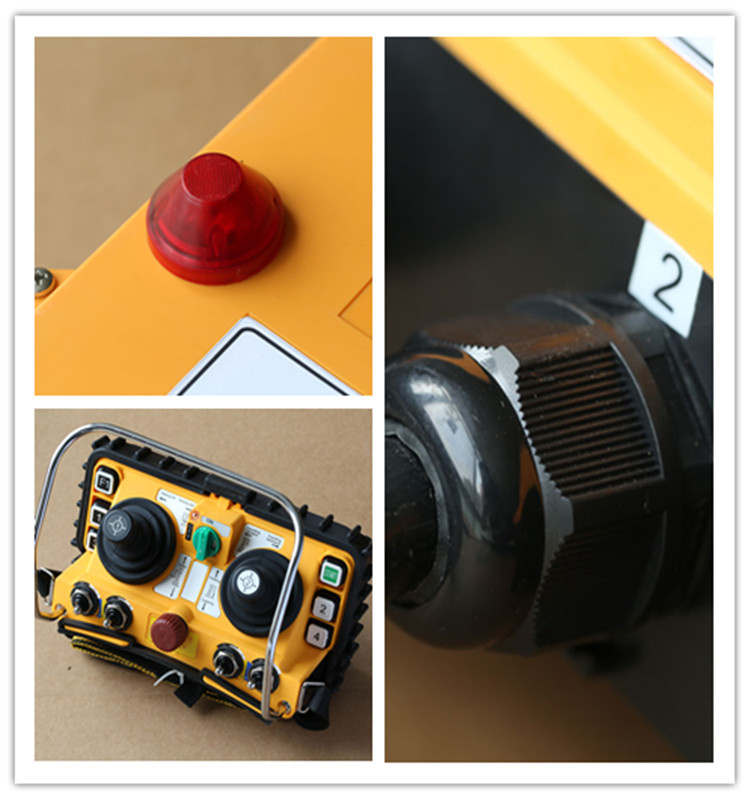

Industrial joystick wireless Crane Remote Controller(F24-60)
| Unique I.D.Code | over 4 billion |
| Numbers of Buttons | 5 Single Speed buttons,1 START button,1 MUSHROOM button |
| Joysticks | two 5-step joysticks |
| Switches | two 5-step joysticks |
| Transmitter Power Supply | four 1.5v Batteries(AA size) |
| Receiver Power Supply | AC380V/220V/110V/48V/36V/24V/12V OR DC12V |
| Relays | Max 40 Relays control Functions(set by programming tools),1 relay control EMS |
| Output relays | 5Amp Omniseal Relays(AC250V/10A relays,10Amp fuse) |
| Operating Frequency | 310.0325-331.1650MHz(VHF) |
| Channel Spacing | 0.2675MHz |
| Working Temperature | -35ºC~ +85ºC |
| Protection Degree | IP65 |
| RF Power | ≤12DBm |
| Receiver Sensitivity | ≥-110DBm |
| Channel | 80CH |
| Interface | Cable Output |
Standard Configuration:
Transmitter*1( with strap),
Reiceiver*1,
Receiver with over 3m Cable,
Operation and maintain manual *1
Our Products Advantages:
All our products have got CE,FCC,ISO Certificate.
All operate process according to ISO9001:2008 and international quality control system.
Easy to operate to keep workers safety.
One year warranty.
OEM orders can be acceptable.
