| Prod Model: |
GS-LFDS3015 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Power Source: |
Fiber Laser |
| Control Mode: |
CNC |
| Cutting Nozzle: |
Ring Type |
| Graphic Format: |
Dwg,Dxf |
| Cooling Mode: |
Water Cooling |
| Applicable: |
Metal |
| Laser Type: |
Fiber Laser |
Product Description

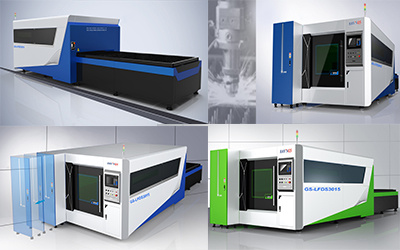

Industrial Laser Cutting Machine Cutting Stainless Steel 1-10mm
Laser cutting advantages over other thermal cutting methods
1. The cutting quality is good: Because of the small laser spot, high energy density, fast cutting speed, laser cutting can therefore get better cutting quality.(1) Cutting knife is narrow and parallel on both sides, also perpendicular to surface, dimensional accuracy of cutting pieces can be up to + / - 0.05 mm.(2) Cutting surface is smooth and beautiful, the surface roughness is only a few dozen microns, laser cutting can be used as the final working procedure, parts can be even used directly without mechanical processing. (3) Heat affected zone is very small, material performance is hardly affected near the kerf width , and the workpiece deformation is small. Also, kerf geometry is good , slitting rectangular cross-section shapes appear to be regular. 2. Highly automation:Adopts digital control, you only need to use CAD to draw the picture and import to specialized software, laser cutting machine can cut out the artifacts you need, moreover there is intelligent typesetting function, thus can save raw material costs to the greatest extent. 3. High cutting efficiency:Due to the transmission properties of laser, laser cutting machine has equipped with many sets of CNC work bench to realize numerical control. You only need to change the CNC program to cut different shape, as well as for two-dimensional cutting, and three-dimensional cutting. 4. Fast cutting speed 5. Non-contact cutting 6. Variety cutting materialParameters | Model | GS-LFDS3015 | GS-LFDS4020 | GS-LFDS6020 |
| Laser source medium | Fiber |
| Cutting range(L*W) | 3000mm × 1500mm | 4000mm × 2000mm | 6000mm × 2000mm |
| Z axle stroke | 250 mm |
| Max positioning speed | 120m/min |
X,X,Y axle Max accelerate speed
| 1.2G |
| Cooling form | water cooling |
| Laser wavelength | 1070nm |
| Output power of laser source | 1000W~ 4000W(imported) |
| Min. cutting gap | ≤0.1mm |
| Positioning accuracy of X, Y and Z axles | ±0.03 mm |
| Repeated positioning accuracy of X, Y and Z axles | ±0.01mm |
Thickness of cutting material
(according to material) | 0.2-25mm |
| Drive model | Imported servo motor |
| Power requirement | 380V,50/60Hz |
| Working temperature | 5ºC-45ºC |
| Continuous working time | 24 Hours |
| Machine weight | About 11440Kgs |
| Outer dimension | 8500mm x 3800mm x 2000mm |
| Total protection level of power supply | IP54 |
View More
Functions of GS-LFDS3015 laser cutter
1. Excellent overall performance, changeable working tables, 7 seconds to finish high speed changing, improve working efficiency of more than 48%.2. The machine tool includes loading area and processing area, standard configuration is changeable working tables, auto change the workpiece between processing area and loading area by motor, convenient to upload and download. With the design of changeable working table, could prepare the next uploading while processing, highly improved working efficiency.3. Equipped with exhaust device, have good exhausting effect and little pollution.4. Small occupied area, high system integration, convenient to operate and maintenance,24 hours continuous working.5. The water chiller has good safety protection function, such as over temperature, lack phase, pressure, water-break, undervoltage, overload, etc. With stable performance, satisfied the cooling requirement of laser source.Standard Configuration of GS-LFDS3015 Laser Cutter | NO. | Item | Qut. | Manufacturer & Original place |
| 1 | Laser Source |
| (1) | 1000 - 4000W Fiber laser source | 1 set | IPG/Rofin/SPI |
| 2 | Cutting head and follow-up system |
| (1) | Laser cutting head | 1 set | Raytool (Switzerland) |
| (2) | Follow-up system | 1 set | Raytool (Switzerland) |
| 3 | Machine tool |
| (1) | Cutting bed & accessories | 1 set | Hans GS |
| (2) | X,Y,W-axis rack | 1 set for each | Linden (Sweden)
Accuracy: DIN 6h grade; Mill:3 |
| (3) | planetary gear reducer | 1 set for each | APEX(Taiwan)/Sober(Germany) |
| (4) | Liner guider | 1 set for each | HIWIN (Taiwan) |
| (5) | Machine tool accessories | 1 set | Hans GS |
Han's Goldensky is the High power laser expert in ChinaWuhan"Optics Valley" Core enterprise
Founded in 1998;Registered capital is $13 million, Total assets is $24.6 million
Han's Goldensky Science and technology park, the first phase of construction is 20000 square meters
Three products are included in The National Torch Plans Key projects list
SaveSave
Wuhan Hans Goldensky Laser System Co., Ltd is subsidiary company of Han's Laser Technology Industry Group Co., Ltd, (stock code: 002008). We are high-tech enterprise specialized in R&D, manufacture and sales for complete equipment of high-power laser source, laser cutting, laser welding, laser fusion covering, laser heat-processing and high-speed laser punching machine. We also provide automatic processing solving plans.
Company has been successively undertaken the national development and reform commission (NDRC) national high-tech industrialization demonstration projects, the top ten key projects in Hubei province, Wuhan city top ten industrial projects of science and technology, and other government science and technology projects, including three products listed as a key project of national torch plan by the national ministry of science and technology. We successively obtains the national innovation fund, the electronic information industry development fund and a number of special fund support of Hubei province and Wuhan city, to be listed as the key innovation enterprise in east lake development zone, the key support leading enterprise in "large-scale laser equipment system integration and the new type laser manufacturing field" in Wuhan's 11th five-year plan.
Most of the products of our company has fully independent intellectual property rights, widely used in steel metallurgy, petroleum, tobacco, automobile, machinery, aerospace, chemical, home appliances and other manufacturing industries. In the future, the company will continue to be based on innovation of new and high technology, using its own technology advantages to contribute to the industrialization development of laser processing complete equipment.
