| Prod Model: |
Brushless dc motor GMP42-TEC4250 |
| Product Name: |
Planetary Brushless Gear Motor |
| Rated Voltage: |
12V |
| No.of Phase: |
4 |
| Life Time: |
5000h |
| Gear Ratio: |
4,14,19,27,51,71,100,139,189,264,369,516,720 |
| Efficiency: |
75% |
| At Load Speed: |
55rpm |
| Current: |
120mA |
| No Load Torque: |
40kg.Cm |
| Stall Torque: |
900kg.Cm |
| Application: |
Power Tools |
| Operating Speed: |
Low Speed |
| Structure And Working Principle: |
Brushless |
| Excitation Mode: |
Pm-Permanent Magnet |
| Type: |
Gear Motor |
| Certification: |
RoHS,Ce |
| Brand: |
Tt Motor |
Product Description

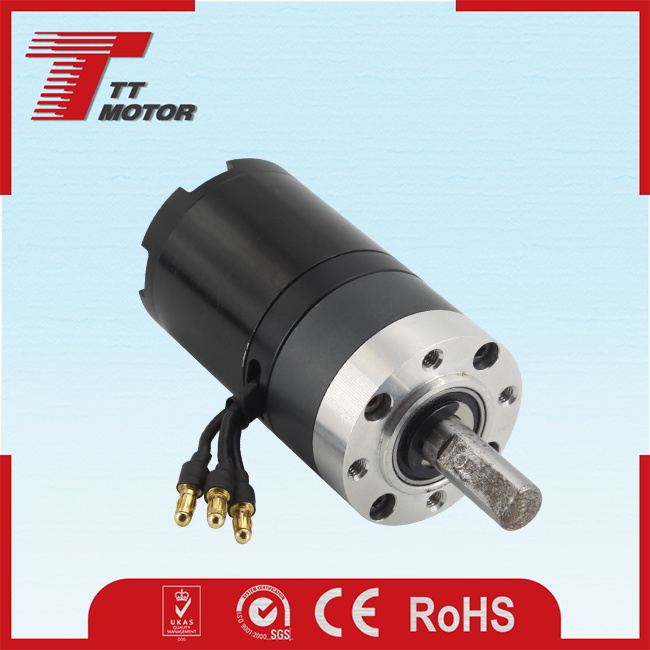

Industrial Machine Planetary Gearbox Brushless DC Motor
Brushless motors Main Features1.42mm planetary gearbox plus 42mm brushless motor
2.Small size DC gear motor with low speed and big torque
3.42mm gear motor provide 10.0Nm torque and more reliable
4.Suitable to small diameter, low noise and big torque application
5.Reduction ratio:4,14,19,27,51,71,100,139,189,264,369,516,720
Motor technical data:| Motor model no. | Rated voltage | No-load speed | No-load current | Rated speed | Rated torque | Rated current | Output power | Stall torque | Stall current |
| VDC | r/min | mA | r/min | g.cm | mA | W | g.cm | A |
| TFC4250-2465 | 24 | 6500 | 200 | 5400 | 200 | 1000 | 11.5 | 1150 | 2.6 |
| TFC4250-2440 | 24 | 4000 | 120 | 3200 | 200 | 600 | 6.6 | 1000 | 2.0 |
| TFC4250-1245 | 12 | 4500 | 150 | 3500 | 230 | 880 | 8.3 | 820 | 2.5 |
Gear motor technical data : GMP42-TEC4250-2465-xxx| Reduction ratio | 4 | 19 | 51 | 100 | 139 | 189 | 264 | 369 | 516 | 720 |
| Length mm | 26 | 33.5 | 40.5 | 40.5 | 40.5 | 47.5 | 47.5 | 47.5 | 47.5 | 47.5 |
| No-load speed rpm | 1600 | 340 | 125 | 65 | 45 | 33 | 23 | 17 | 12 | 9 |
| Rated speed rpm | 1300 | 280 | 100 | 53 | 38 | 28 | 20 | 14.5 | 10 | 7.5 |
| Rated torque kg.cm | 0.6 | 2.7 | 6.0 | 12 | 16.6 | 22.5 | 30 | 30 | 30 | 30 |
| Max.momentary tolerance torque kg.cm | 3.7 | 15 | 35 | 69 | 70 | 70 | 70 | 70 | 70 | 70 |
Gear motor technical data : GMP42-TEC4250-2440-xxx| Reduction ratio | 4 | 19 | 51 | 100 | 139 | 189 | 264 | 369 | 516 | 720 |
| Length mm | 26 | 33.5 | 40.5 | 40.5 | 40.5 | 47.5 | 47.5 | 47.5 | 47.5 | 47.5 |
| No-load speed rpm | 950 | 200 | 75 | 40 | 28 | 20 | 15 | 10 | 7.5 | 5.5 |
| Rated speed rpm | 750 | 160 | 60 | 30 | 22 | 16 | 12 | 8 | 6 | 4.5 |
| Rated torque kg.cm | 0.6 | 2.7 | 6.0 | 12 | 16.6 | 22.5 | 30 | 30 | 30 | 30 |
| Max.momentary tolerance torque kg.cm | 3.7 | 15 | 35 | 69 | 70 | 70 | 70 | 70 | 70 | 70 |
Gear motor technical data : GMP42-TEC3650-1245-xxx| Reduction ratio | 4 | 19 | 51 | 100 | 139 | 189 | 264 | 369 | 516 | 720 |
| Length mm | 26 | 33.5 | 40.5 | 40.5 | 40.5 | 47.5 | 47.5 | 47.5 | 47.5 | 47.5 |
| No-load speed rpm | 1050 | 230 | 85 | 44 | 32 | 23 | 17 | 12 | 9 | 6 |
| Rated speed rpm | 875 | 185 | 68 | 35 | 25 | 18 | 13 | 10 | 7 | 5 |
| Rated torque kg.cm | 0.7 | 3.0 | 7.0 | 14 | 19 | 24 | 30 | 30 | 30 | 30 |
| Max.momentary tolerance torque kg.cm | 2.6 | 11 | 25 | 50 | 68 | 70 | 70 | 70 | 70 | 70 |
Product ApplicationAerospace instruments, astronomical instruments, Label printers, label stripping machine, bar code printers, robots,electronic monitor, beauty equipment, display shelves, vending machines, etc.

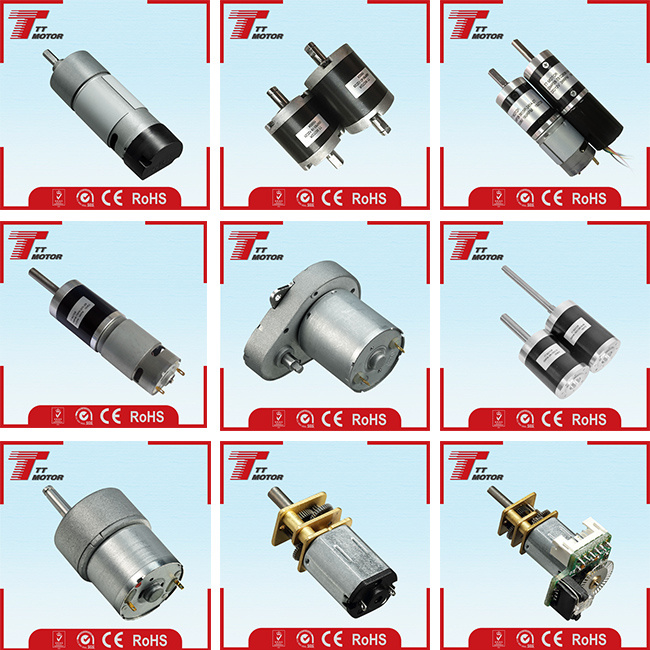

Related Products
Packing & DeliveryPackaging: single carton packing, 100 pieces per box.
Shipping time:
DHL: 3-5 working days ;
UPS: 5-7 working days;
TNT: 5-7 working days;
FedEx: 7-9 working days;
EMS: 12-15 working days;
By Sea: Depends on which country

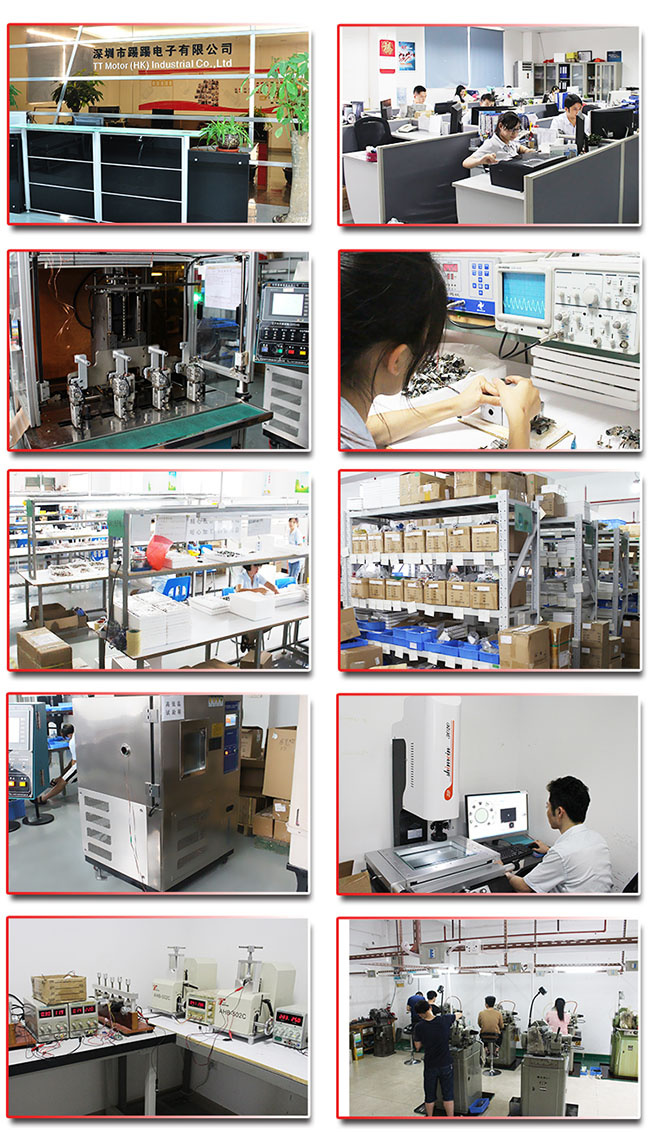

Our CompanyTT Motor (HK) Industrial Co., Ltd has been specializing in micro motors, gear motors and their respective parts since 2000.
