| Prod Model: |
PT-ID003 |
| Power: |
Supply Voltage 12.5~45VDC |
| Output: |
Two Wire 4~20madc |
| Output Display: |
4 Digital Display,5 Digit LCD Display, Pointer Typ |
| Relative Humidity: |
5~98%Rh |
| Startup Time: |
Less Than 5 Sec |
Product Description
Introduction

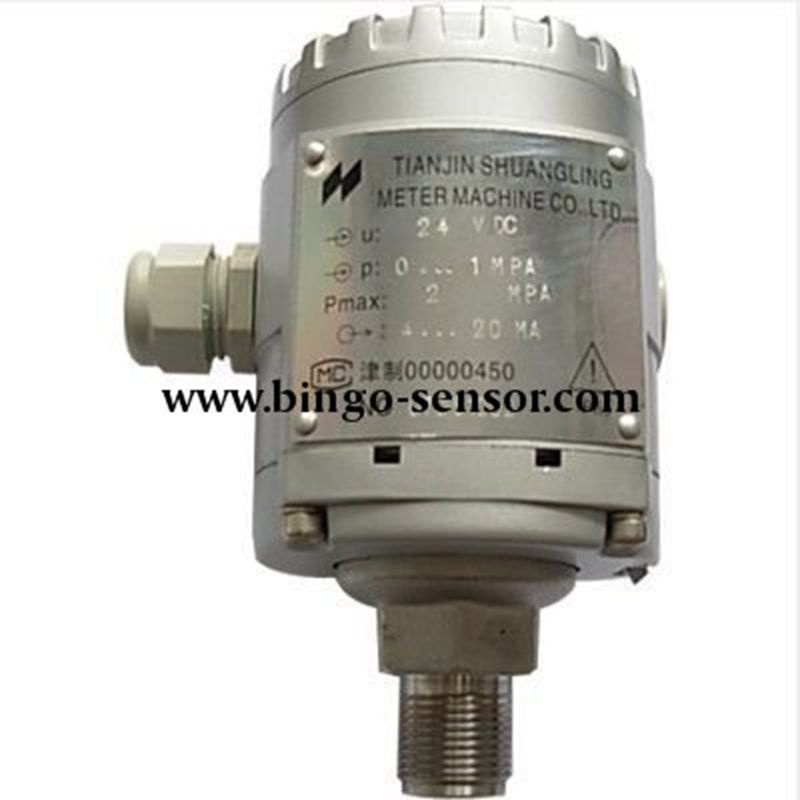

PT-ID003 pressure transmitter adopts ceramic transmitter of advanced international level, matches with high accuracy electric units, and assembled through strict process. It appliesdry-type pressure measuring technique which hasn't medium, which give full scope of ceramic technique advantages. That makes SYB series pressure transmitter has many models, many measuring range, many process connecting type and connecting material, and can be widely used in various lines of petroleum, chemical, electrical, metallurgy, medicine, food and so on. It can measure various environment and medium and is the replacement of traditional product. Also it is your ideal night measuring meters as industry automatic gauge.
Characteristic
*Ceramic measure surface, high anticorrosion
*No extra fluid, no industry pollution.
*High ability of overload resist and impact force resist. Pressure can over up to several to hundreds times of the normal range. (ceramic capacity transducer)
*High static features and have got the advantage over 0.1% FS.
*Due to non extra fluid, transducer has very high accuracy and little affected by temperature.
*High ability interfere resistance
*Easy to installation, reasonable structure, small volume, light in weight, can install in any position and won't influence by the position.
Technical Parameter
| Output | Analog output: two wire 4~20mADC Digital output: two wire 4~20mADC and variable digital signal in accordance with HART AGREEMENT. |
| Power | supply voltage 12.5~45VDC |
| Limit load | Max load resistor Rmax in loop decided by the supply voltage,see the below drawing. HART AGREEMENT require the load resistor not less than 250Ω,not more than 600Ω |
| Communication distance | Max. 1.5Km, multi-address communication can connect 15 smart transmitters Max. |
| Output display | 4 digital display,5 digit LCD display, pointer type. |
| Marking | ExiaII CT5 ;explosion-proof isolation type |
| Zero offset | can positive offset or negative offset,but can not overstep the utmost value |
| Temperature | environment temperature:-40~85ºC (When choose LCD : -20~70ºC ) Medium temperature: -40~104ºC |
| Filled liquid operating temperature | Silicon oil: -29~+149ºC
Inter oil: -18~+204ºC |
| Pressure limit | Thread pattern: 3.45Kpa(Absolute)~13.78Mpa
Flange pattern: 3.45Kpa(Absolute) rated pressure of Flange
Plug-in pattern: 3.45Kpa(Absolute) rated pressure of Flange
Flat pattern: 3.45Kpa(Absolute) rating pressure of Flange |
| Relative humidity | 5~98%RH |
| Startup time | less than 5 sec |
| Capability change | less than 0.16cm3 |
| Damp adjust | 0.20~25sec. |
| Protection | To avoid the datas are modified random,can utilize software or protect switch lock the memory data.
|
| Reference condition | In the condition : No offset, 1.53m capillary fill with silicon oil, 316SS membrane |
| Temperature influence | long-distance transmission fitting( typical) one side with(1.53m capillary long-distance transmission fitting) |
| Flat pattern | error is less than 0.62Kpa/55ºC ,capillary filled with silicon oil, the error increase 0.2 Kpa along with the length increased 1.53m |
| Hread and Flange pattern | error is less than 1.99Kpa/55ºC ,capillary filled with silicon oil, the error increase 0.62 Kpa along with the length increased 1.53m |
| Libration effect | withstand frequency 200Hz at any direction, arouse error ±0.05%URL |
| Power influence | 0.005%/V |
| Load influence | no load influence |
| Install position influence | about 250Pa zero offset, can be eliminate via calibration,no range influence |
| RF interference | drift is ±0.1%span in the condition of 30-1000MHz frequency and the most field intensity 10V/m |
