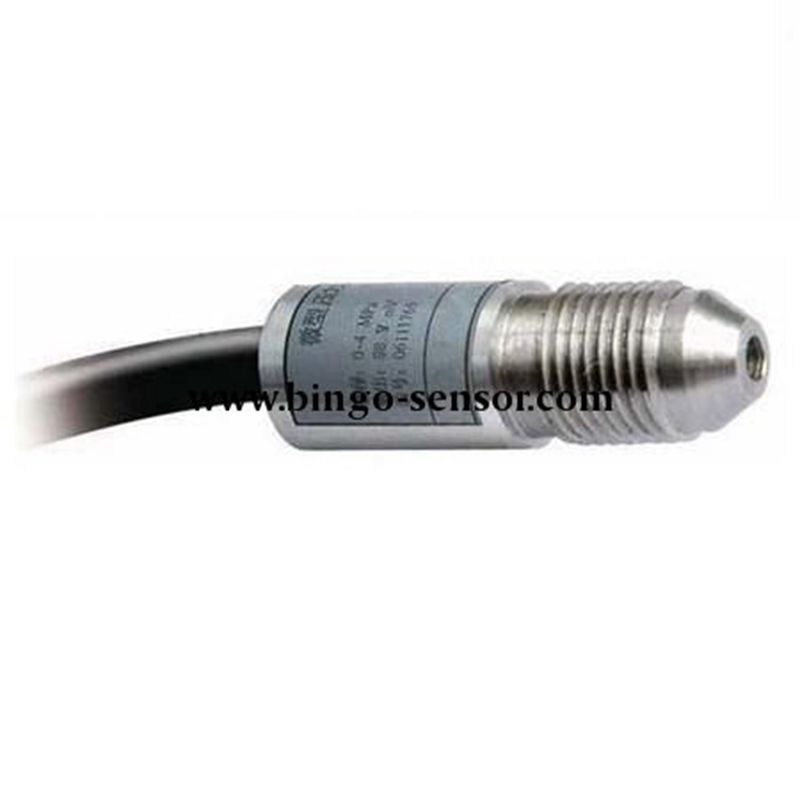

Industrial Pressure Transmitter or Pressure Transducer

Name: Industrial Pressure Transmitter or Pressure Transducer
Brand: all-electronics-online.com
SKU: 726083745
Availability: InStock
Rating: 4.9 (44 reviews)

Price:	US $ 1-11/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	PT-ID012
Pressure:	-100kpa^^0~1kpa^^60MPa^^100MPa
Zero Output:	3mv
Overload Capacity:	150%
Input Impedance:	0.6~6kΩ

Product Description

Introduction
PT-ID012 miniature pressure sensor is the best choice for oil exploration, well testing, hydraulic power testing, material testing, trauma medicine, mechanics of materials and chemical explosion test to detect micro-dynamic testing environment.

Technical Parameter

Pressure range	-100KPa^^0~1KPa^^60MPa^^100MPa
Zero output	V0≤±3mV
Full scale output	VFS=100mV±25%\VFS=50mV±30% \VFS=10mV±30%
Overload capacity	150%
Power supply	Constant current:1~4mA; constant voltage:6~9VDC
Linearity	<±0.1%FS
Repetition	<±0.05%FS
Delay	<±0.05%FS
Input impedance	0.6~6KΩ
Compensation temperature	-10ºC ~+70ºC
Working temperature	-40ºC ~+85ºC
Inherent frequency	400kHz~800kHz
Pressure connection	Φ6, M8×1,M10×1,M12×1
Electrical connection	Cable
Medium	Liquid or miniature high frequency, high pressure
Protection Grade	IP65
Explosion-proof Grade	ExiallCT5

Our service:

1). Delivery in time,delivery time is 7 days for sample and 15 working days for bulk order;
2). Strong production capacity and strict quality control system;
3). Your inquiry and problems related to our products or prices will be replied in 24 hours;
4). Well-trained and experienced staffs to answer all your inquires;
5). After-sale tracking service for all of our clients;
6). OEM is available; small quantities, mixed bulk orders are also welcome;
7). Payment: L/C, D/A, D/P, T/T, Paypal , Western Union, MoneyGram;
8). Delivery way: UPS, DHL, TNT, FEDEX, EMS, CHINA POST.

Guarantee:

1).12 months warranty for most of our products;
2). We will arrange delivery of the goods on time;
3). Within the warranty period, we will bear all the quality problem of our products;
4). Beyond the warranty period, we will despatch the replacement parts to help fix the products, but the parts will be charged;
5). Without any problem, we will gain the feedbacks of our products to help improve better products.

If you need more information about the product, click here: www.bingo-sensor.com

Bingo Industrial and Trading Company started to run businiess since 2006, which is located in Wenzhou Yueqing ---- The world-famous city for low-voltage electric apparatus.

We owns followed two subsidiary corporations:

Bingo sensor Technology Co., Ltd. ----- concentrates on pressure, level and flow control product.

Yueqing tongfa electronic Co., Ltd. ----- is engaged in electronic&electrical product, security product.

After several years development, Bingo now becomes a professional supplier for

* Pressure, level and flow control product applied to:

Water supply system

HVAC

Household appliances (refrigerator, Furnace, heater, dish-washing machine,

Water dispenser, food waste disposer and so on)

Steam control system

Vehicle

Oil transporting system

Medical equipment

* Security product

Warning light

Roadway safety

Mining safety

Alarm sire

* Electronic&Electrical product

Tact switch

Micro switch

Toggle switch

Foot switch

Earphone jacket

Industrial plug&socket

With many years' business accumulation and good cooperation with more than 150 companies, we are capable to offer our clients products with the competitive prices, satisfied quality and excellent services. Part of our products own CE, UL, TUV certificate.

At present, Bingo Industrial and Trading Company has 50-60 employees. We have set up business relationships with customers from more than 50 countries and regions. Through running business honestly, we earned the reputation from both local government and oversea clients.

We strongly insist on the principle of "quick response, the best service, satisfactory quality, and competitive price", and sincerely hope that every customer around the world would have the feeling of "Bingo" after the first business cooperation with us.

Looking forward to a win-win relationship with you!
