Industrial Pressure Transmitter with Digital Display

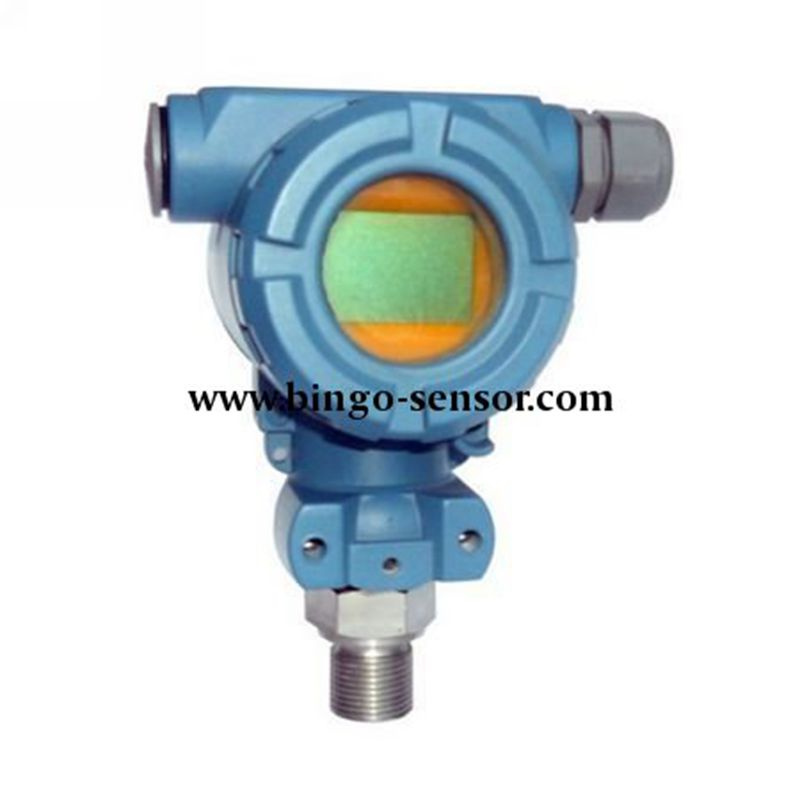

Name: Industrial Pressure Transmitter with Digital Display
Brand: all-electronics-online.com
SKU: 726083515
Availability: InStock
Rating: 4.8 (49 reviews)

Price:	US $ 1-11/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	PT-ID004-2
Basic Error:	0.5%F.S
Measurement Range:	10kpa~60MPa
Linearity:	0.2%F•s
Power Supply:	24VDC

Product Description

Introduction
Intelligent pressure transmitter PT-ID004-2 select high-precision, high stability and high reliability diffused silicon pressure sensing element and imported high-quality integrated circuits, which is a high precision, reliable, good stability, long service life industrial pressure transmitter for measuring the liquid level of the liquid or gas pressure, and a variety of liquid. Live remote pressure and level measurement instrumentation and converted into a standard electrical signal pressure or level. PT-ID004-2 pressure transmitter, because of its excellent performance, instead of imported high-grade pressure transmitter for high measurement precision measurement and control requirements of the occasion, compact structure, light
Weight, three buttons can be used on-site free configuration

Techncial Parameter

Basic error	0.25%F•S. 0.5%F.S
Measurement range	-0.1MPa~0; 0~(10KPa~60MPa)
Linearity	>0.2%F•S
Temperature drift	<±0.025%F•S/ºC (0-50ºC )
Long-term stability	≤0.02%F•S/year
Response time	≤10mS
Power supply	24VDC (or 12VDC-36VDC arbitrary constant voltage power supply)
Output	4~20mA(O~10mA 1~5V O~5V 0~1OV)
Load resistance	0~600Ω(Rz=(V-12)/0.02 V is supply voltage) when output is 0~10mA, load resistance is 0~1.2kΩ
Pressure overload limit	the max pressure rated 1.5 times
Ambient temperature	-20~ +85ºC
Measured medium temperature	20~ +85ºC (>85ºC can use radiating tube)
Recommend storage temperature	-20~ +125ºC
Sensor interface (pressure interface)	M20×1.5,1/2NPT or customized
Electrical interface	M20×1.5
Installation site	unlimited
Shell protection level	IP65
Sensor interface material	1Cr18Ni9Ti
Sensor isolated diaphragm material	316LSS
Shell material	Al.
Weight	850 g
Power	< 0.5 W
