Industrial Pressure Transmitter

Name: Industrial Pressure Transmitter
Brand: all-electronics-online.com
SKU: 747632245
Availability: InStock
Rating: 4.3 (33 reviews)

Price:	US $ 300/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	CXPTB-213
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Range:	-1~0~200MPa
Accuracy:	0.25%Fs, 0.5%Fs
Nonlinearity:	Full Range X 0.2%
Reliability:	Full Range X 0.05%
Output:	4-20mA, Hart Option
Input Voltage:	24(9-36V)DC (Standard)
Operating Temperature:	-20~80c
Compensated Temperature:	0~70c
Overload Pressure:	150%Fs
Wetted Parts:	Stainless Steel
Type:	Pressure Measurement

Product Description

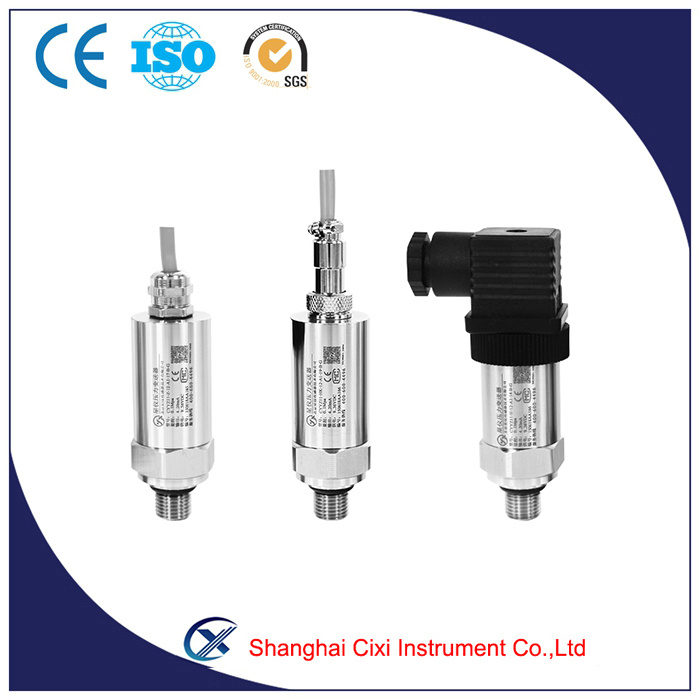

CXPTB-213 Industrial Pressure Transmitter

Description

CXPTB-213 adopts ceramic or diffused silicon sensor chip, with stainless steel encapsulation, smart figure. This series is especially suitable in the occasion where Installation space is restricted and has the feature of wide range temperature compensation, high accuracy, non-calibration, wide range, and OEM Process. This model has wide application in hydraulic pressure, auto-controlling house, constant pressure water supply, loading machine ,and liquid pressure measuring and controlling in automatization fields.

Application

Mechanical Engineering Industry
Hydraulic and level measurement
Gas tank pressure monitoring
Industrial test and control
General industrial applicastions

Feature

Various industrial standard signal output
Various electrical connector available
Certain stock for shortening delivery time
High accuracy, free of calibration
compact dimension design

Specification

Range: -1~0~160MPa
Accuracy: 0.5%FS
Nonlinearity: 0.2%FS
Reliability: 0.2%FS
Output: 4-20mA(2 Wire ),0-5V, 0.5-4.5V
Input voltage: 24(8-36V)DC
Operat Temperature: -20~80ºC
Compensated temprature: 0~75ºC
Overload pressure: 150%FS
Medium material: 316 stainless steel
Electric connector: Min DIN, M12, Bendix connector, cable, Etc(Customer design)
Process connector: G1/4, G1/2, 1/2NPT, 1/4NPT, M12*1.5(Customer design)

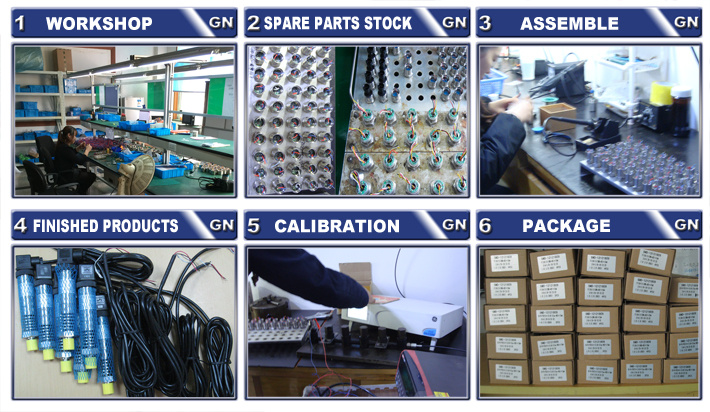

Production Line

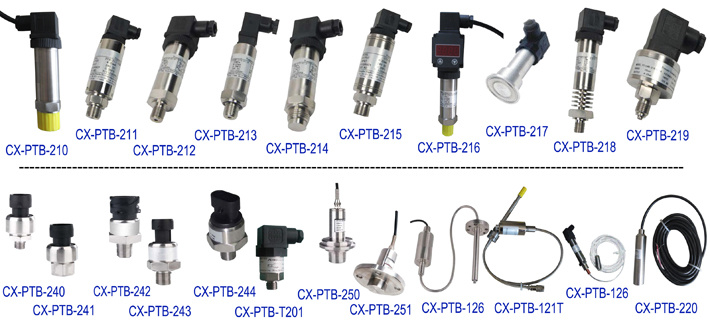

Series of Products

Group Photo

Payment Terms

1.Loading Port: Shanghai China
2. Samples Leading Time: 3-7 working days
3. Delivery Time: Within 7-15 days after payment
4.Payment: T/T, Western Union, Paypal

After-sales service

We promise to deliver the following after-sales service:
1. Warranty: The warranty period is 12 months starting from the shipping date;
2. Customers will enjoy free repair services for failures found within the warranty due to manufacturing quality;
3. For on-site services not arising from manufacturing quality, we shall charge a certain service fee at our discretion based on actual charges incurred such as travel expense;
4. We provide paid repair services for meter damages not arising from manufacturing quality issues or meter damages not within the scope of warranty.

Our Integrity Promises your Quality !

Please contact with me, I will provide you professional service and high quality products.

Electric connector	2wire(4-20mA)				3wire (0-10V, 0-5V, 0.5-4.5V)
Hirschman 3 2 GSP	Pin	Function		Color	Pin	Function			Color
	1	E+/S+		Red	1	E+			Red
	2	E-/S-		Black	2	S+			Blue
	3	---		---	3		E-/S-		Black
M12,4Pin 1 2 4 3	Pin	Function		Color	Pin	Function			Color
	1	E+		Brown	1	E+			Brown
	2	---		---	2	---			---
	3	S+		Blue	3	S+			Blue
	4	---		---	4	E-/S-			White
Cable	Function		Color		Function			Color
	E+		Red		E+			Red
	S+		Black		S+			Blue
	---		---		E-/S-			White

Cixi flowmeter Co., Ltd. Was established in 2008 and since then has been dedicating itself to research and manufacture of various kinds of flowmeter. With sophisticated experience in technology and management, CIXI Flowmeter has made a name for itself as an excellent manufacturer of various kinds of flowmeter. In 2007, we have especially set up Shanghai Cixi Instrument Co. Ltd for handling the deals of Export.

Thanks to outstanding performance of products, CIXI Flowmeters are being applied in more and more fields where there' S liquid to measure. CIXI Flowmeters have found users in many countries besides China, such as Malaysia, India, Thailand, Vietnam, South Africa and so on. Increasing number of users are finding that CIXI Flowmeter are kind of product with super performance and reasonable price.
