| Prod Model: |
TSQ |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Antenna: |
Internal Type |
| Protection Degree: |
Transmitter IP64, Receiver IP65 |
| Power Supply: |
1.5V (AA)*4PCS |
| Security Code: |
4.2 Billions Sets |
| Application: |
Industrial Machinery |
| Type: |
Button |
| Certification: |
CE |
| Transmission Distance: |
50-100m |
| Material: |
Plastic |
| Battery Type: |
AA Battery |
| Voltage: |
AC 48V, 110V, 220V, 380V, 415V |
Product Description

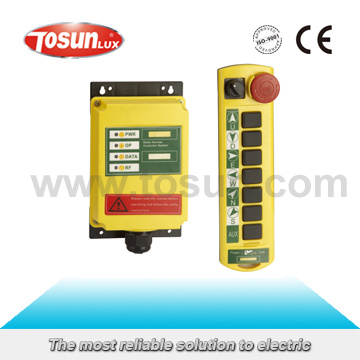

Industrial Remote Control Wireless Transmitter Push button SwitchFeaturesAdvance program design, quick and good performance on movements.
PA transmitter housing.
Water/ shock/ dust proof.
Single-raw button transmitter, compact and lighter design, ensure safe and convenient operation.
Random security code up to 4.2 billion sets, each transmitter has its own unique ID code.
Receiver with 4-LED, quick, simple judgment for operation status and after services.
Specification of TAC-A Pushbutton Switch
| Item | Transmitter | Receiver |
| Operation Distance | 100m | -100dBm 100m |
| Frequency | FM433Mhz(20CH)
FM868Mhz(20CH) | FM433Mhz(20CH)
FM868Mhz(20CH) |
| Output Power | <10mW | |
| Antenna | Internal Type | Internal Type |
| Temperature | 0ºC~+75ºC(no battery inside) | -10ºC~+75ºC |
| Power Supply | 1.5V (AA)*4pcs | |
| Source Voltage | - | AC:48V, 110V, 220V, 380V, 415V 50/60Hz |
| Enclosure | IP64 | IP65 |
| Consumption | <17mA(stand by:<20mA) | <12W |
| Security Code | 4.2 billion sets | 4.2billion sets |
| Weight | 235g (excluding batteries) | 700g (excluding batteries) |
| Model | DT201 | DT201C | DT201F |
| DCV | 1000V ±0.8% |
| ACV | 750V ±1.2% |
| ACA | 200-1000A ±2.0% | 20k-2M ±1.0% | 20K-200K-2M ±1.0% |
| OHM | 200-2k ±1.0% | 20k-2M ±1.0% | 20k-200k-2M ±1.0% |
| Temperature | | -40~100ºC ±0.0% | |
| | -40~1832ºF
±3.0% | |
| Frequency | | | 2KHz ±3.0% |
| Continuity Buzzer | Yes | Yes | Yes |
| Date Hold | Yes | Yes | Yes |
| Accept Plug-insulation Tester Adapter DT261 | Yes | Yes | Yes |
| Jaw Caliber | 55mm |
