Industrial Special UPS with 10-160kVA

Name: Industrial Special UPS with 10-160kVA
Brand: all-electronics-online.com
SKU: 812817075
Availability: InStock
Rating: 4.3 (92 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	CNI330
IP45 Degree:	Yes
Phase:	Three Phase
Type:	On-line
Protection:	Unbalanced Loads

Product Description

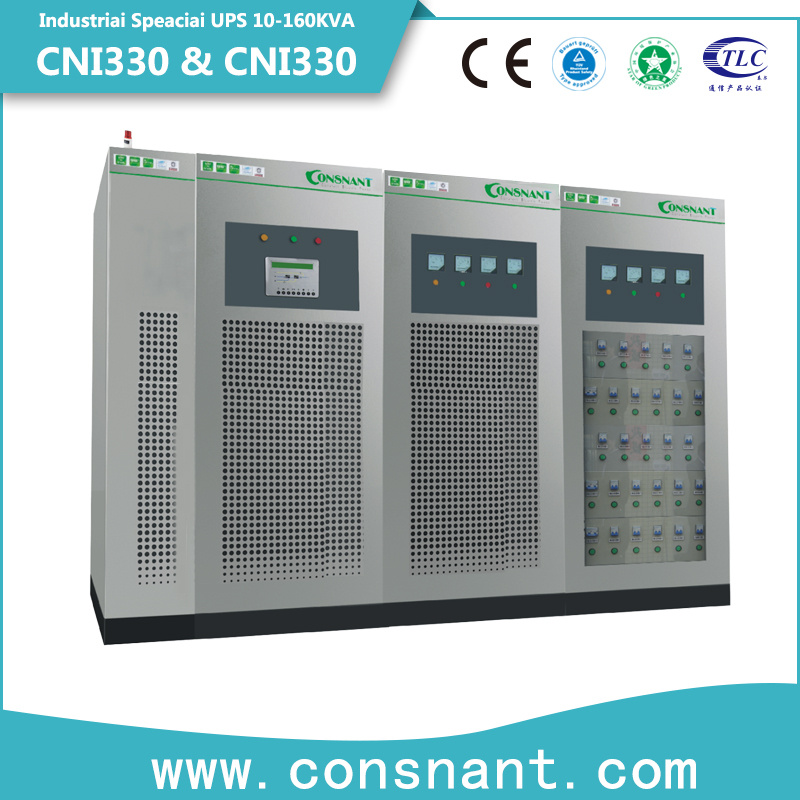

CNI330 Series Industrial Special Online UPS
10-200KVA (3Ph in/3Ph out)

Technical Specification:

Model Papacity(KVA)	10KVA	15KVA	20KVA	30KVA	40KVA	60KVA	80KVA		100KVA	120KVA
Capacity	8KW	12KW	16KW	24KW	32KW	48KW	64KW		80KW	96KW
lnput
Rated voltage	380/400 Vac three-phase
Voltage range	±20%
Frequency range	50/60HZ±5%
Power factor	≥0.8
Current harmonic distortion	<5%with harmonic filter
Soft Start	0-100% in10"
Bypass Input
Rated voltage	400Vac three-phase
Permitted voltage range	±15%(selectable from ±10% to ±25% from front panel)
Rated frequency	50/60Hz
Permitted frequency range	±2%(selectable from ±1% to ±5% from front panel)
Standard features	BackFeed portection; split bypass line
Batteries
Type	Maintenance-free lead-acid VRLA AGM / GEL;NICd
Maximum recharge current(A)	0.2 X C10
DC Voltage	384VDC							432VDC		480VDC
AC ripple voltage	<1%
Inverter output
Number of phases	3+N
Rated voltage(V)	400Vac
Regulation of the output voltage	348÷424Vac phase/neutral(from contril panel)
Crest factor(Ipeak/Irms)	3:1
Static stability	±1%
Dynamic stability	±5%
Frequency	50/60Hz configurable
Overload	110% 125% 150% of the rated current for 5h/10'/1'
Frequency stability	±0.05% on mains failure;±2%(selectable from ±1% to ±5%)with mains supply present
System
Remote signaling	Volt free contacts
Remote controls	EPO and Bypass
Communication	RS232 + romote contacts
Operation temperature	0ºC/ + 40ºC
Relative humidity	<95% non condensing
Colour	Light grey (RAL 7035)
Noise	54dBA at 1m				50-65dBA at 1m
Protection degree	IP42
Efficiency Smart Mode	up to 98%
Compliance	Safety:EN 62040-1-1(Directive 2006/95/EC); EMC:6200-2(Directive 2004/108/EC)
Weight(KG)N.W	200		220	230	290	340	440			520
Dimensions:(WxDxH)mm	6008001900									12008001900

Shenzhen CONSNANT Technology Co., Ltd. (simple name: CONSNANT) is a professional manufacturer engaged in research, development and production of UPS (Uninterruptible Power Supply) including the Modular UPS, Outdoor & Indoor UPS, Industrial special UPS, Low Frequency & High Frequency Online UPS and Solar Power System both for home appliance and telecom equipments.

Our product has obtained the CE, ISO 9001, ISO 14001 and local Chinese TLC certificates. Having reached good sales results in China, we are now expanding our sales overseas.

We are proud of the fact that most of our company's engineering staff is well-qualified and has gained experience in relevant fields more than 10 years. In order to protect your equipment from electrical supply network instability, we offer innovative solutions that obtain higher availability systems, improve efficiency and offer flexible solutions to meet specific needs and range of application. The UPS product is widely used in data and computing centers, finance institutions, banks, within industry and medical fields.

We welcome any kind of collaboration, will enjoy any opportunities of dealing with new costumers: From distributors to ultimate consumers, undertake both wholesale and retail orders, including the sale of finished goods or parts.

If you start work with us, you will not only get high-quality product at reasonable price, but also maintain the profitable conditions for further years.

We are located in the world-famous High-Tech center - Shenzhen city, China. Our factory is close to airport. If you are lucky to visit the city, you are kindly welcomed to visit our factory.
