| Prod Model: |
Cartridge Heater |
| Voltage: |
Customized |
| Power: |
Customized |
| Warranty: |
One Year |
| Tube Material: |
SS304, SS316, SS321, Incoloy600/800/840 |
Product Description
Industrial Stainless Steel Cartridge Heater Heating Element Non-Standard Customized
Element component
1. China and Europe High-grade nickel chromium resistance wire, Germany BGH
2. Japan and USA MgO Rod,
3. Seamless Stainless steel tube
4. Swaged in wire or Terminal wire
• Special sizes, wattages, and materials are available upon request;
• Custom-designed to meet your specifications;
• Pin leads are available
Product Details
| Name | Industrial Stainless Steel Cartridge Heater Heating Element Non-Standard Customized |
| Diameter(mm) | 2.5-32.5mm (Non-standard can be customized) |
| Length | 10mm - 6000mm |
| Max Wattage | 40w/cm2 |
| Application | Mold Tools,Packaging Machinery,Plastic Process Machinery, Food Process Machinery,Printing...etc |
| Max temperature | 927 ºC |
| Insulation resistance (500 [V-DC] unheated) | ≥50MΩ |
| The maximum leakage current (253 [V-AC] unheated) | ≤0.5mA |
| High voltage stability (temperature) Rated voltage | ≤24V -500V-DC> 24V 1500V-AC |
| Wattage Tolerance | +5% - 10% (closer tolerances are available upon special request) |
| Input voltage | 12V-440V (non-standard can be customized) |
| Terminal unheated length | <3mm-20mm |
| Non-terminal unheated length | <3mm-20mm |
Connecting wires:
a. Glass fiber insulation nickel core wire (temperature 450 degrees -750 degrees)
b. Crimp Teflon wire (temperature 250 degrees)
c. Crimp silicon insulated wire (temperature 200 degrees)

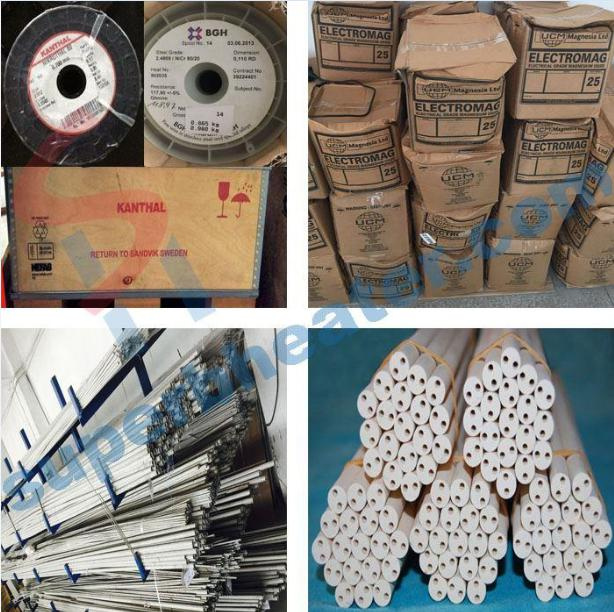

High-quality materials
Insulation: UCM(UK) Magnesium Oxide Powder ; KANTHAL , BGH resistance wires , SS321Seamless Stainless steel tube; OTC(USA) Tateho (Japan) mgo rod...

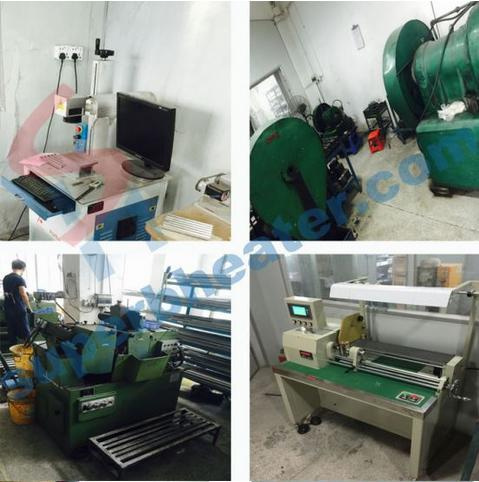

Advanced Production And Testing Equipment

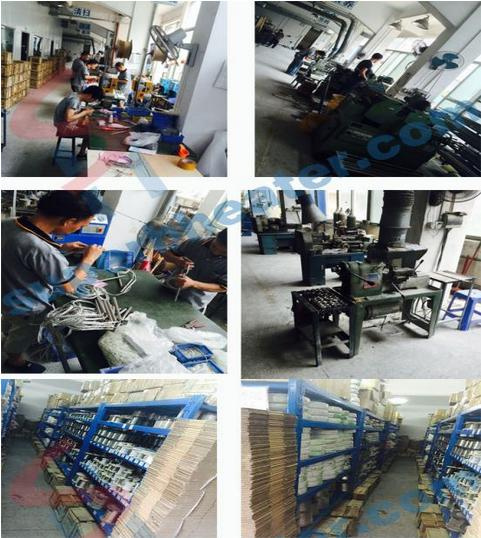

Work Shop and Stock

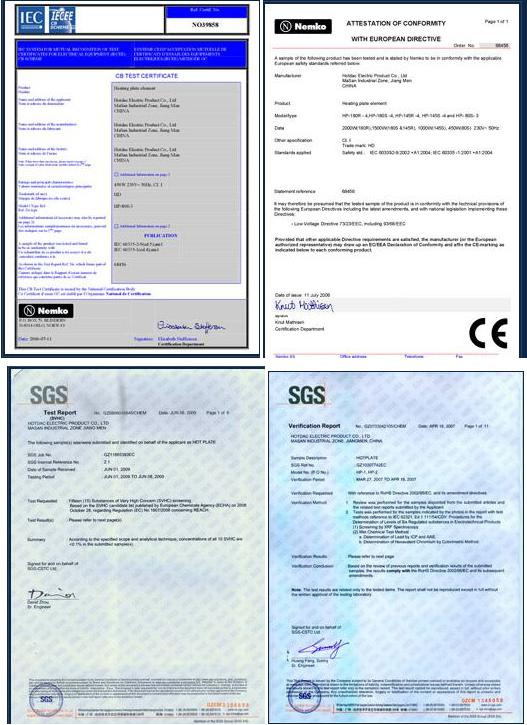

Our Certificate

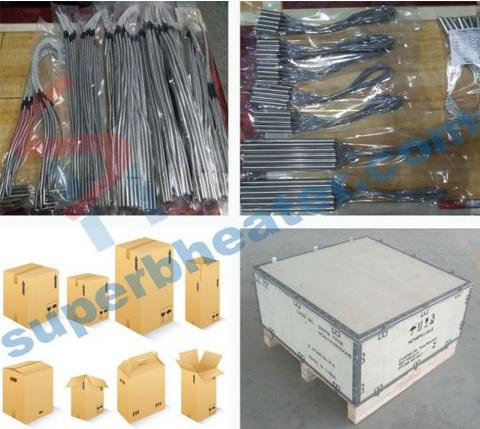

Packing and Delivery
1. Packing details: Industrial Stainless Steel Cartridge Heater Heating Element Non-Standard Customized
plastic bag + carton
2. Delivery time: About 5-10 days ( according to quantity )
3. Delivery ways: by air, sea or express
Since 1985 years, Superb Heater Technology focused on the production of Industrial Stainless Steel Cartridge Heater Heating Element Non-Standard Customized, which is well-known as one of the leading manufacturers and suppliers of Industrial Stainless Steel Cartridge Heater Heating Element Non-Standard Customized. In the past years, we owned strong reputation for the high quality, reliable performance and strong durability of our products. Should you have interested, please feel free to contact us.
Shenzhen superb heater technology Co., Ltd, Founded in 1985, Start is a state run Magnesium Oxide factory, After privatization reform To become a professional to provide all kinds of electric heating products of the comprehensive private joint-stock companies, After years of development company now grown to have include: ChaoHu heating material fitting, JiuDing machinery and spare parts, LiLin cartridge heaters, chaohu band coiling heaters, JXC Industrial heaters five plants, more than 200 employees, assets of more than $ 5 million, Products include various types of industrial heater, cartridge heater, hot runner, thermocouples, band heater and a variety of heater materials and heater equipment to meet customers one-stop shopping for all kinds of heating element, heating materials and heating equipment needs.
Over the years we are committed to technology and product quality improvement, many products similar products meet international quality, in China in the lead, swaged-in leads cartridge heater and diameter less 4mm cartridge heater as China's first single, cost-effective products to give our customers highly recognized, it has been to establish and maintain long-term cooperative relations with more than 700 customers in over 40 countries.
We will insist on our stable style to establish good image in both customers and our partners. We have been insisting on the "REDUCING THE COST AND GIVING ADVANGTAGE TO CUSTOMERS " To provide customers with better products and services, and grow with customers
After long-term accumulation, we have set up agents and partners in India, Dubai, USA, Russia, Brazil, Argentina, Thailand, Korea and other countries to provide convenient and quick service
