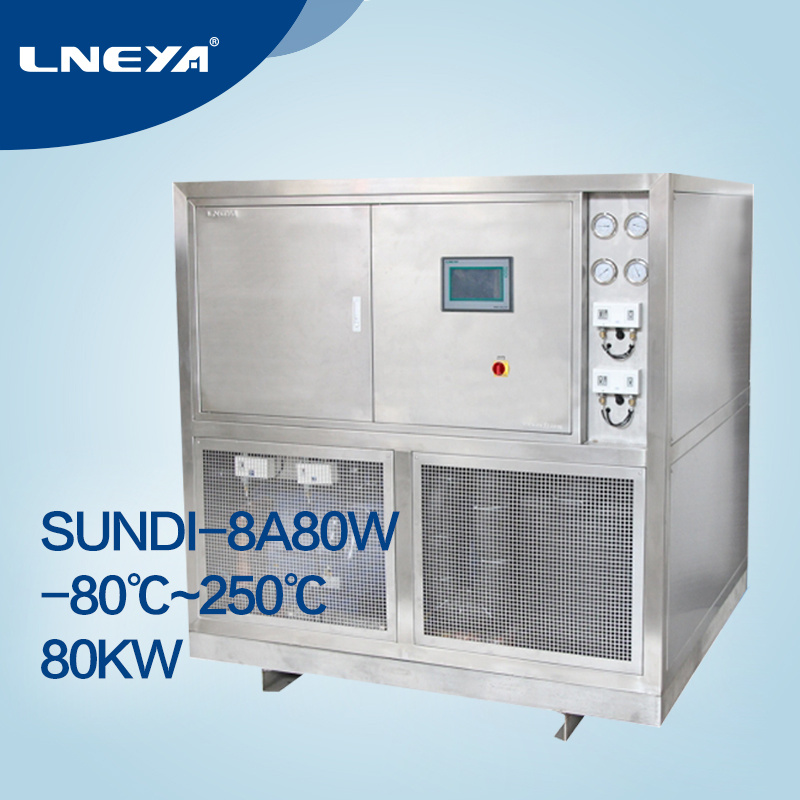

Industrial Water Cooled Chiller Sundi-8A80W

Prod Model:	Sundi-8A80W
Temperature Range:	-80~250degree
Temp. Accuracy:	±1 Degree
Heating Power:	80kw
Cooling Capacity:	16kw@-75 Degree
Circulation:	Max250L/Min
Evaporator:	Emerson
Oil Separator:	Emerson
Connection Size:	Dn50 Pn10
Dimension:	2700*1600*2050mm

Product Description

Dynamic Temperature Control System
 Applications:
   Reactor Systems Autoclaves,
   Pilot Systems,
   Mini Plant Systems,
   Scale up for Operational Development,
   Double wall reactors,
   Advanced-Flow Reactors,
   Distillation Systems,
   Material Testing,
   Combinational Chemistry,
   Semiconductor Industry,
   Vacuum Chambers.
Advantages & Functions
   1.Working temperatures
   2.Previously unachievable performance
   3.Intelligent temperature control
   4.Maximum process stability and reproducibility
   5.The fastest heating and cooling rates
   6.High Cooling Power
   7.Large temperature range without fluid change
   8.Increased thermal fluid life
   9.Incredibly compact
   10.Brilliant 4 inch, 7 inch, 10 inch TFT touch screen with graphic display
   11.Comprehensive warning and safety functions
   12.Rapid cooling down from high temperature


Structure design
A fully closed piping design, high efficiency plate heat exchanger used to reduce the demand   for the thermal fluid utilization while providing the system to achieve the rapid ups and downs in temperature The whole system is a closed liquid circulation system with the expansion of container, expansion of the container and the liquid circulation is adiabatic, and do not participate in liquid circulation, only mechanical connection, regardless of the temperature is a high temperature or low temperature, the tank temperature is limited to 60ºC. Therefore, during the process the risk of imbibing and volatilization of the heat conducting medium is reduced. There following advantages for the user.

Only the heat conduction medium in the expansion container touches the oxygen in the air. (The container temperature is limited to 60ºC).
No volatilization of the heat conducting medium at high temperature.
No need to change the heat conducting medium. Continuous control of the temperature of the below range can be done without rising the pressure: -80ºC~190ºC, -70ºC~220ºC, -88ºC~170ºC, -55ºC~250ºC, -30ºC~300ºC.






   Display funcation

Cooling heating Temperature Control System Display - The Refrigeration system's multi- image displays various information.



Display function:
1. Displays all the kind of process control temperatures.
2. Shows the liquid level of the heat conducting medium in the expansion vessel.
3. Shows indication for refrigeration system working.
4. Shows indication for heater working.
5. Shows indication for circulation pump working.
6. Displays the temperature control (materials temperature control pattern, heat conducting medium temperature control ).
7. The temperature upper limit, lower limit control can be set.
8. The temperature difference between jacket & reactor material can be set.
9. Shows the alarm to add the liquid when it is empty.
10. The refrigeration compressor can be set to operate manually or automatically.
11. Simple Menu to use.

Process Control Schematic diagram
Change the control settings of the method, the response as soon as possible in the process of the system lags behind, be the smallest system overshoot. Controlled by two PID (PID is a variable in each group) control loop structure, known as the two sets of control loops: the main circuit and from the circuit, the main control loop from the loop output as the settings.
System with feedforward with PV, the master PID loop operation results of the PV output and feedforward signals as the composite of the settings from the control loop, through such control of the temperature gradient to ensure the accuracy of temperature control system.






       High repeatability of results control



     Circulation Pump

Use high temperature resistant low temperature magnetic drive pump or a leak-free high and low temperature shield-driven pump, reduce the risk of system leakage. At the same time the system has the advantages of low noise and big traffic flow.




Connecting Pipe






LNEYA Dynamic Temperature Control systems in practice
In comparison to other thermal control systems, Dynamic Temperature Control systems differ sometimes considerably in their thermodynamic characteristics. In practice Dynamic Temperature Control systems offer definite advantages in your work: noticeably shorther heating and cooling times, better stability and reproducibility through the entire process chain, greater safety for expensive glass reactors and the contained substances, together with simple and easy operation


Heat Conduction Medium
It is important to choose the suitable heat conduction medium, to make sure that system works stably. To choose the suitable medium according to the working temperature of the system is essential.
For SUNDI-755W, You can purchase oil similar to LNEYA's KDOC-210 technical parameter.
See below:


  Technical Parameters:

Model		SUNDI-8A80W
Temperature range		-80ºC~250ºC
Control Mode		Feedback PID + Our special dynamic control calculation, PLC controller
Temp.control		Option:Process temperature control mode
Program Editor		20 programs, each program can edit 45 steps.
Communication Portocol		MODBUS RTU Protocol,RS485 interface
Temp. feedback		The temperature of four points: the inlet and outlet of heat-conducting  medium, heater and material in reactor(External temperature sensor)
Temp. accuracy		±1ºC
Heating power		80kw
Cooling capacity	250ºC	80kw
	100ºC	80kw
	20ºC	80kw
	0ºC	80kw
	-20ºC	80kw
	-40ºC	65kw
	-60ºC	32kw
	-75ºC	16kw
Circulation pump		Max250L/min 2bar
Compressor		Dorin semi-hermetic
Expansion valve		Emerson
Oil separator		Emerson
Evaporator		KAORI plate heat exchanger
Operation Panel		7-inch color touch screen controller, temperature curve record, data export  to Excel format
Safety protection		Self-diagnosis function; freezer overload protection; high pressure switch,  overload relay, thermal protection device, liquid low level protection, high  temperature protection and temperature fault protection.
Closed circulation system		The whole system is full closed circulation, there is no oil mist at high  temperature and no water vapor at low temperature, pressure do not rise up  when system is running. The system will supply oil automatically at low  temperature.
Refrigerant		R-404A R23 mixed Refrigerant
Connection size		DN50 PN10
Water-cooled type W(cooling water@30ºC)		30m³/H 1.5bar~4bar
water-cooled condenser		shell and tube exchanger(standard)
Dimension(mm)	water-cooled	2700*1600*2050
Weight	water-cooled	2600kg
Power		AC 380V 50HZ 138kw(Max)
Case material		SUS 304
Optional		Optional Ethernet interface, configure the computer operating software
Optional		Optional outside touch screen display controller(separated),the  communication line distance is 10 meter.
Optional		Water condenser use plate heat exxchanger(request for high quality water)
Optional		Optional explosion-proof touch screen control system(ExdellBT4),the communication line  distance is 15 meter.
Optional Power		440V~460V  60HZ  three-phase source
