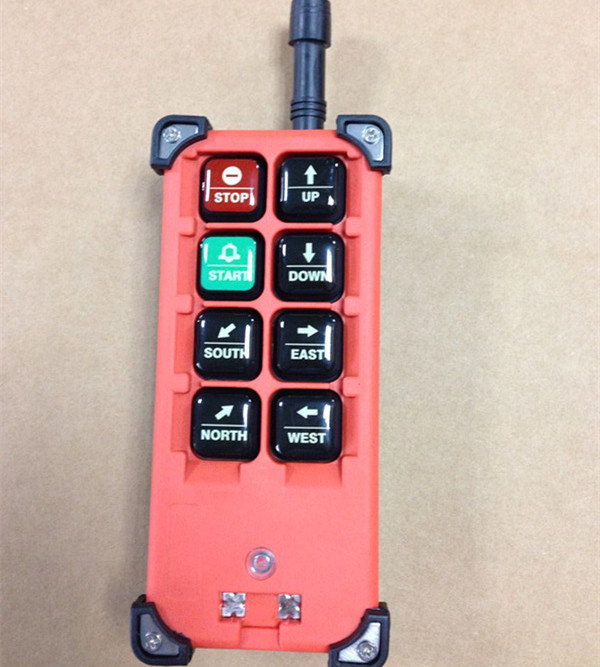

Industrial Wireless Remote Control for Crane with Telecrane Brand (F21-E1B)

Prod Model:	F21-E1B
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Item:	Remote Control for Crane
Brand Name:	Telecrane
Speed:	Single Speed
Usage:	Overhead Crane
Transmitter Type:	Handheld
Buttons:	Push Button
Application:	Industrial Machinery
Signal Transmission:	Radio Waves
Type:	Button
Certification:	CE
Universal:	Universal
Transmission Distance:	>100m
Voltage:	3V
Material:	Plastic
Battery Type:	AA Battery

Product Description

Telecrane Industrial Wireless Radio Remote Control for Crane with CE Certificate (F21-E1B)

Brief information:

1. More than 10 years researching and exporting experience in Radio Remote Control industry.
2.  Well and high quality control, all working process according to ISO9001:2008.
3. CE, FCC & ISO certificates.
4. One year warranty.
5. Sample order acceptable.
6. OEM acceptable.


Specification:

Application	Overhead cranes, hoist ,chain hoist and other industrial machine.
Frequency	310.0325~331.165Mhz
Frequency generation:	Crystal (plug in)
Channel	80
Channel Spacing	0.2675MHz
Control motions	6
Control distance	Up to 100m
Certificates	CE, FCC, ISO9001:2008
Number of push button	6 Single speed push button+1 start+1 Emergency stop button.
Unique code	Over 4.3billon unique ID codes .
Working temperature	-35°C ~ +80°C
Enclosure protection class	IP65
Transmitter power	AA-size batteries
Receiver power	AC 380v/220V/110v/48v/ 36v/24v or AC/DC12V
Output capacity	Full sealed relay output with 5 amperes
Warranty	1 year
Material	glass fiber

Standard configuration:
                          One transmitter;
                          One receiver;
                          One 1.8 m cable connect with receiver;
                          One operation and maintain manual.


Products Features:
* 6single speed push button+1start button+1 stop button.
* Control points are up to 6.
* With the battery voltage alarm device to cut off the circuit when voltage is insufficient.
* With the Rotate key switch to guarantee the safety.
* Set the internal functions by computer interface.
* Up/down, east/west, south/ north push button can be set mutual inhibition or not.
* Power button can be set start, speed up, jump strokes, ordinary etc.


Products Application:
CD single speed electric hoist or single speed electric chain hoist with  hook,monorails ,single  hook /single speed hoist crane, and used for the industrial remote control which are under10 connections.


If you are interest this products; please feel free to contact us
