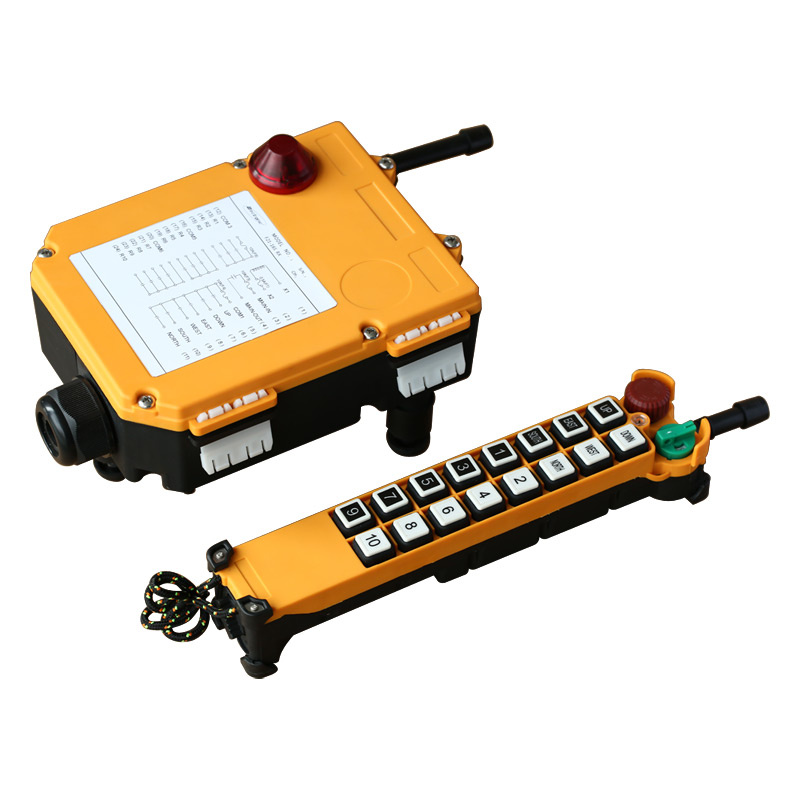

Industrial Wireless Remote Controller for Crane (F21-16s)

Prod Model:	F21-16s
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Item:	Wireless Remote Controller
Using:	Wireless Remote Control for Crane
Transmitter:	Push Button Remote Control
Application:	Industrial Machinery
Signal Transmission:	Radio Waves
Type:	Button
Certification:	CE
Universal:	Universal
Transmission Distance:	>100m
Voltage:	3V
Material:	Plastic
Battery Type:	AA Battery

Product Description

Industrial Wireless Remote Controller for Crane(F21-16s)

Specifications

wireless remote control
2000 m workshop
10 years R&D experience
CE, FCC& ISO certificates
Factory mnaufacture



 F21-16S industrial electric winch wireless remote control with ISO9001 Certificate


1. More than 10 years researching and exporting experience in Radio Remote Control industry.

2. More than 20 people R&D working team, have the ability to research and develop new product independently.

3. Have 15 production lines. we also have many production machines such Printing circuit board machine, SMT

 machine, automatic wave soldering machine, automatic soldering robot, etc. also have many testing machine.

4. Well and high quality control, all working process according to ISO9001:2008.

5. CE, FCC & ISO certificates.

6. OEM acceptable.

7. One year warranty.



Specifications:


Application	Overhead cranes, hoist ,chain hoist and other industrial machine.
Frequency	310.0325~331.165Mhz
Frequency generation:	Crystal (plug in)
Channel	80
Channel Spacing	0.2675MHz
Control motions	16
Control distance	Up to 100m
Certificates	CE, FCC, ISO
Number of push button	16 Single speed push button
Unique code	Over 4.3billon unique ID codes .
Working temperature	-35°C ~ +80°C
Enclosure protection class	IP65
Transmitter power	AA-size batteries
Receiver power	AC 380v/220V/110v/48v/ 36v/24v or AC/DC12V
Output capacity	Full sealed relay output with 5 amperes
Warranty	1 year
Material	glass fiber




Standard configuration:

 One transmitter;

 One receiver;

 One 1m cable connect with receiver;

 One operation and maintain manual.



Products Application:

Widely applied for lifting equipments, construction machinery, cargo loading/unloading machines, water supply system, data transmission, the iron-smelting and steel-making, the automobile manufacturing, papermaking and chemical industry, steel structure processing, galvanization, shipbuilding, railroad, bridge, tunnel construction and other equipments and sites which can be worked by radio controls.



Notes:

The LED on the front of the transmitter indicates the condition of the batteries. It will flash green during operation if the battery power is sufficient, and will flash red if the battery power is low. If the LED is flashing red, or if the operation becomes erratic, or will only work from a short distance, replace bothbatteries with new AA alkaline batteries.
