Industry Plug Socket Electrical Plug Plug and Socket
| Price: |
US $ 0.8/Piece |
| Trade Terms: |
FOB,CIF,EXW |
| Min Order: |
100/Piece |
| Pay Type: |
L/C,T/T,Paypal,Western Union |
| Prod Model: |
SUN-013 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Plug with Socket |
| Grounding: |
Standard Grounding |
| Rated Voltage: |
380-415V |
| Rated Current: |
16A-125A |
| Protection Degree: |
IP44 IP67 |
| Material: |
Flame Retardant Nylon |
| Mode Of Connection: |
Screws Crimping |
| Frequency: |
50-60Hz |
| Poles: |
2 3 4 5 |
| Color: |
Blue or Red |
| Standard: |
South African Standard |
| Function: |
AC Plug |
| Certification: |
CE |
| Shape: |
EP3 |
| Nominal Voltage: |
380V AC |
| Brand: |
Suntree/OEM |
Product Description

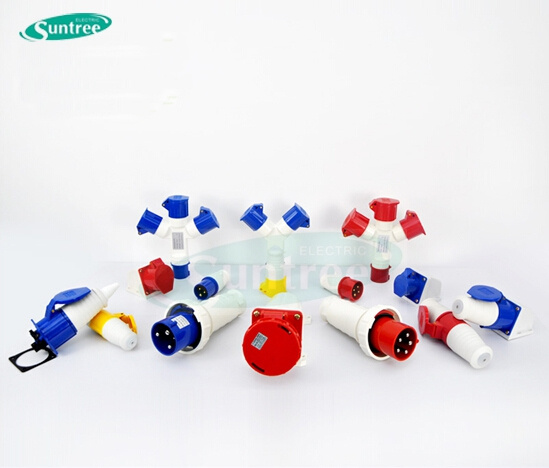

Industry plug socket electrical plug male and female industrial plug and socket
1. Name: 16A-125A 2P+E, 3P+E , 3P+N+E ip44 IP67 waterproof approval industrial plug
2. Color : Yellow, Blue , Red available
3 Ampere: 16A , 32A, 63A, 125A available
4. Voltage: 110V, 220V, 380V available
5. Power type: Single Phase , Three phase available
6. No of pole: 2P+E, 3P+E , 3P+N+E
7. Protection Degree: IP44 (Splashproof), IP67 (Watertight)
8.Earth contact position: 4h, 6h
9. Installment: Wall mounted socket, panel socket
| product name | Art.No. | Material | Packing(pcs/ctn) |
| 16A 3 core 2P+E | Plug | SUN-013 | NYLON | 120 |
| socket | SUN-113 | NYLON | 60 |
| coupler | SUN-213 | NYLON | 120 |
| hide socket | SUN-313 | NYLON | 120 |
| 16A 4 core 3P+E | Plug | SUN-014 | NYLON | 120 |
| socket | SUN-114 | NYLON | 60 |
| coupler | SUN-214 | NYLON | 120 |
| hide socket | SUN-314 | NYLON | 120 |
| 16A 5 core 3P+E+N | Plug | SUN-015 | NYLON | 60 |
| socket | SUN-115 | NYLON | 60 |
| coupler | SUN-215 | NYLON | 60 |
| hide socket | SUN-315 | NYLON | 120 |
| 32A 3 core 2P+E | Plug | SUN-023 | NYLON | 60 |
| socket | SUN-123 | NYLON | 60 |
| coupler | SUN-223 | NYLON | 60 |
| hide socket | SUN-323 | NYLON | 120 |
| 32A 4 core 3P+E | Plug | SUN-024 | NYLON | 60 |
| socket | SUN-124 | NYLON | 60 |
| coupler | SUN-224 | NYLON | 60 |
| hide socket | SUN-324 | NYLON | 120 |
| 32A 5 core 3P+E+N | Plug | SUN-025 | NYLON | 60 |
| socket | SUN-125 | NYLON | 60 |
| coupler | SUN-225 | NYLON | 60 |
| hide socket | SUN-325 | NYLON | 20 |
| 63A 3 core 2P+E | Plug | SUN-033 | NYLON | 20 |
| socket | SUN-133 | NYLON | 20 |
| coupler | SUN-233 | NYLON | 20 |
| hide socket | SUN-333 | NYLON | 20 |
| 63A 4 core 3P+E | Plug | SUN-034 | NYLON | 20 |
| socket | SUN-134 | NYLON | 20 |
| coupler | SUN-234 | NYLON | 20 |
| hide socket | SUN-334 | NYLON | 20 |
| 63A 5 core 3P+E+N | Plug | SUN-035 | NYLON | 20 |
| socket | SUN-135 | NYLON | 20 |
| coupler | SUN-235 | NYLON | 20 |
| hide socket | SUN-335 | NYLON | 20 |
Product name : Industrial Plug IP44 /IP67
Item : 16A |
| | | 110V
50a,60HZ | 230V
50a,60HZ | 400V
50a,60HZ | 500V
50a,60HZ | >50-500V
100-300HZ | >50-500V
a,300-500HZ | | | | current | poles | 3P
4h | 4P
4h | 5P
4h | 3P
9h | 4P
9h | 5P
9h | 3P
9h | 4P
6h | 5P
6h | 3P
7h | 4P
7h | 5P
7h | 3P
10h | 4P
10h | 5P
10h | 3P
2h | 4P
2h | 5P
2h | packing
unit | weight | | 16A | 3 | | 10 | 136 | | 16A | 4 | | 10 | 152 | | 16A | 5 | | 10 | 173 |

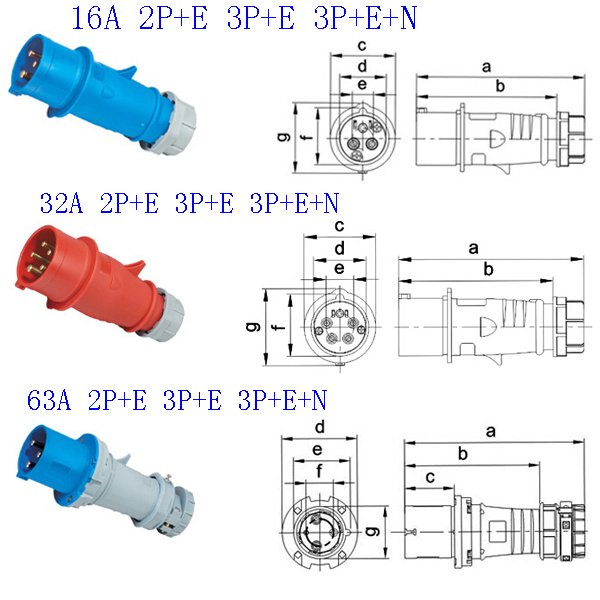

| Keyway | 6h | 6h | 6h | | Amp(A) | 16 | 16 | 16 | | Poles | 3 | 4 | 5 | | size(mm) | a
b
c
d
e
f
g | 142
119
49.5
43.8
21.5
52
66.7 | 142
119
49.5
43.8
21.5
52
66.7 | 144
121
56
50
26.5
60
75 | | Conductor crosssectional(mm2) | 1.5-2.5 | 1.5-2.5 | 1.5-2.5 |
|
Product name : Industrial Plug IP44/IP67
Item : 32A |
| | | 110V
50a,60HZ | 230V
50a,60HZ | 400V
50a,60HZ | 500V
50a,60HZ | >50-500V
100-300HZ | >50-500V
a,300-500HZ | | | | current | poles | 3P
4h | 4P
4h | 5P
4h | 3P
9h | 4P
9h | 5P
9h | 3P
9h | 4P
6h | 5P
6h | 3P
7h | 4P
7h | 5P
7h | 3P
10h | 4P
10h | 5P
10h | 3P
2h | 4P
2h | 5P
2h | packing
unit | weight | | 32 | 3 | | 10 | 234 | | 32 | 4 | | 10 | 317 | | 32 | 5 | | 10 | 354 |
| Keyway | 6h | 6h | 6h | | Amp(A) | 32 | 32 | 32 | | Poles | 3 | 4 | 5 | | size(mm) | a
b
c
d
e
f
g | 173
144
57
51
25
62
80.7 | 173
144
57
51
25
62
80.7 | 177
148
63.3
56.5
30.3
68.7
89 | | Conductor crosssectional(mm2) | 4-6 | 4-6 | 4-6 |
|
Product name : Industrial Plug IP44/IP67
Item : 63A |
| | | 110V
50a,60HZ | 230V
50a,60HZ | 400V
50a,60HZ | 500V
50a,60HZ | >50-500V
100-300HZ | >50-500V
a,300-500HZ | | | | current | poles | 3P
4h | 4P
4h | 5P
4h | 3P
9h | 4P
9h | 5P
9h | 3P
9h | 4P
6h | 5P
6h | 3P
7h | 4P
7h | 5P
7h | 3P
10h | 4P
10h | 5P
10h | 3P
2h | 4P
2h | 5P
2h | packing
unit | weight | | 63 | 3 | | 5 | 580 | | 63 | 4 | | 5 | 632 | | 63 | 5 | | 5 | 685 |
| Earth Contact Position | 6h | 6h | 6h | | Amp(A) | 63 | 63 | 63 | | Poles | 3 | 4 | 5 | | size(mm) | a
b
c
d
e
f
g | 238.9
179.4
69.1
63
36.5
75.3
100.1 | 238.9
179.4
69.1
63
36.5
75.3
100.1 | 238.9
179.4
69.1
63
36.5
75.3
100.1 | | Conductor crosssectional(mm2) | 10-16 | 10-16 | 10-16 |
|
Product name : Industrial Plug IP67
Item : 125A |
| | | 110V
50a,60HZ | 230V
50a,60HZ | 400V
50a,60HZ | 500V
50a,60HZ | >50-500V
100-300HZ | >50-500V
a,300-500HZ | | | | current | poles | 3P
4h | 4P
4h | 5P
4h | 3P
9h | 4P
9h | 5P
9h | 3P
9h | 4P
6h | 5P
6h | 3P
7h | 4P
7h | 5P
7h | 3P
10h | 4P
10h | 5P
10h | 3P
2h | 4P
2h | 5P
2h | packing
unit | weight | | 125 | 3 | | 5 | 1100 | | 125 | 4 | | 5 | 1220 | | 125 | 5 | | 5 | 1330 |
| Earth Contact Position | 6h | 6h | 6h | | Amp(A) | 125 | 125 | 125 | | Poles | 3 | 4 | 5 | | size(mm) | a
b
c
d
e
f
g | 286
219
57
133
75.1
42.5
87.2 | 286
219
57
133
75.1
42.5
87.2 | 286
219
57
133
75.1
42.5
87.2 | | Conductor crosssectional(mm2) | 25-35 | 25-35 | 25-35 |
|

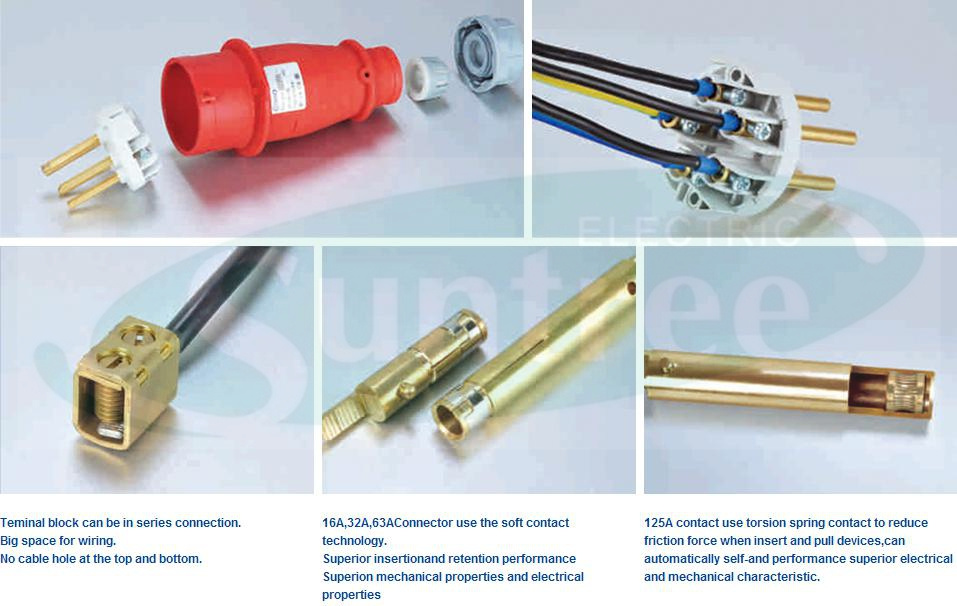

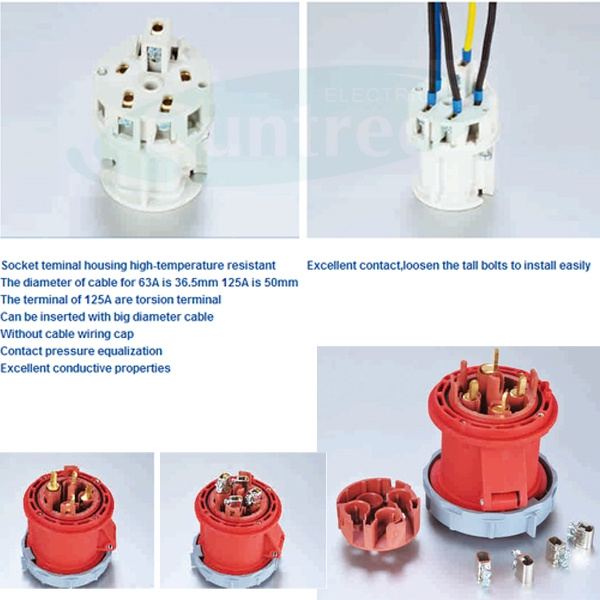

STANDARD CONNECTOR
100%Safe
--Connector with double bolt type terminal, insert the cable(metal part) to the terminal, screw up the first bolt, and then loosen the cable conductor.
it can be windmilling. This standard of design is easy for assemble, also safe and reliable.
STANDARD PLUG
Economic,Functional
--Customer can choice different model of connection for different poles by they like.
They can connect either with the cable core wire cap import or without.
Flexible choosing without safety loophole. Economic and functional design to satisfactory each
customer.
Temperature-Rist Test:
When we design the product, the first thing we need to do is make sure that our product can work
in tated current for a long time. To keep the high quality, we use the experimental apparatus
which can test the temperture-risk,
product life, and mechanical property together for finsh the test more fast and widely.
CTI/PTI Test:
When we were designing the product, we not only need to considering the metal part,
but also for the plasic part. CTI/PTI is a very improtant test for testing the plastic.
We only chose the raw material which can pass the CTI/PTI test to keep our product have high
insulativity and safety.
Sand Dust Test:
The operational environment is the first problem we considered when we design the product.
We need to make sure that our product can be used over the world.
So we need to evaluate the flexible condition of environment for store, deliver, and use in dry-sands or abound with lots of dusts.
The sand dust test adopted the manual simulation of sand & dust conditions.
So we can ensure that whether they had long-term usage in al kinds of harsh natural environments
Rainfall Test:
As we know, whatever the product , product can inordinately influence with all kinds of liquids,
whatever they in operative or storage. It has varying effects on their raw materials and features and
even can damage the structures when they are permeated.
Rainfall test can exam the product outside case's stabilities and reliabilities of against the liquid.
Insertion and Extraction Force Test:
We need to make sure the variable temperature at first when we design the product. Base on the variable
temperature, we try to do the best feeling of inspection and extraction force.
The target of insection and extraction force test is translate the nastic feeling to the exactly data,
base on the data, we can provide the information for design, improve, and inspect the product.
