| Prod Model: |
GL33 30KVA |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Features: |
Isolated Transformer |
| Transfer Time: |
0 Ms |
| Power Efficiency: |
0.8 |
| Battery Type: |
Sealed Lead Acid Maintenance-Free Battery |
| Warranty: |
12 Months |
| Phase: |
Three Phase |
| Type: |
On-line |
| Protection: |
Over Voltage / Short Circuit |
| Classification: |
Equipment Power |
Product Description

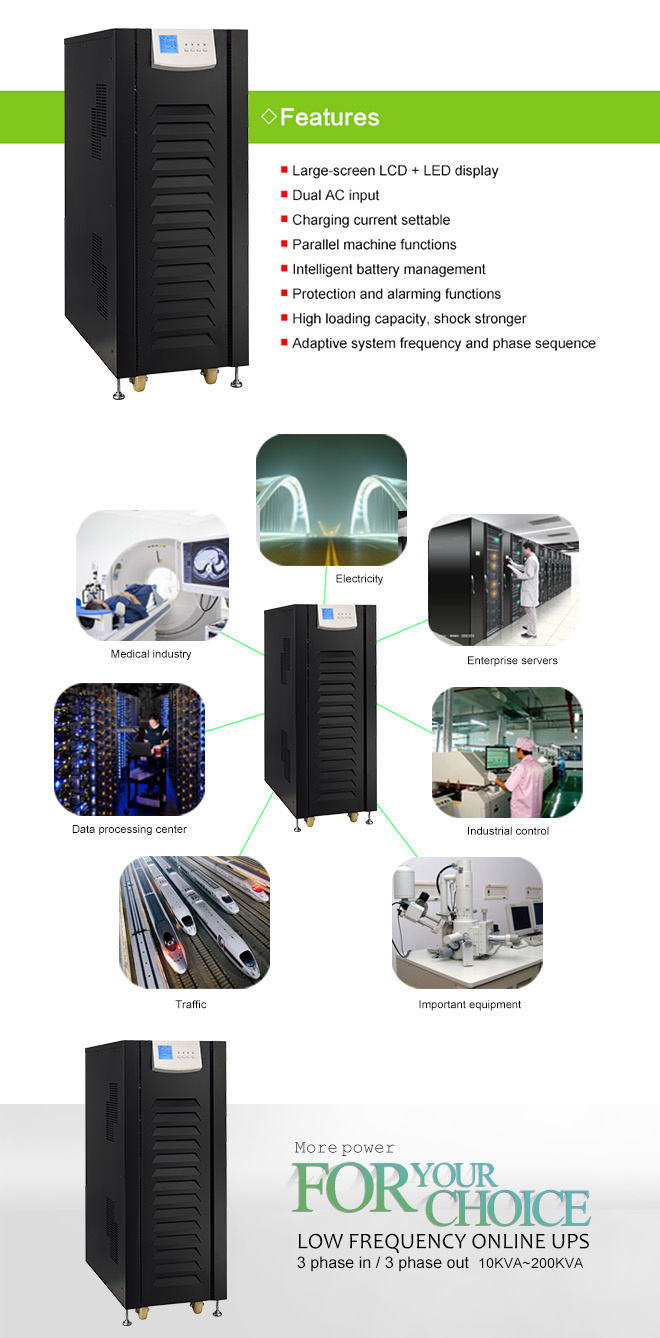

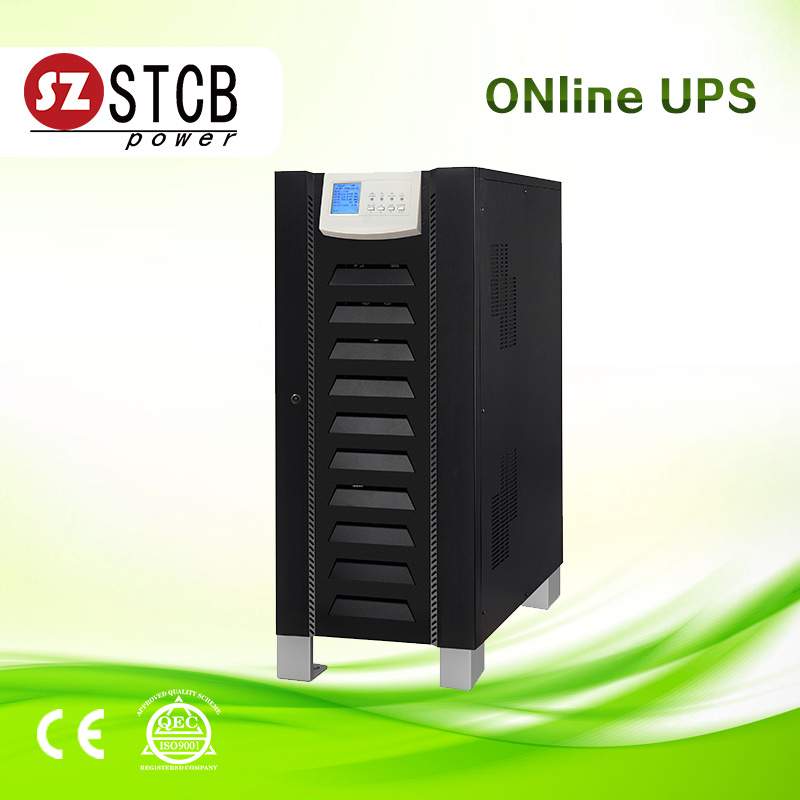

Industry UPS Online 30kVA with Isolated Transformer
Main Features:1. Online double-conversion2. DSP technology guarantees high reliability3. True galvanic isolation transformer design4. Control designed to withstand all kinds of loads5. Intelligent battery management to prolong battery lifecycle6. Redundant fan design and independent ventilation enhance durable operation under
harsh environment7. Adjustable battery numbers8. Accept dual-mains input9. Parallel operation with up to 4 units (option)10.Variety of communication options availableProduct description:The On-Line-Series is an uninterruptible power supply incorporating
double-converter technology. It provides perfect protection specifically for
strict load.
The double-converter principle eliminates all mains power
disturbances. A rectifier converts the alternating current from the socket
outlet to direct current. This direct current charges the batteries and powers
the inverter.
In the event of power failure, the maintenance-free batteries
power the inverter. Thus the inverter generates a sine wave AC power,
which permanently supplies the loads.
Designed with the proven on-line, double conversion architecture, this
series of UPS offers the greatest degree of availability in power protection
and provides continuous high-quality AC power to connect strict load,
especially for the basic equipments in some areas as: finance,
communication, government, traffic, manufacture, education and so on. Additionally The UPS provides abundant interfaces such as RS232, SNMP, AS400, and RS485 for supervision and configure.
Specification:| Model | GL33 10K | GL33 15K | GL33 20K | GL33 30K | GL33 40K | GL33 60K | GL33 80K | GL33 100K | GL33 120K |
| CAPACITY | 8 KW | 12 KW | 16 KW | 24 KW | 32 KW | 48 KW | 64 KW | 80 KW | 96 KW |
| INPUT |
| Nominal Voltage | 3 x 380VAC/400VAC (3Ph + N) |
| Acceptable Voltage Range | 305VAC ~ 460VAC |
| Frequency | 50/60 Hz ± 10 % |
| INVERTER |
| Nominal Voltage | 3 x 380VAC/400VAC (3Ph + N) |
| Precision | Stationary: ±1% ; Transitory: ±5% (load variations 100-0-100%) |
| Frequency | 50/60 Hz synchronised ±1 % With mains absent ±0.1 Hz |
| Max. Synchronisation Speed | ±1 Hz/s |
| Waveform | Pure Sinewave |
| Total Harmonic Distortion (THDv) | < 2% (Linear Load) ; < 5% (Non-linear Load) |
| Phase Displacement | 120º ±1% (balanced load) ; 120º ±2% (imbalances 50% of the load) |
| Dynamic Recovery Time | 3 cycles at 98 % of the static value |
| Admissible Overload | 110% for 10min; 150% for 60sec ; >160% for 200ms |
| Admissible Crest Factor | 3:1 |
| Admissible Power Factor | 0.6~1 (inductive or capacitive) |
Imbalance Output Voltage
@ 100% Unbalanced Load | <1% |
| Current Limit | High overload, short-circuit: RMS Voltage Limit ; High Crest-Factor current: Peak Voltage Limit |
| STATIC BYPASS |
| Type | Solid state |
| Voltage | 3 x 380VAC/400VAC (3Ph + N) |
| Frequency | 50/60 Hz |
| Activation Criterion | Microprocessor control |
| Transfer Time | Zero |
| Admissible Overload | 150% for 1 hour; 180% for 30sec; >200% for 200ms |
| Transfer to Bypass | Immediate, for overloads above 160% |
| Retransfer | Automatic after alarm clear |
| MAINTENANCE BYPASS |
| Type | Without interruption |
| Voltage | 3 x 400V (3Ph + N) |
| Frequency | 50/60 Hz |
Overall Efficiency
(Line mode) | Line Mode | 90% | 91% | 92% | 93% |
| Battery Mode | 90% | 91% | 93% | 93% |
| BATTERY & CHARGER |
| Battery Type and Numbers | 12VDC x 32 pcs (29~32 pcs adjustable) |
| Nominal Battery Voltage | 384 VDC (Based on 32pcs batteries) |
| Charging Method | CC/CV |
| Charging Current | Default 10A, Max. 7= Capacity / Battery Voltage | Default: 10A. Max. 40A |
| Charging Voltage | 432 VDC (Based on 32pcs batteries) |
| PHYSICAL |
Dimension
D x W x H (mm) | 656*405*817 | 656*405*941 | 821*432*1159 | 975*554*1286 | 975*635*1326 |
| Net Weight (kgs) | 118 | 120 | 179 | 241 | 278 | 400 | 471 | 573 | 650 |
* Product specifications are subject to change without further noticeCompany and factory:
Project and Trade show:
Our services:
1. OEM&ODM services acceptable.
2. 1% pcb board provided .
3. Lots of cooperated agent for shipping by sea or by air.
4. 1year warrenty , if it is quality problem , we will provide the parts for free .
Q1: Why you should choose us?
---16 years UPS experiences
---Professional team for both oversea and domestic market
--UPS provider of SCO meeting 2015 and Shanghai-Kunming high-speed railway project
---Qualified product plus competitable prices
---Delivery in time
---Sincerely services
Q2: How is your after-sale service?
---We provide 12-24 months warranty since the delivery date and free maintenance /
replacement during warranty period.
Q3: What kind of certification you have?
---ISO9000, CE,ROHS,UL,and so on
Our products could pass different labor testing according to different countries' requirements.
Q4: Delivery time:
---Standard products could be delivered within 15 days; customized products could be
developed within 45-60days.
