Infrared Gas Sensor CO2 IR Ndir Carbon Dioxide Landfill Gas Detection

Name: Infrared Gas Sensor CO2 IR Ndir Carbon Dioxide Landfill Gas Detection
Brand: all-electronics-online.com
SKU: 831507895
Availability: InStock
Rating: 4.4 (99 reviews)

Price:	US $ 25-250/Piece
Min Order:	1/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	CO2/A(G)(GP)(E)-range
Output:	RS485/4-20mA/0.4-2V
Precision:	5%Fs
After Sale Service:	Yes
Customize:	Yes
Conductivity Type:	Infrared

Product Description

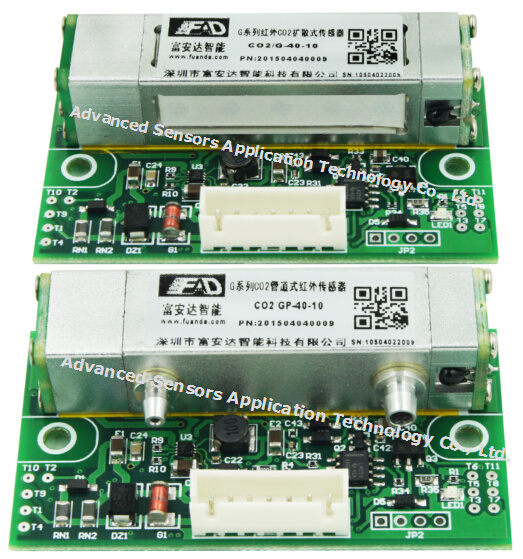

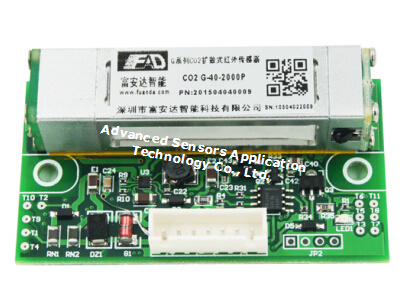

CO2 Infrared Gas Sensor IR Module FAD
G series infrared CH4 gas sensors uses non-dispersive infrared (NDIR) detection technology, with advantages of long life, low cost, intelligence, micro and so on. Sensor is easy to use, with a complete gas detection, serial communication function, widely used in ventilation systems, industrial control, environmental monitoring and other industries.

Features

Detecting gas	CO2
Operating voltage	12-24VDC
Operating current	Average 80mA (10-120mA )
Output	TTL(depends on specified model) RS485 4-20mA Current 0.4-2V Voltage
Response time	<5s
T90	15s(500ml/min)
Recover time	25
Measuring flow rate	300-500 ml/min(pump)
Repeatability	≤±2% FS
Linearity error	≤±1% FS
Zero point temperature drift	≤±0.1% FS/°C
Span temperature drift	≤±0.1% FS/°C
Temperature	-20°C -50°C
Humidity	0-95%RH
Lifetime	10 years
Dimension	65mm35mm20mm

A Series Selection

Series	A-1	Range	Precision	Resolution	Power Supply	Output
A	CO2/A-1	0-1 Vol.%	± 5% FS	0.001% VOL	5.5 VDC	Voltage/ TTL digital

E Series Selection

Series	E-40	Range	Precision	Resolution	Power Supply	Output
E	CO2/E-40-2000P	0-2000 ppm	50± 5% FS	1 ppm	5.5 VDC	Voltage/ TTL digital
	CO2/ E-40-5000P	0-5000 ppm	50± 5% FS	2 ppm	5.5 VDC	Voltage/ TTL digital
	CO2/ E-40-1	0-1 Vol.%	± 5% FS	0.001% VOL	5.5 VDC	Voltage/ TTL digital

G Series Selection

Series	G-40	GP-40	Range	Precision	Resolution	Power Supply	Output
G	CO2/G-40-1000p	CO2/GP-40-1000p	0-1000 ppm	±5%FS	1 ppm	12-24VDC	RS485/4-20mA/0.4-2V
	CO2/G-40-2000p	CO2/GP-40-2000p	0-2000 ppm	±5%FS	1 ppm	12-24VDC	RS485/4-20mA/0.4-2V
	CO2/G-40-5000p	CO2/GP-40-5000p	0-5000 ppm	±5%FS	2 pmm	12-24VDC	RS485/4-20mA/0.4-2V
	CO2/G-40-10000p	CO2/GP-40-10000p	0-10000 ppm	±5%FS	5 ppm	12-24VDC	RS485/4-20mA/0.4-2V

Application
Dynamic Environments: Telecommunication equipment room, electrical power equipment room and stations
Building Automatic Control: Hotel, office building, museum and ventilation system of buildings
Industrial Work Field: Occupational safety, warehouse, medicine and ventilation system of workshop production line

Public Occasion: Airport, railway station, high speed railway, shopping center and hospital
School Life: Dormitory, office, classroom, library and indoor competition field
Transporting Storage: Food preservation and transportation, warehouse, food and vegetable preserving storage

Agricultural Cultivation: Conservatory, vegetable greenhouse, flowers and plants greenhouse, modern hydroponics garden

Company introduction

Advanced Sensors Application Technology Co., Ltd. Was established on 2003. We are passionate about delivering high quality gas sensor products to our customers. Focus on customized manufacturing, we supply widely to many key industries through our diverse and state-of-art facilities. We have a technician team to support in material designs and testing to international standards meeting customers' requirements.

Products are widely used in petroleum, petrochemical, metallurgy, chemical, electricity, telecom, gas, mining, pharmacy, municipal wastewater treatment, indoor environment, atmospheric environmental protection, transit equipment, transportation facilities, tunnel safety and underground parking.
