∑ Elements of infrared heaters:
For practical purposes, most infrared heaters are constructed by either using the emission of a flame (usually soot or a heated matrix) or an electrically heated filament as the emitting body. If an electrically operated infrared heater (infrared lamp) is used, the filament is usually protected by a heat-resistant quartz glass tube. Depending on the filament temperature, a filling of the quartz tube with inert gas (e. G., halogen) may be required to prevent filament degradation. These emitters use the same materials and principle as a light bulb.
The most common filament material used for electrical infrared heaters is tungsten wire, which is coiled to provide more surface area. Low temperature alternatives for tungsten are carbon, or alloys of iron, chromium and aluminum (brand name 'kanthal'). While carbon filaments are more fickle to produce, they heat up much quicker than a comparable medium-wave heater based on a FeCrAl filament.
Industrial infrared heaters sometimes use a gold coating on the quartz tube that reflects the infrared radiation and directs it towards the product to be heated. Consequently the infrared radiation impinging on the product is virtually doubled. Gold is used because of its oxidation resistance and very high IR reflectivity of approximately 95 %
∑ Applications of infrared heaters:
IR heaters are used in industrial manufacturing processes including curing of coatings, shrink tunnels, heating of plastic prior to forming, plastic welding; Processing glass; , and cooking and browning food. They are used when high temperatures are required, fast responses or temperature gradients are needed or products need to be heated in certain areas in a targeted way. Their application is difficult for objects with undercuts.
They are also used to provide warmth to suckling animals whose mother cannot or will not provide them with natural warmth as well as to captive animals in zoos or veterinary clinics, especially for lizards and other reptiles, and tropical animals such as birds.
Another recent use is in house heating, various companies sell infrared heaters for house use, claiming some medical benefits due to better circulation[citation needed] also infrared saunas claim same benefits.

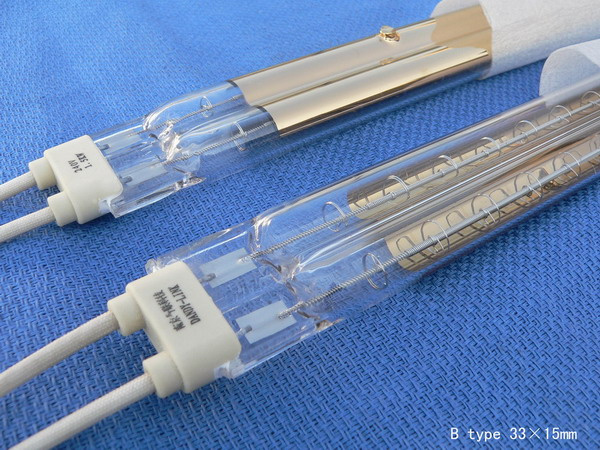

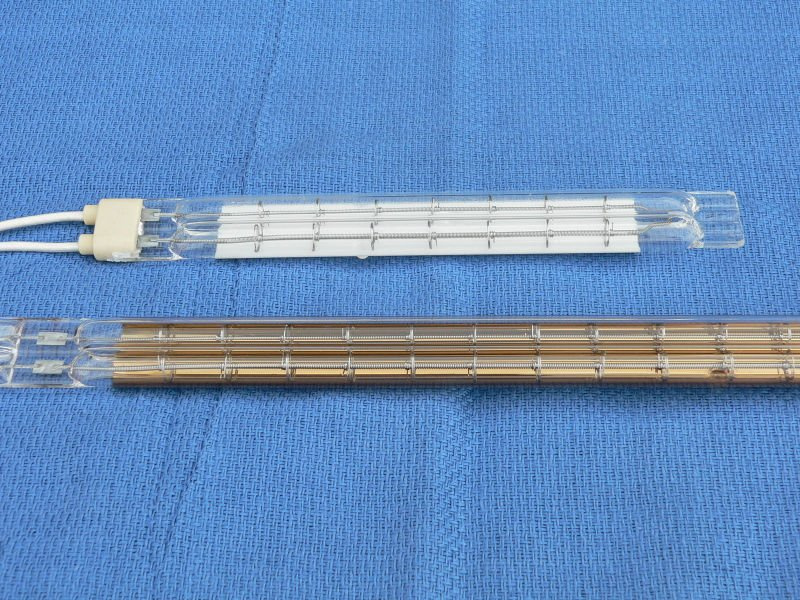

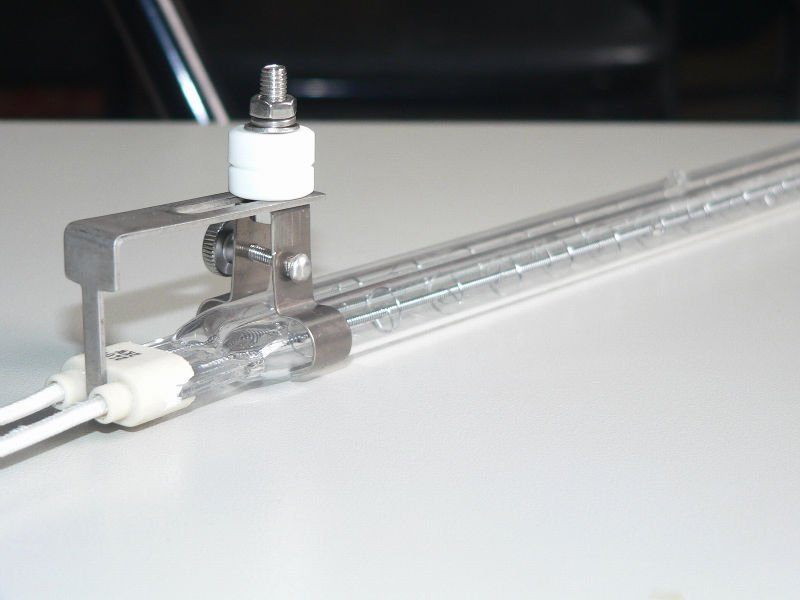

∑ DESCRIPTION OF ONE TUBE INFRARED HEATING LAMP:
Finish: Gold or White reflector covered half of quartz twin tube
Voltage: 220V
Power: 500W
Diameter: 12mm
Length: 680mm
Ceramic cap: D2 type
Connection: Two sided
To order you must inform us the following features:
- Diameter of the heating emitter
- Length of the heating emitter
- Wattage
- Voltage
- Connection
- Termination type how you want the heater to be connected with the electricity (screws, cable, cap etc. )
- Special Features (holes etc. )
It would be better for our understand If you could send us a drawing with all the characteristics noted./D2/E/X
Nanjing Dandy-Link Technology is a science & technology-oriented company that has been highly honored by the Government and Business Sector for our honest reputation for successive years. And we are invited in developing the newest GB/T 4654-2008 National Infrared Standards for non-metallic basic body infrared heater. The high-quality products and good services from Dandy-Link Technology have already built up its own brand reputation, it's also highly praised by many clients, and it's used to replace foreign brands. Our company's products have all passed the ISO9001 authentication, and are honored as "quality-credit guaranteed demonstration company" by the Light production quality guarantee centre for many years. Thereinto the infrared heating emitters were awarded as "reassurance brand" because they continuously passed the examines, and it was unfurled on the
andand some other press.
Dandy-Link is a science & technology-oriented, quality-oriented, and service-oriented company, specialized in designing, manufacturing and developing the following products:
1. IR radiation heating emitters: High output IR radiation heating emitter (quartz heater), carbon fiber heater and IR radiation heating emitter with gold reflective coating.
2. Temperature and power controllers: Thyristor trigger(Thyristor zero crossing controller, Phase shift controller), Trigger module, Thyristor main circuit unit, Integrated Thyristor modular AC power controller and temperature control system.
3. IR radiation drying equipments: Infrared heating oven, Automotive paint baker and matched heating equipment sets.
We possess our own development group and core technology of said products. Therefore we have advantages over other similar products in advance and in quality. Our company's heating and temperature control products have a high technique jump-off point and a high quality/price rate, and considered more from the users' view, so that the reputation in the clients has risen quickly.
High quality Combined with our business concept of "Customer-centric", you will enjoy our suit and price-reasonable production, advanced and mature technology, comprehensive and consummate service. We believe that we can satisfy your company, and we hope we can have the opportunity to serve your company.
Any inquiry is appreciated.
Dandy-Link Technology_we can do better!
Anything need, please contact Anna: +86 18936279957.
