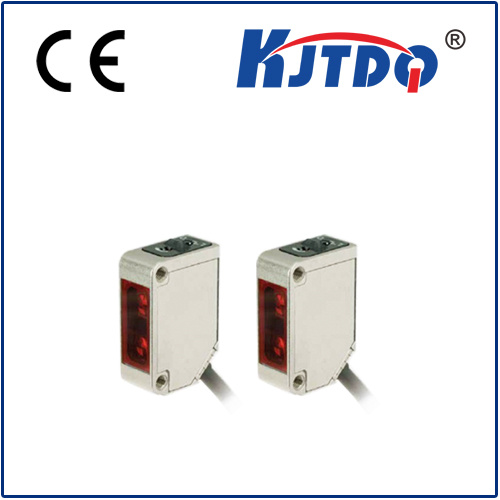

Infrared Photocell Photoelectric Diffuse Reflector Sensor (FS30)

Infrared Photocell Photoelectric Diffuse Reflector Sensor (FS30)
Price: US $ 9.6-10.8/Piece
Min Order: 5/Piece
Pay Type: L/C,T/T,D/P,Western Union,Paypal
Prod Model: FS30
Voltage Type: 10-36VDC Voltage
Protection Degree: IP 65
Response Time: <8.2ms
Sensing Distance Range: Adjustable
Feature: Standard

Product Description

KJT-FS30 Series Photoelectric sensor switch

Detailed Product Description

Features:

----Easy to set up and adjust distance.
----Short-circuit protection, reverse polarity protection.
----Cable and connector connection optional.
----Stainless steel housing, strong and durable. Plastic housing, eonomical and easy to install.
----Light on/dark on conversion function.
----Built-in power supply, AC, DC or AC/DC universal Power supply.
----Relay output, capacity up to 250VAC*3A

Variety:

----Diffuse reflection type
----Retro reflection type
----Through beam type

   Housing size      30*25*13
   Mode      Retro reflection
   SN      2m
   Light source      Infrared LED
          (880nm)
   Output     NPN/PNP NO/NC/NO+NC
   Power supply     10…30VDC
   Response time     Max,3ms
   Hysteresis     3…20%
   Repeat accuracy     ≤5%
   Load current     200mA
   Residual voltage     ≤2.5V
   Consumption current     ≤25mA
   Protection circuit     Surge and reverse
          polarity protection
   Indicator     Yellow LED
   Ambient temp.     -15-55ºC
   Ambient RH35-95%
   Protection degree     IP65
   Housing material     ABS/PC
   Connection     PVC Cable 2m




Nanjing KJT Electric Co., Ltd. is a professional manufacturer in the field of sensors and industrial switches, Our high-tech products are widely used in the industrial mechanical equipment and automatic assembly lines for transportation, plastic, metallurgy, chemistry, textile, tobacco, food, printing and so on, with properties of location check, signal transmission, automatic counting and velocimetry.

Including automation and instrumentation division. Owning an outstanding R&D team who focus on core technique and devote themselves to development and innovation, we provide our esteemed customers with All-In-One solutions. We believe that the only way to offer the best industrial control system for customers is to be a total solution provider. Through our enterprise concept, we can make our customers reduce the cost of operation, enhance the efficiency of work, and increase the quality and plus the extra value of products. There are over 8, 000 customers in all industries worldwide. Our qualified products can successfully be used in worse environment with long life-time.
