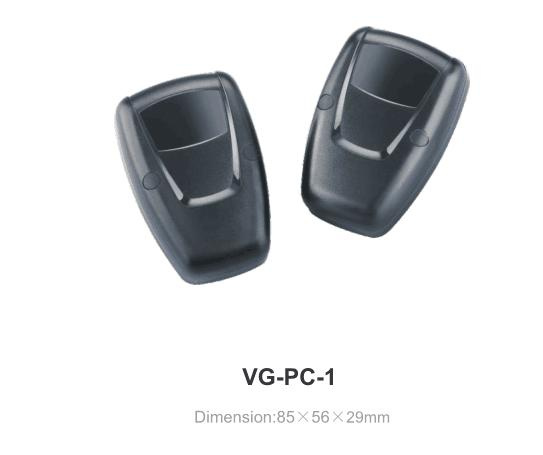

Infrared Photocell Sensor for Gate Opener

Prod Model:	VG-PC=1
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Quality:	High
Application:	Automatic Doors
Signal Transmission:	RF Remote Control
Type:	Button
Certification:	CE
Universal:	Universal
Transmission Distance:	>100m
Material:	Plastic
Battery Type:	AA Battery
Voltage:	6V

Product Description

Range: 20m STANDARD Range can be reduced to 50% in bad weather coditions: fog, rain, dust, etc.
 Power Supply: 12 to 24 V DC/AC
Wave Length: 880 Nm
Infra: RX 20mA -TX 35
Operating Temperature: -20°C to 70°C
Realy output: 1A max 24V


 Notes:
1. As the beam emitted by the transimitter is ectremely powerful, when there is a Distance less than 4-5m from the receiver correct operation could be affected by phenomena of reflection with nearby objects

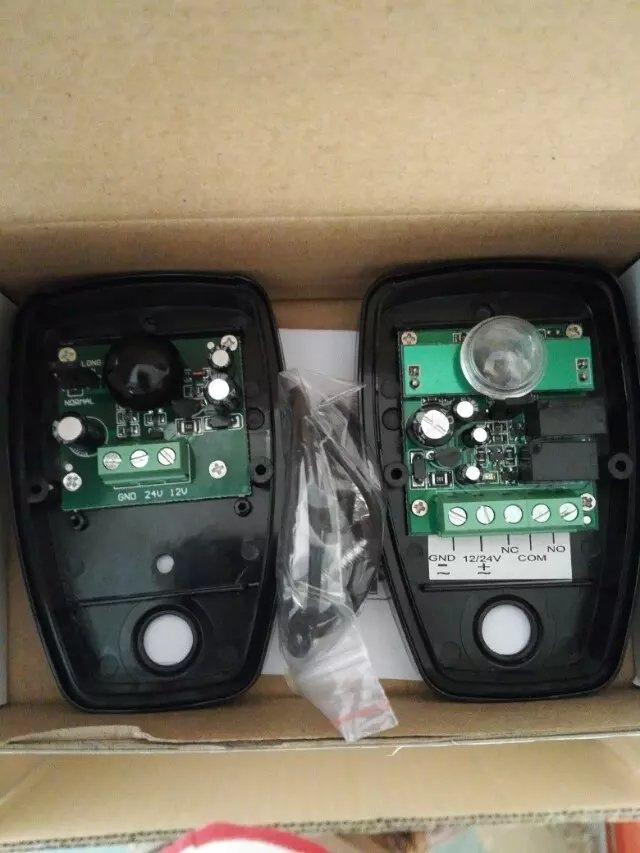

2. interrupt the beam several times checking that the relay switch over and the red led on the receiver lights up. Not aligned: RED LED ON. Aligned: RED LED OFF


(All control are customer needs, actual product maybe different from the picture shown)


Blueprint Door Control Limited is a professional local manufacturer and exporter for door control system, With more than 10 years experience in these fields,Blueprint high quality products has been exported to more than 40 countries.

Our product ranges includes belows:
*Automatic door
*Industrial door opener
*Garage door opener
*High speed rolling door system
*Gate opener system
*Road barrier system includes barrier,bollard and road blocker system
*All related control system and accessories.

If you have pending order in future,you can inquire us and have trival order to test.

Awaiting your contact.
