Infrared Remote Control for Lead Fluid Peristaltic Pump
| Price: |
Negotiable/Piece |
| Min Order: |
20/Piece |
| Pay Type: |
T/T,Western Union,Paypal,Money Gram |
| Prod Model: |
IRC001 |
| Control: |
Start/Stop, Dispensing, Rotating Direction, Full S |
| Weight: |
0.2kg |
| Used In: |
Lead Fluid L and F Series Pump |
| Application: |
Industrial Machinery |
| Signal Transmission: |
IR Remote Control |
| Certification: |
CE |
| Transmission Distance: |
<50m |
| Material: |
Plastic |
| Battery Type: |
Button Battery |
| Type: |
Suitable for Lead Fluid L and F Series Pump |
Product Description
Infrared Remote Control for LEAD FLUID Peristaltic Pump

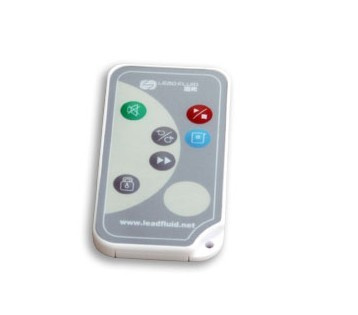

1. Infrared remote control
Suitable for Lead Fluid L and F series pump, controls the working status such as start/stop, dispensing, rotating direction, full speed and lock.

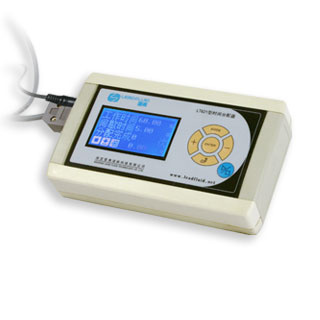

2. FK-10 Dispensing controller introduction
FK-10 dispensing controller is main matched with Speed-variable pump to dispense fluid semi-automatically, simple operation, Large screen displays parameters, the information is intuitive and clear.
» Technical index
• Display: white words on blue background, large screen.
• Parameters setting: key operation.
• Dispensing time: 0.01-9999 second, the resolution is 0.01second.
• Time interval: 0.10-9999 second, the resolution is 0.01second.
• Dispensing times: 1-9999 times or infinite loop.
• Can applicable manual or external control for start/stop.
• FK-10 Dispensing controller can be equipped with Lead Fluid S and L series peristaltic pumps.

3. Anti adsorption countersunk
Use at the pipe outlet to prevent the pump tube floating or suction in the container wall, the body is made of stainless steel, available in various sizes.

No. | Material | Suitable tube |
Laboratory type | Industry type | Batch transferring type |
1 | Stainless steel | 13# 14# | | |
2 | Stainless steel | 16# | | |
3 | Stainless steel | 15# 25# | | |
4 | Stainless steel | 17# 24# | | |
5 | Stainless steel | 18# 35# 36# | | |
6 | Stainless steel | | 73# 82# | |

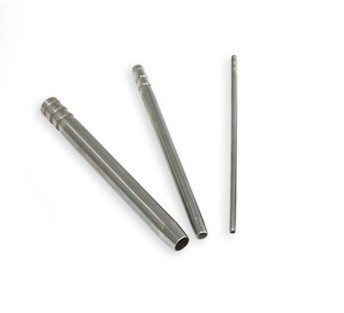

4. Dispensing needle

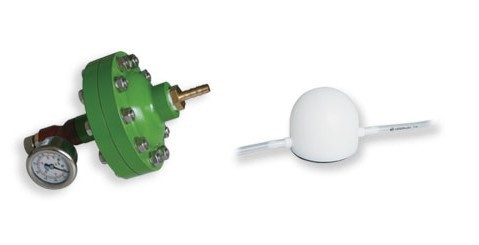

5.Pulse damper
Pulse damper is a pressure vessel that contains upside and downside cavities,the upside cavity is full of gas, when fluid is passing by downside cavity, the pulse can be absorbed by impressed gas instantly, corresponding to steady fluid.

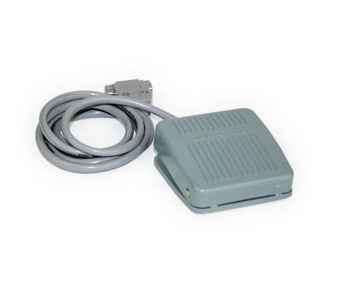

6.Foot switch
Casting aluminum alloy shell, the surface is the roast plastic processing, wear resistance, ageing resistance. Can be controlled start-stop and dispensing functions, realize semi-automatic filling. Suitable for whole series of Lead Fluid pumps.

7.Hand DispenserThe hand dispenser is a small, portable device. Through the connection to the pump system, the device can be used to achieve directional transmission, and start and stop (with) a simple function, convenient application.
Technical parameters
• Suitable Tube:13# 14# 19# 16# 25# 15#
• Function : start/stop, start dispensing
• Beautiful shape:black color with green/blue indicator
• Dimension:160mm
• The length of signal line :can be customized(standard 1meter)
• Usage: When not in use can be adsorbed on the chassis (chassis assembly magnet)
