Prod Model:	CO-G(P)-range
Output:	RS485/4-20mA/0.4-2V
Precision:	5%Fs
After Sale Service:	Yes
Customize:	Yes
Conductivity Type:	Infrared
Certification:	Other

Product Description

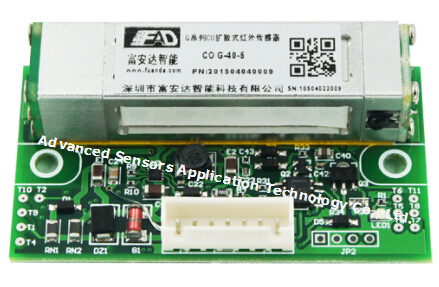

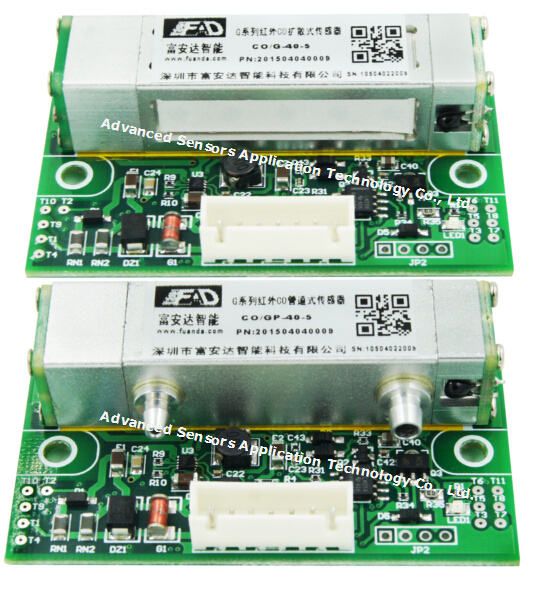

CO Infrared Gas Sensor IR Module FAD
G series infrared CO gas sensors uses non-dispersive infrared (NDIR) detection technology, with advantages of long life, low cost, intelligence, micro etc. Sensor is easy to use, with a complete gas detection, serial communication function, widely used in ventilation systems, industrial control, environmental monitoring and other industries.

Features

Detecting gas	CO
Operating voltage	12-24VDC
Operating current	Average 80mA (10-120mA )
Output	RS485 Net 4-20mA Current 0.4-2V Voltage
Response time	<5s
T90	15s(500ml/min)
Recover time	25
Measuring flow rate	300-500 ml/min(pump)
Repeatability	≤±2% FS
Linearity error	≤±1% FS
Zero point temperature drift	≤±0.1% FS/°C
Span temperature drift	≤±0.1% FS/°C
Temperature	-20°C -50°C
Humidity	0-95%RH
Lifetime	10 years
Dimension	65mm35mm20mm

Selection

Gas	G-40	GP-40	Range	Precision	Resolution	Power Supply	Output
CO	CO/G-40-5	CO/GP-40-5	0-5VOL%	±5%FS	0.01 VOL %	12-24VDC	RS485/4-20mA/0.4-2V
	CO/G-40-10	CO/GP-40-10	0-10VOL%	±5%FS	0.01 VOL %	12-24VDC	RS485/4-20mA/0.4-2V
	CO/G-40-20	CO/GP-40-20	0-20VOL%	±2%FS	0.01 VOL %	12-24VDC	RS485/4-20mA/0.4-2V
	CO/G-40-50	CO/GP-40-50	0-50VOL%	±5%FS	0.01 VOL %	12-24VDC	RS485/4-20mA/0.4-2V
	CO/G-40-100	CO/GP-40-100	0-100VOL%	±5%FS	0.1 VOL %	12-24VDC	RS485/4-20mA/0.4-2V

Application
Petrochemical
Chemical factory
Pharmaceutical
Mining
Power station
Combustion engine generator
Metallurgical industry
Natural gas
Incineration
Municipal engineering
Tunnel
Process analysis and control
Fire accident site

Company introduction

Advanced Sensors Application Technology Co., Ltd. Was established on 2003. We are passionate about delivering high quality gas sensor products to our customers. Focus on customized manufacturing, we supply widely to many key industries through our diverse and state-of-art facilities. We have a technician team to support in material designs and testing to international standards meeting customers' requirements.

Products are widely used in petroleum, petrochemical, metallurgy, chemical, electricity, telecom, gas, mining, pharmacy, municipal wastewater treatment, indoor environment, atmospheric environmental protection, transit equipment, transportation facilities, tunnel safety and underground parking.
