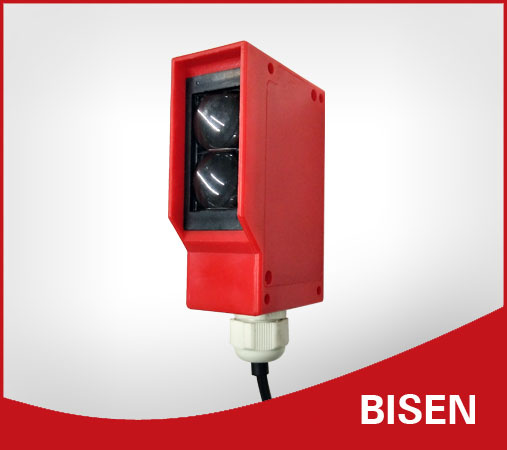

Infrared Sensor for Safety Beam

The diffuse-reflective sensor detects objects and materials without contact and indicates their presence.

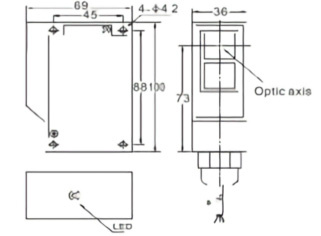

Dimensions:




Electrical Connection:


Core colors: BN=brown, BU=blue, GY=grey, BK=black, WH=white

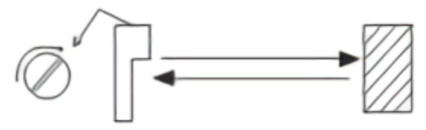

Detection distance adjustment:

When the potentiometer rotates clockwise, the detection distance increases.
When the potentiometer rotates counter-clockwise, the detection distance decreases.

Remarks:
1.In order to avoid effects from environment and voltage, please set detection distance within 2/3 of the maximum detection distance.
2.High-voltage wire and power wire may cause interference with sensor wire. The sensor wire should be installed separately.
3.Power must be cut off when wiring. Electrical connection should strictly refer to the instructions.
4.If maintenance is required, please contact the professionals.
Attention: Refer to the instructions before installation!

Technical Parameters
