Product Description
Product DetailsTrade assurance coil heater with 4pin mini xlr connectorLength of Hot runner heater within 20-3000mm is mainly used for hot runner mold or, as well as other precision heating system. Spring heating ring external using high quality Ni-Cr steel tube, the internal use of high purity magnesium oxide , high temperature resistance wire, and first-class manufacturing technology . The wire is after the annealed, with flexibility can be bent into an arc or circle heating. Its high working temperature, fast heating, uniform heating precision, long service life, can be automatically controlled area, high thermal conduction, while internal heating material damage, external can be reuses.
1.Hot runner coil heaters also know as cable heaters can be formed to a variety of shapes as required by its many application.
2.Frequenty though,coil heaters are configured as samll diameter,high performance nozzle heaters that are fully annealed.
3.Spring hot runner coil heates are use on injection molding machine nozzles and sprue bushings supplying bushings supplying 360 degree of heat with optional distributed wattage available.
4.Hot runner coil heaters are also used as cartridge heaters where irregular size bores are found.A straight,round cable heater can snake through a seal in packaging equipment installations.
Heatingsection | 2.2x4.2mm3x3mm3.4x3.4mm3.5x3.5m4x4mm |
HeatingcoilID | 10mm~38mm |
Heatingringheight | 40mm~200mm |
Voltage | 220V~380V |
Wattages | 200W~3000W |
Build-inthermocouplepower | WithorwithoutJ/Kthermocouple |
Leadwire | 500/1000/1200/1500/2000mm |
1.Hot Runner & Bushings
2.Tube Extrusion
3.Pipe Forming
4.Hot Runner Mould
5.Plastic Injection Machine
6.Plastic Extruder Machine
Product Description
pecification are widely applied in American market or make regular or flat coil heater for enail as request
Sectional area | 3X3,4.2X2.2,4X2,4X2.7,4X2.5 3.3 X 3.3 3.5 X 3.5 4 X 4,2.2X1.3 |
Minimum ID | 8mm |
Sheath Material | SS304,SS310 |
Insulation Material | High Pure MgO |
Resistance Wire | Cr20Ni80 |
Maximum Sheath Temperature | 700°C |
Die Electrical Strength | 800V A/C |
Insulation | >5 M W |
Dimensional Tolerance | Coil I.D+0.1 to 0.2mm//Coil Length+1mm |
Wattage Tolerance | +10% (+5% Available Upon Request) |
Voltage | 12V~380V |
Wattage | 70W~1000W |
Build-inthermocouplepower | withoutor with J/Kthermocouple |
Sheath's length | 500/1000/1200/1500/2000mm |
Availablesheath | nylon,metal braided,fiberglass ,silicone rubber, kevlar |
Sheath's color | standard is black,other color is also available |
Connector | without or with 5 pin xlr,4 pin min xlr connector |
Connector' color | silver or fully black |
The delivery time:
10-100pcs | 3days |
100-500pcs | 7days |
more than 500pcs | 10days |
Standard and fashion E-nail Coils as follows:
Spring coil
ID16mm
Length 10.6/12.7/13.3mm;
Voltage : 24/110/120/220v;
Wattage:100/150/250w
With TC K/J
With Kevlar sleeve | Spring coil
ID20mm
Length 10.6/12.7m/13.3mm;
Voltage : 24/110/120/220v;
Wattage:100/150/250w
With TC K/J
With Kevlar sleeve | Flat coil type
ID9mm
OD 26mm
Voltage 120/220v
Wattage 100w/150w
With TC K/J
With Kevlar sleeve |

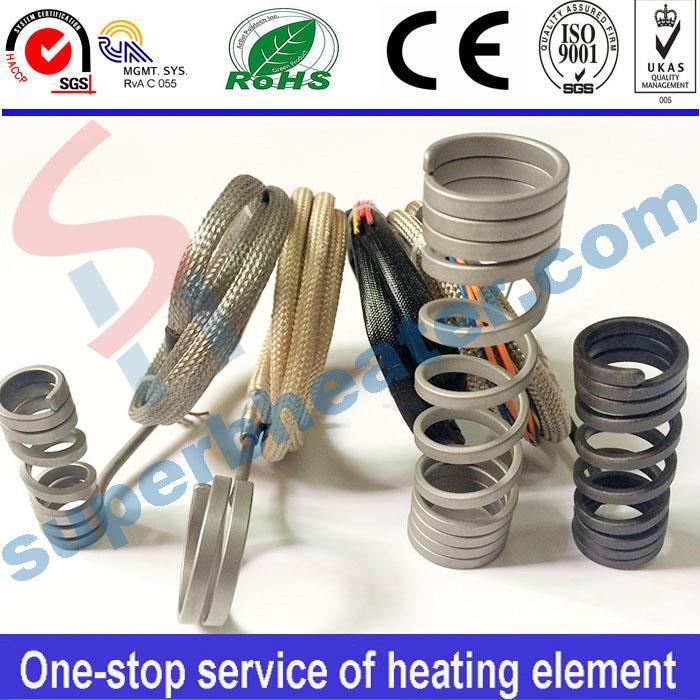

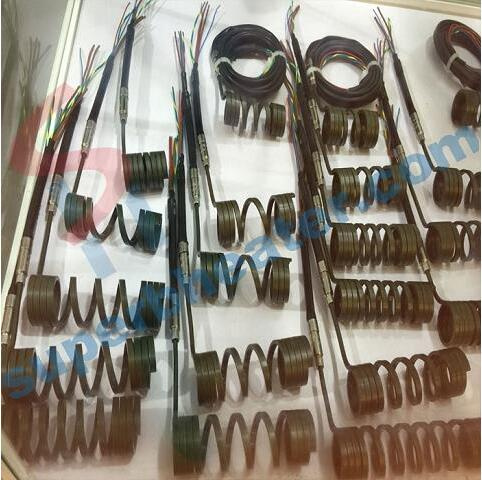

Products Show:
OUR ADVANTAGES:
1.Minimum order: 5pcs
2.Delivery time : in stock 1-2days ,out stock 3-7days
3.More than 50 different sizes stock
4.Provide OEM service.
5.Quality Assurance:Under normal conditions consistent with the design range 365days
Superb Heater Technology has been focused on the production of hot runner spring tube for plastic injection molding machines since 1985, which is well-known as one of the leading manufacturers and suppliers of hot runner spring tube for plastic injection molding machines. In the past years, we owned strong reputation for the high quality, reliable performance and strong durability of our products. Should you are interested, please feel free to contact our factory.
Shenzhen superb heater technology Co., Ltd, Founded in 1985, Start is a state run Magnesium Oxide factory, After privatization reform To become a professional to provide all kinds of electric heating products of the comprehensive private joint-stock companies, After years of development company now grown to have include: ChaoHu heating material fitting, JiuDing machinery and spare parts, LiLin cartridge heaters, chaohu band coiling heaters, JXC Industrial heaters five plants, more than 200 employees, assets of more than $ 5 million, Products include various types of industrial heater, cartridge heater, hot runner, thermocouples, band heater and a variety of heater materials and heater equipment to meet customers one-stop shopping for all kinds of heating element, heating materials and heating equipment needs.
Over the years we are committed to technology and product quality improvement, many products similar products meet international quality, in China in the lead, swaged-in leads cartridge heater and diameter less 4mm cartridge heater as China's first single, cost-effective products to give our customers highly recognized, it has been to establish and maintain long-term cooperative relations with more than 700 customers in over 40 countries.
We will insist on our stable style to establish good image in both customers and our partners. We have been insisting on the "REDUCING THE COST AND GIVING ADVANGTAGE TO CUSTOMERS " To provide customers with better products and services, and grow with customers
After long-term accumulation, we have set up agents and partners in India, Dubai, USA, Russia, Brazil, Argentina, Thailand, Korea and other countries to provide convenient and quick service
