Injection Molding Machine Variable Frequency Inverter VFD (BD600)
| Price: |
US $ 100-6000/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
BD600 series |
| Color: |
Grey |
| Certificate: |
Ce, ISO9001 |
| Communications: |
RS485 |
| Application: |
High Frequency Converter Transducer |
| Output Type: |
Triple |
| Principle Of Work: |
Vector Control Transducer |
| Switch Mode: |
PWM Control |
| Main Circuit Type: |
Voltage |
| Function: |
General Type |
| Brand: |
Folinn |
Product Description

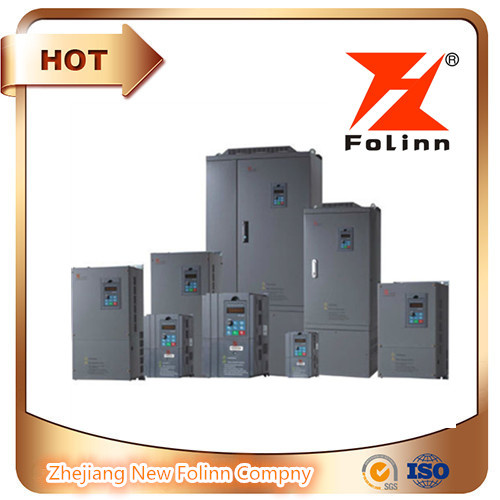

High functional VFD BD600 series Frequency Inverter
Product Overview
BD600 series is latest version for high functional vector inverter. Multiple control modes, new speed sensorless vector control (SVC) algorithm can achieve stability at slow speed, stronger load capacity at low frequency, support SVC torque control and multiple PG cards, It can realize close loop control of asynchronous motor. Stronger functions, functional of motor control has clearly raised.
Product Features
* Speed sensorless vector control (SVC), sensor vector control (VC), V/F control
* Total 10 main and auxiliary frequency source, they can be switched and combined flexibly
* Analog input increase 2 sets of input curve, each group has 4 inflection points, more flexible use
* Equiped with two groups of motor parameter, it can realize switching control of two motors
* A variety of encoders are optional: support differential encoder, UVW encoder, rotary transformer etc.
* Straight or S-curve acceleration/deceleration mode, 4 types of acceleration/ deceleration times, it can be switched by terminal
* Built-in PLC or control terminal, achieve up to 16 steps speed automatic cycle switching operation. Hold time and acceleration/deceleration of each step speed can be adjusted.
* Built-in speed trace function, multiple speed trace modes, the speed of trace can be adjusted
* Torque limit and control: "excavator" character, automatic limit torque when running can prevent over-current trip continually; vector mode can realize torque control

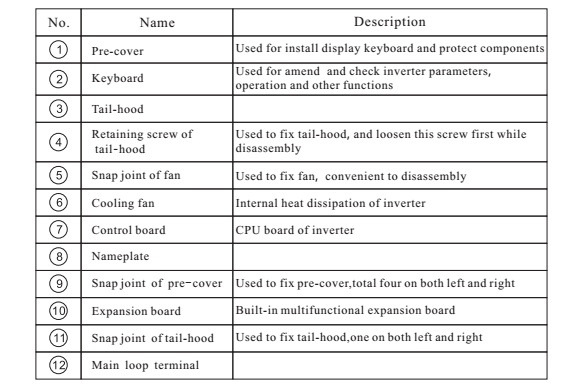

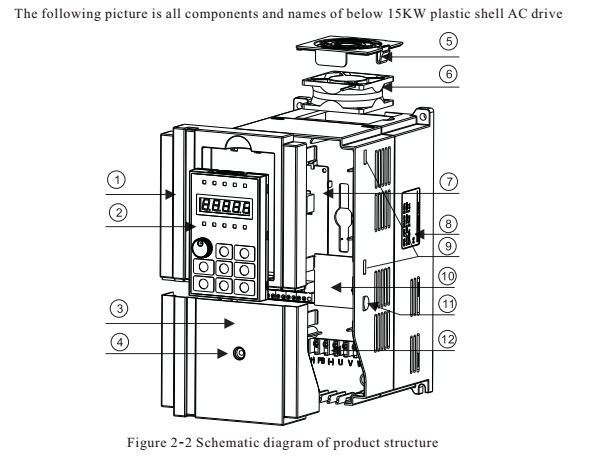

All components schematic diagram
Products Technical Parameter | Models | Rated power(KW) | Rated input current(A) | Rated output current(A) | Suitable Motor(KW) |
| Input 1PH 220V±15% 47HZ~63HZ |
| BD600-0R5G-2 | 0.55 | 5.4 | 4.0 | 0.55 |
| BD600-0R7G-2 | 0.75 | 8.2 | 5.0 | 0.75 |
| BD600-1R5G-2 | 1.5 | 14.0 | 7.0 | 1.5 |
| BD600-2R2G-2 | 2.2 | 23 | 10.0 | 2.2 |
| Input 3PH 220V±15% 47HZ~63HZ |
| Models | Rated power(KW) | Rated input current(A) | Rated output current(A) | Suitable Motor(KW) |
| BD600-0R5G-2 | 0.55 | 3.8 | 3.2 | 0.55 |
| BD600-0R7G-2 | 0.75 | 4.9 | 4.1 | 0.75 |
| BD600-1R5G-2 | 1.5 | 8.4 | 7.0 | 1.5 |
| BD600-2R2G-2 | 2.2 | 11.5 | 1.0 | 2.2 |
| BD600-3R7G-2 | 3.7 | 18 | 15 | 3.7 |
| BD600-5R5G-2 | 5.5 | 24 | 23 | 5.5 |
| BD600-7R5G-2 | 7.5 | 37 | 31 | 7.5 |
| BD600-011G-2 | 11 | 52 | 45 | 11 |
| BD600-015G-2 | 15 | 68 | 58 | 15 |
| BD600-018G-2 | 18 | 84 | 71 | 18 |
| BD600-022G-2 | 22 | 94 | 85 | 22 |
| BD600-030G-2 | 30 | 120 | 115 | 30 |
| BD600-037G-2 | 37 | 160 | 145 | 37 |
| BD600-045G-2 | 45 | 198 | 180 | 45 |
| BD600-055G-2 | 55 | 237 | 215 | 55 |
| BD600-075G-2 | 75 | 317 | 283 | 75 |
| Models | Rated power(KW) | Rated input current(A) | Rated output current(A) | Suitable Motor(KW) |
| Input 3PH 415V±15% 47Hz~63Hz |
| BD600-0R7G/1R5P-4 | 0.75/15 | 3.4/5.0 | 2.5/3.7 | 0.75/1.5 |
| BD600-1R5G/2R2P-4 | 1.5/2.2 | 5.0/5.8 | 3.7/5.0 | 1.5/2.2 |
| BD600-2R2G/3R7P-4 | 2.2/3.7 | 5.8/10.5 | 5.0/8.5 | 2.2/3.7 |
| BD600-3R7G/5R5P-4 | 3.7/5.5 | 10.5/14.6 | 8.5/13 | 3.7/5.5 |
| BD600-5R5G/7R5P-4 | 5.5/7.5 | 14.6/20.5 | 13/18 | 5.5/7.5 |
| BD600-7R5G/011P-4 | 7.5/11 | 20.5/26 | 18/24 | 7.5/11 |
| BD600-011G/015P-4 | 11/15 | 26/35 | 24/30 | 11/15 |
| BD600-015G/018P-4 | 15/18.5 | 35/38.5 | 30/37 | 15/18.5 |
| BD600-018G/022P-4 | 18.5/22 | 38.5/46.5 | 37/46 | 18.5/22 |
| BD600-022G/030P-4 | 22/30 | 46.5/62 | 46/58 | 22/30 |
| BD600-030G/037P-4 | 30/37 | 62/76 | 58/75 | 30/37 |
| BD600-037G//045P-4 | 37/45 | 76/92 | 75/90 | 37/45 |
| BD600-045G/055P-4 | 45/55 | 92/113 | 90/110 | 45/55 |
| BD600-055G/075P-4 | 55/75 | 113/157 | 110/150 | 55/75 |
| BD600-075G/093P-4 | 75/93 | 157/180 | 150/170 | 75/93 |
| BD600-093G/110P-4 | 93/110 | 180/214 | 170/210 | 93/110 |
| BD600-110G/132P-4 | 110/132 | 214/256 | 210/250 | 110/132 |
| BD600-132G/160P-4 | 132/160 | 256/307 | 250/300 | 132/160 |
| BD600-160G/200P-4 | 160/200 | 307/385 | 300/380 | 160/200 |
| BD600-200G/220P-4 | 200/220 | 385/430 | 380/430 | 200/220 |
| BD600-220G/250P-4 | 220/250 | 430/468 | 430/465 | 220/250 |
| BD600-250G/280P-4 | 250/280 | 468/525 | 465/520 | 250/280 |
| BD600-280G/315P-4 | 280/315 | 525/590 | 520/585 | 280/315 |
| BD600-315G/350P-4 | 315/350 | 590/665 | 585/650 | 315/350 |
| BD600-350G/400P-4 | 350/400 | 665/785 | 650/754 | 350/400 |
| BD600-400G/500P-4 | 400/500 | 785/965 | 754/930 | 400/500 |
| BD600-500G/630P-4 | 500/630 | 965/1210 | 930/1180 | 500/630 |
| BD600-630G/710P-4 | 630/710 | 1210/1465 | 1180/1430 | 630/710 |
Application* CNC, Packaging machinery, Wire drawing machine, Elevator door-motor
* Water extractor, Centrifuge, Injection molding machine
* All kinds of fans and pumping load
* Paper manufacturing machinery, Lifting machinery, HoistWorkshop & Factory Features
Our Vision
To create a first-class enterprise in the electrical control field and low-carbon happy life
Core Values
Win-win Cooperation Value Creation
Quality Policy
Absolute Quality, Brand Creation
Core Values
Scientization, Systematism, Standardization, Professionalization, Informationization
Development History
1994 In Wenling, the city with the first Chinese private enterprise founded, Fuling started its first step
2000 "Taizhou Fuling Motor Co., Ltd" officially founded
2001 ISO9001: 2000 approved / CE approved
2004 Honored as one of the "Zhejiang Hi-Tech Enterprises"
2007 Elected as one of the first council members of CEEIA Inverter Department, Posted on inverter industry authority magazine "Inverter World" Honored as one of the "China Top 10 Brands", Chosen as the "Member of the Year of 2007" by CEEIA
2009 Became "the Best Commercial Partner" of Infineon
2010 Renamed as "Taizhou Fuling Electrical Co., Ltd" and registered capital increased to 5, 000, 000 USD
2011 Elected as one of the second council members of CEEIA Inverter Department DZB10HV series inverter has been approved as the "Zhejiang Technology Innovation Special Item"
2012 Newly increases 2 more brands: "FUREEN" and "B&B Power"
2014 Company was renamed from "Taizhou Fuling Electric Co., Ltd" to "Zhejiang New Folinn Electric Co., Ltd"

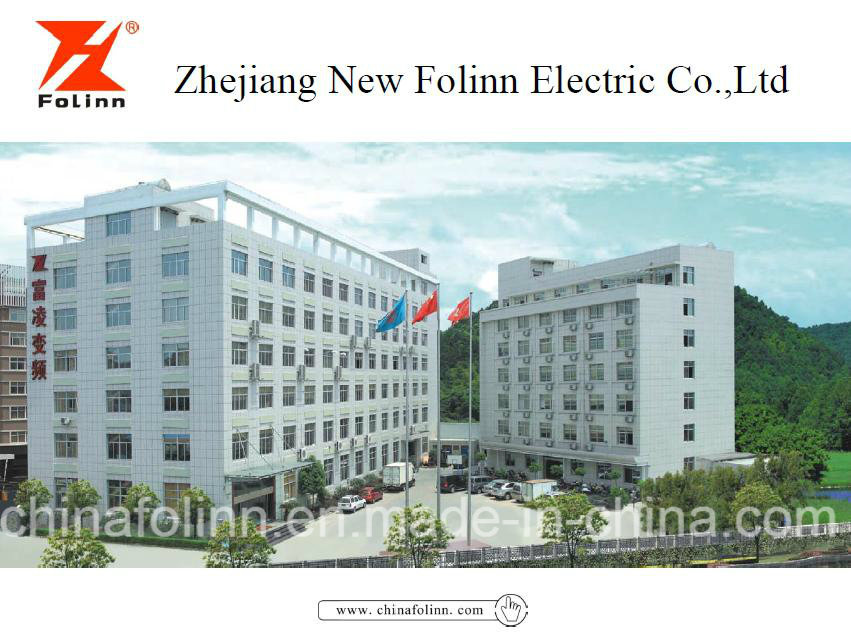

Company Profile
Zhejiang New Folinn Electric Co., Ltd. Founded in 1994, is located at Wenling, the youngest costal city in China, a well-known manufacturing base in Yangtze River Delta. Honored as a Zhejiang Hi-Tech Enterprise, we focus on R&D, manufacturing, sales and service for motor auto controlling products.
Taizhou Fuling is specialized in manufacturing HV(LV) & Low Voltage (LV) inverter, servo drive products, and new energy products. Based on our own solid industrial auto controlling technology and creative concept, we concentrate on driving technology improvement, device manufacture and
Update, devoting ourselves to providing every customer with the best quality product and service and pushing this industry forward. We stand on the principle of "Quality & Innovation is the industry's life", and realize it in our company moving steps, in order to keep ourselves and our customers growing together. Fuling sales network has been reached out all major parts of China and some other countries in Europe, South-East Asia, MID-East, America, and Oceania.
