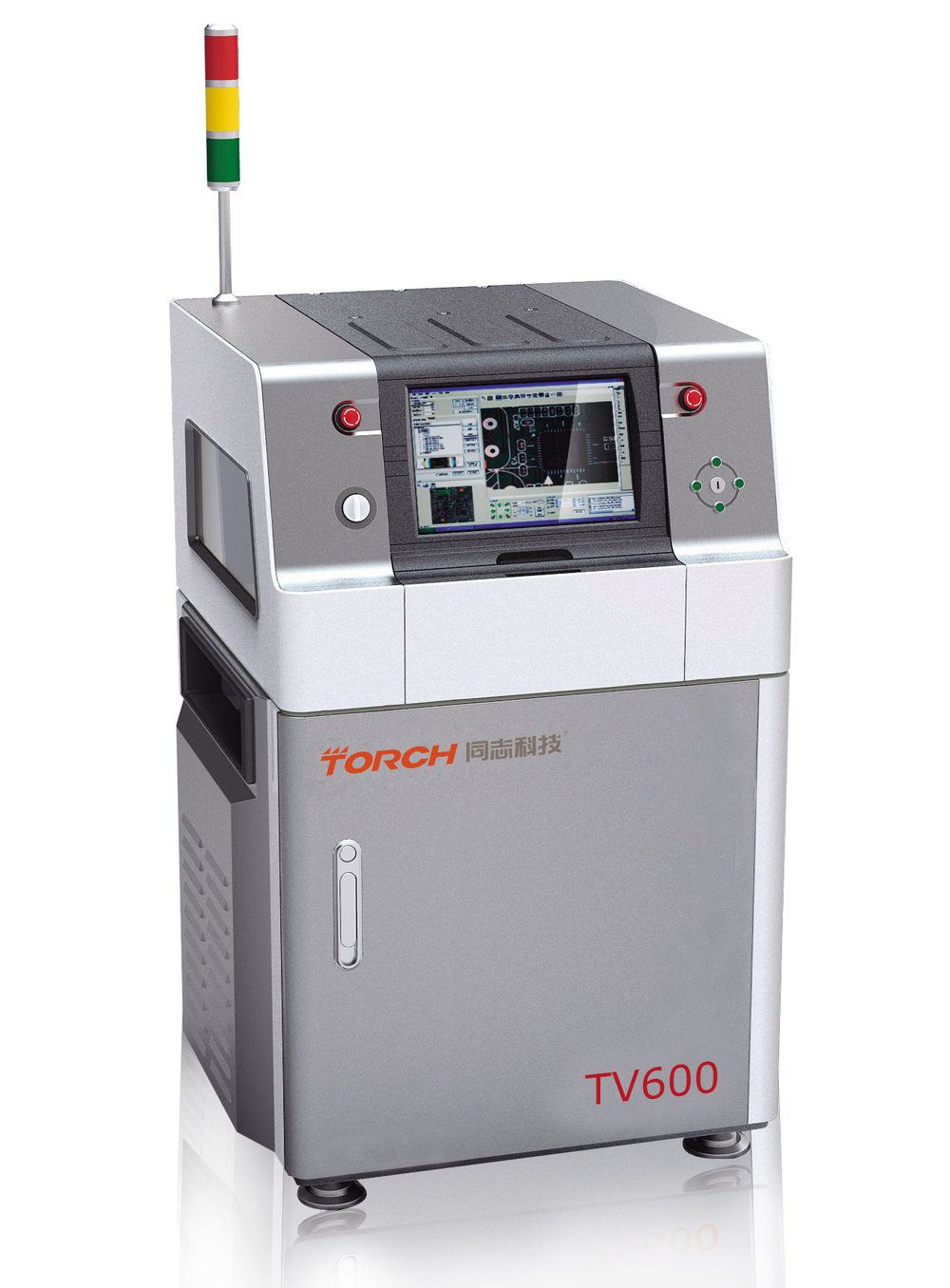

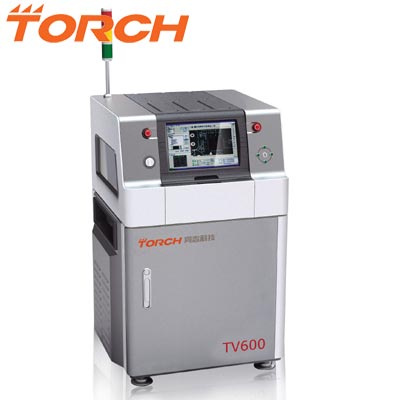

Inline Type Automatic Optical Inspection Machine / Aoi System TV600 (TORCH)

Prod Model:	TV600
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Max Cutter Size:	290*250 Mm
Metal Coating:	Copper
Mode Of Production:	SMT
Layers:	Single-Layer
Base Material:	FR-4
Certification:	ISO
Customized:	Non-Customized
Condition:	New

Product Description

Intorduction:
Automatic optical detector TV600 includes five parts: Three-axis servo drive system, hardware control systems, optical automatic identification systems, high-precision optical inspection system which is made up of industrial-grade optical camera and the body. The high precision lead rail and screw rod which are from Japan THK are applied in three-axis drive system; Effective guarantee of delivery accuracy. Automatic optical inspector can make sure high transmission accuracy; It is suitable for inspecting unqualified components, independent parts, chips and so on. It improves production efficiency and quality.

Components inspection:


1 Place PCB

A) The splint device which has no barrier makes the circuit board pick and place more convenient, and the boundless card board device has a patent that can clamp circuit board components which are zero margins

2 asynchronous testing functions

A) It confirms testing result artificially and at the same time it tests the next PCB, a maneuver that will save your testing time.

3 refill function

A) Every component can be set in many standard templates and is suitable for multi-material and soldering.

4) choose MARK discretionary

A) Besides traditional rotundity, rectangle, crisscross and triangle marks, the characteristic signs are used to mark discretionary.

5) Discretional angle measure

A) Measuring from discretional angle is suitable for all components, solder and bridge testing

6) It optimizes automatic route

A) It ensures that the camera is testing in the shortest and fastest way to proceed, Camera

Walking Position is optimized based on intelligent machine's learning methods.

7, To divide up IC pin and independent components foot

A) To automatically divide up IC pin and independent components and to automatically set testing parameters.
