Insertion Type Electronic Flow Switch for Air, Oil, Water

Name: Insertion Type Electronic Flow Switch for Air, Oil, Water
Brand: all-electronics-online.com
SKU: 785065645
Availability: InStock
Rating: 5 (137 reviews)

Price:	US $ 50/Piece
Trade Terms:	FOB,CFR,EXW
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	FS-E01/E03
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Medium:	Oil, Air, Water
Connection:	G1/2'', G1/4''
Probe Material:	Ss
Max.Fluid Pressure:	100bar
Protection Grade:	IP67

Product Description

Insertion Type Flow Switch

When the fluid flows,the heat of detecting resistance will be taken away,resistance is changed.the differential resistance value is used as the basis of flow velocity.

Feature
1) No moving parts,maintenance free,easy installation,a model can be suitable for a variety of pipe diameter.
2) Adjustable setting point of flow switch,extremely low pressure loss,compact structure.
3) LED light shows the flow trend and switch state.

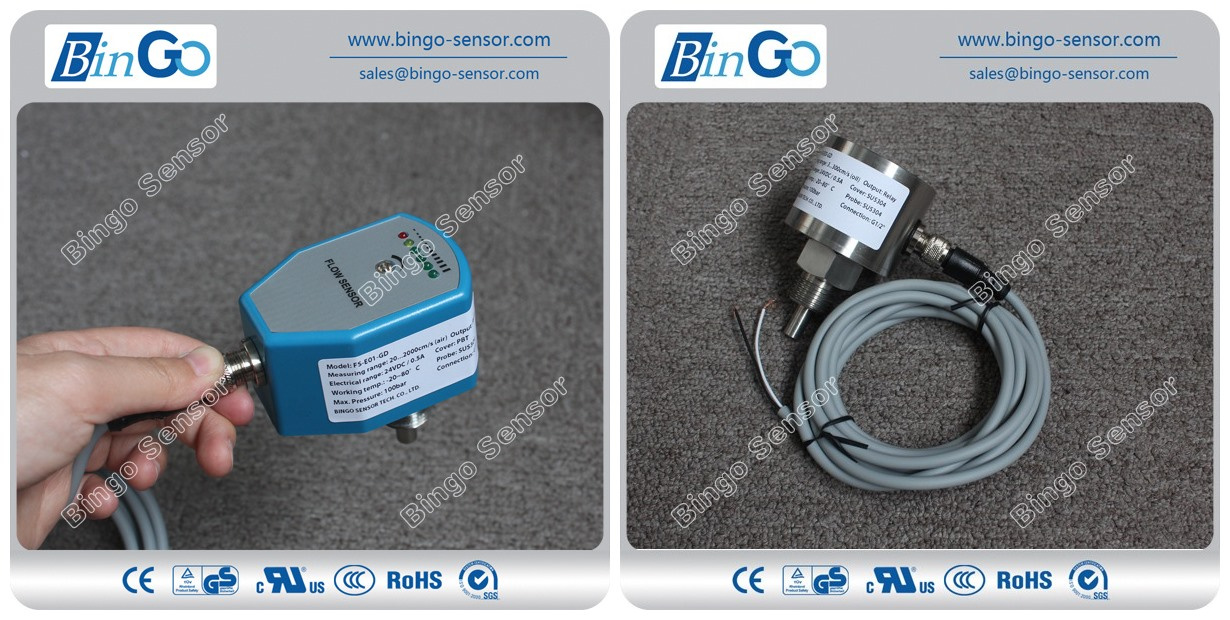

Product Show

Specification

Model	FS-E01	FS-E03
Application	Suitable for both gas and liquid.it can be used for pneumatic and hydraulic system,to monitor the cutoff of circulating water,cutting fluid and lubricant,and idle protection of pump,etc.
Medium	Water,oil,air
Flow rate set ranges	Water:1...150cm/s Oil:3...300 Air:20...2000cm/s
Connection	G1/2'',G1/4''(other customized)
Power supply	24VDC
Switch ON	Max.400mA(PNP or NPN);Max.1A,24VAC/VDC(relay)
No-load current	Max.80mA
Probe material	SS
Housing material	PBT	Stainless steel
Fluid temperature	-20~80ºC
Flow indicator	6-Segments LED
Temperature gradient	≤4ºC/s
Response time	1-13S,typical value 2s
Max.fluid pressure	100bar
Signal output	Relay NO+NC,NPN,PNP
Intialization time	8s
Repeatable accuracy	±2% measured value
Electric protection	Reverse phase,short circuit,overload
Electrical connection	M12 aviation plug,with 2meter cable(longer length available
Protection grade	IP67

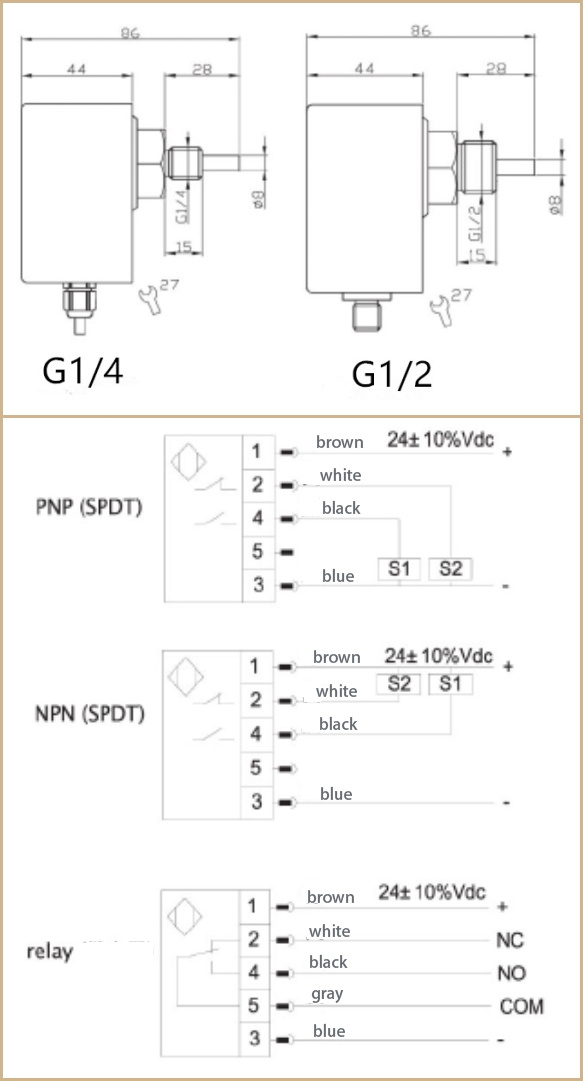

Dimension & Wiring diagram

How to order latest
1) signal output: Relay NO+NC? NPN? PNP?
2) connection : G1/4'' or G1/2'' ? (other connection can be customized)
3) probe length: the regular length is about 1.5cm. (if you need other length,it's can be customized)
4) Voltage : the regular voltage is 24VDC.((it's can be customized to 240VAC)
