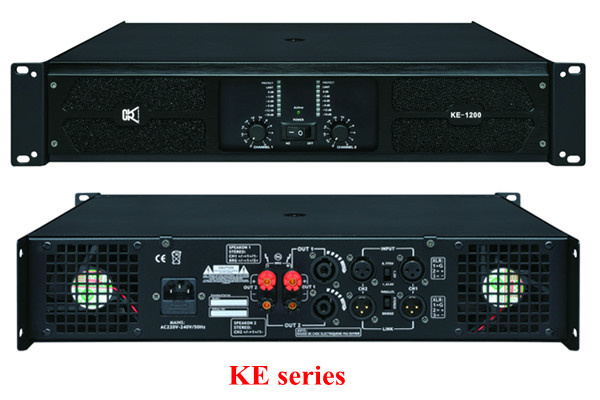

Installed Sound System Unmatched Reliability Power Amplifiers

Prod Model:	KE series
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:	2u
Power:	1200 X2 Channel 8 Ohms
Brand Name:	Cvr
Type:	Professional Amplifier
Usage:	KTV System
Used For:	Professional
Tube Type:	Transistor Amplifier
Function:	Pre-amplifier
Output Number:	4
Voltage:	AC 220V
Element Number:	Push-Pull Amplifier
Conductive Mode:	AB

Product Description

Fp14000/fp10000 digital amplifiers
Installed sound system unmatched reliability power amplifiers




KE-Series power amplifier has four different models, they are rated from 400 watt (8 ohm) to 1200 watt (8 ohm). All models are employing the mature H circuit design(400W AB circuit design) and using the high quality and reliable components.
KE-series amplifiers have a complete and high-speed protection system in the case of overheating, overloading, DC output etc. They are designed to provide a great solution for all kinds of power requirements. The high working efficiency and time-proof feature proves they are the most attractive amplification system for your outdoor events, disco, clubs and other live applications.


KE-1200
8Ω Stereo Power
2× 1200W
4Ω Stereo Power
2× 1800W
Input Sensitivity
1V/1.4V/24dB
Input Impedance
20KΩ Balanced/10KΩ Unbalanced
Frequency response
20Hz-20kHz ± 0.5dB
Slew Rate
>12V/μ S
Dampling factor(8 ohm 1k)
>300
Signal Noise Ration(dB)
>100dB
THD+N(Rated Power, 4Ω /kHz)%
0.05%
Input Connectors
XLR
Output Connectors
Speakon &touch-proof binding posts
Amplifier Protection
DC/Short/Temp/VHF/Limit/Softstar
Dimensions
483× 380× 88mm
Net Weight
26Kg
Gross weight
28Kg

	KE-1200
8Ω Stereo Power	2×1200W
4Ω Stereo Power	2×1800W
Input Sensitivity	1V/1.4V/24dB
Input Impedance	20KΩBalanced/10KΩUnbalanced
Frequency response	20Hz-20kHz ±0.5dB
Slew Rate	>12v/μs
Dampling factor(8 ohm 1k)	>300
Signal Noise Ration(dB)	>100dB
THD+N(Rated Power,4Ω/KHz)%	0.05%
Input Connectors	XLR
Output Connectors	Speakon &touch-proof binding posts
Amplifier Protection	DC/Short/Temp/VHF/Limit/Softstar
Dimensions	483×380×88mm
Net Weight	26Kg
Gross weight	28Kg
