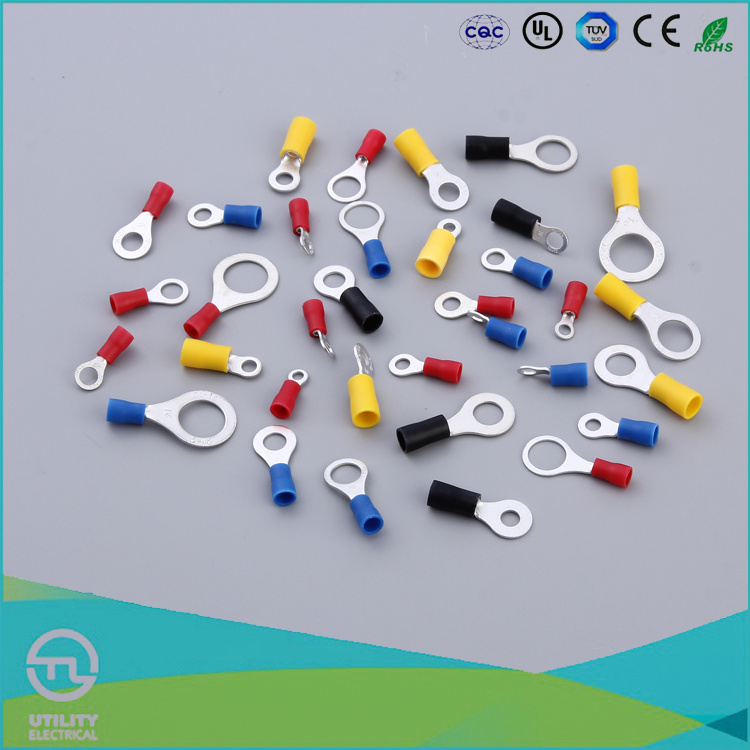

Insulated Copper Cable Lug/Ring Terminal for Wiring Harness

Insulated Copper Cable Lug/Ring Terminal for Wiring Harness
Price: US $ 0.01-1/Piece
Min Order: 1000/Piece
Pay Type: L/C,T/T,Western Union
Prod Model: RV Series Terminal
Terminal Material: Copper
Current: 19A
AWG: 22-16
Thickness: 0.7mm
Material: Copper
Application: Transmission of Electrical Signals
Type: Lug
Species: Lug
Shape: Round Type Header
Certification: Ce
Brand: Utl

Product Description

UTL  Zhejiang Electrical Connectors Insulated Copper Cable Lug/Ring Terminal for Wiring Harness

Model No.RV series
Item name Female pre-insulated cable lugs
MaterialTerminal : Copper,  Insulate : PVC
Size Check the following seize chart
Thinckness of terminal 0.7mm
A.W.G.22-16 AWG
Wire section0.5-1.5mm2
Max current19A
ColorRed Blue Yellow or OEM color
Payment termA.Below US$300,western,paypal accepted
B.Above US$300,bank account
CertificateTUV/CE/UL/RoHS/SGS/CQC  approved standard

Item NO.USA Bolt No.Bolt dia d2(mm)Dimension(mm)ColorDescription
BFLE
RV1.25-3#43.25.74.9517.810.04.3redLead Section:
0.5-1.5mm²
(A.W.G.22-16)
Max Current:Imax=19A
Material:Copper
Insulation:PVC
Thickness:0.7mm
RV1.25-3.5S#63.75.74.9517.8
RV1.25-3.5M#63.76.66.319.6
RV1.25-3.5L#63.78.07.021.0
RV1.25-4S#84.36.66.319.6
RV1.25-4L#84.38.07.021.0
RV1.25-5S#105.38.07.021.0
RV1.25-5L#105.39.58.522.2
RV1.25-6S1/46.59.58.522.2
RV1.25-6L1/46.511.611.127.0
RV1.25-85/168.511.611.127.0
RV1.25-103/810.513.613.930.7
RV1.25-10L3/810.519.216.035.6
RV1.25-121/213.019.216.035.6
RV1.25-149/1615.027.021.044.5
RV1.25-165/817.027.021.044.5
RV1.25-203/421.027.021.044.5
RV2-3#43.26.64.317.710.04.9blueLead Section:
1.5-2.5mm²
(A.W.G.16-14)
Max Current:Imax=27A
Material:Copper
Insulation:PVC
Thickness:0.8mm
RV2-3.5S#63.76.64.317.7
RV2-4S#84.36.66.319.7
RV2-6S1/46.59.57.422.2
RV2-85/168.512.011.027.0
RV2-103/810.513.613.930.7
RV2-121/213.019.216.035.6
RV2-165/817.027.021.044.5


















UTILITY electrical Co., Ltd. Was established in 1990, which is specialized in

The production of the terminal industry, distributors, is that the industry is

Strong in technology, growing rapidly, very large-scale enterprises. Since its

Establishment, the community's concern and support, through the joint

Efforts of all my colleagues, more than a decade UTILITY made remarkable

Achievements, from sales to the corporate image have been recognized by

Customers and industry peers and achieved gratifying brand.

The company has consistently adhered to the "people-oriented, market-

Oriented" business philosophy, product standards, UTILITY painstaking

Research of the IEC, UL, CSA, GB, CE, CCC and other international and

Domestic standards for terminals, and in accordance with these

Standards preparing their own more stringent corporate standards, from

The development, mold design, raw material procurement, production,

Plastic parts molding products, metal parts, to finished product assembly

And quality testing, packaging, shipping, etc.

The company produced dozens of series, thousands of specifications of

Products for our customers to provide a rich selection of product protection.

The company passed the ISO9001 quality management system certification,

The vast majority of products through the UL, CSA, CCC, CCS, CE

Certification, some products through the VDE certification, all products

Comply with RO environmental requirements.
