Insulated Copper Terminal

Name: Insulated Copper Terminal
Brand: all-electronics-online.com
SKU: 734292582
Availability: InStock
Rating: 4.8 (120 reviews)

Price:	US $ 2-10/Piece
Min Order:	500/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

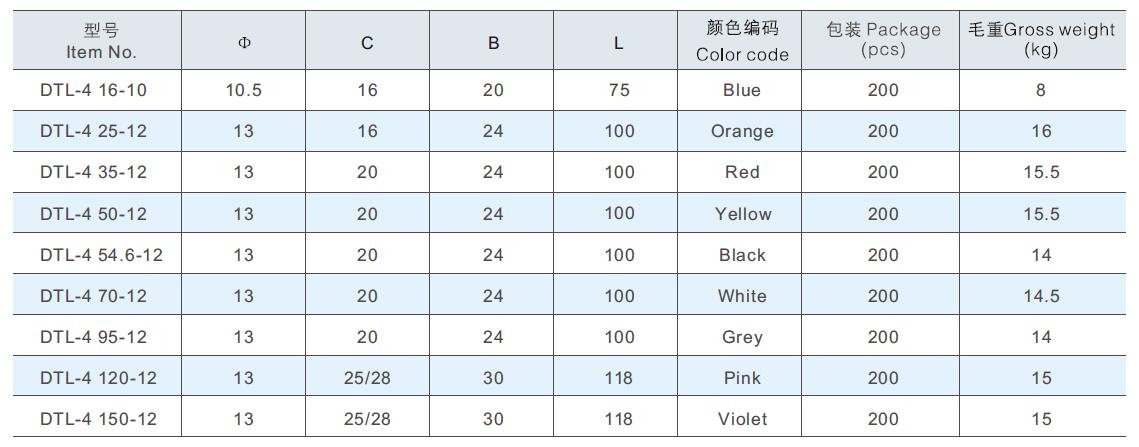

Prod Model:	DTL-4
Type:	Socket Terminals
Material:	Copper
Application:	Conduct Electricity
Brand:	F & R

Product Description

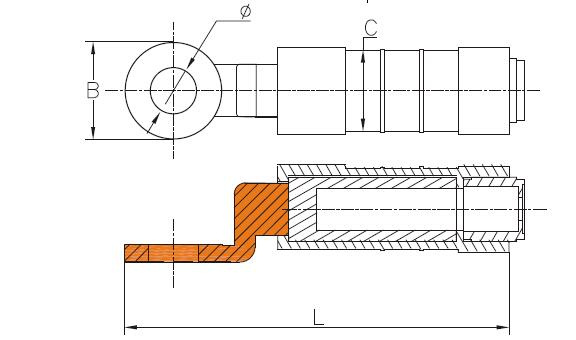

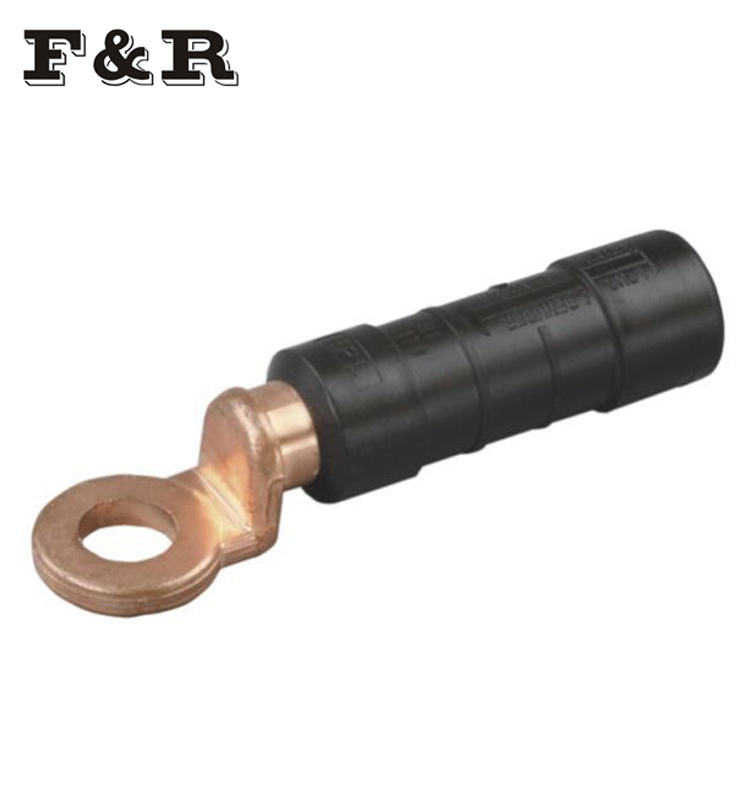

The DTL-4 pre-insulated bimetal lug is used to establish
connection between LV-ABC cable and electrical equipments.
Palm is made of 99.9% pure copper and sleeve is made of 99.6%
pure aluminium.
Cross-section of conductor can be easily identified by the color
code of elastomeric rings
Elastomeric ring and pre-filled grease enable super waterproof
performance
Watertightness test carried out at 6kV for 1 minute under water
Insulation tube is made of weather and UV resistant polymer
Standard: EN 50483-4 , NFC 33-021

Fivefine power Established in 1998, which is the national non-regional corporation that have the advantages of install-ing simply, using conveniently, beautiful apprearance, high reliability, easy to whole loyout, simply outline design, shorten the R & Dperiodes, etc, We are going in for the development, production and sale of the electric connection protection system products of industrial automated equipment.

Business items: Kind of machine tool energy chains, various rectifiers, diodes, thyristor, power semiconductor modules, and cable accessories & power fitting, such as cable lugs, clamps, connector, heat shrinkable tube, cable tie, egg incubator. etc.

The corporation has been certified to ISO9001: 2000 and ISO 14000. The products have owned production license and manufactured according to international standard. All products have passed test by center of Quality inspection of electric power of nation electric power corporation, China electric Power research Institute and Xian high-voltage Research Institute. etc.
