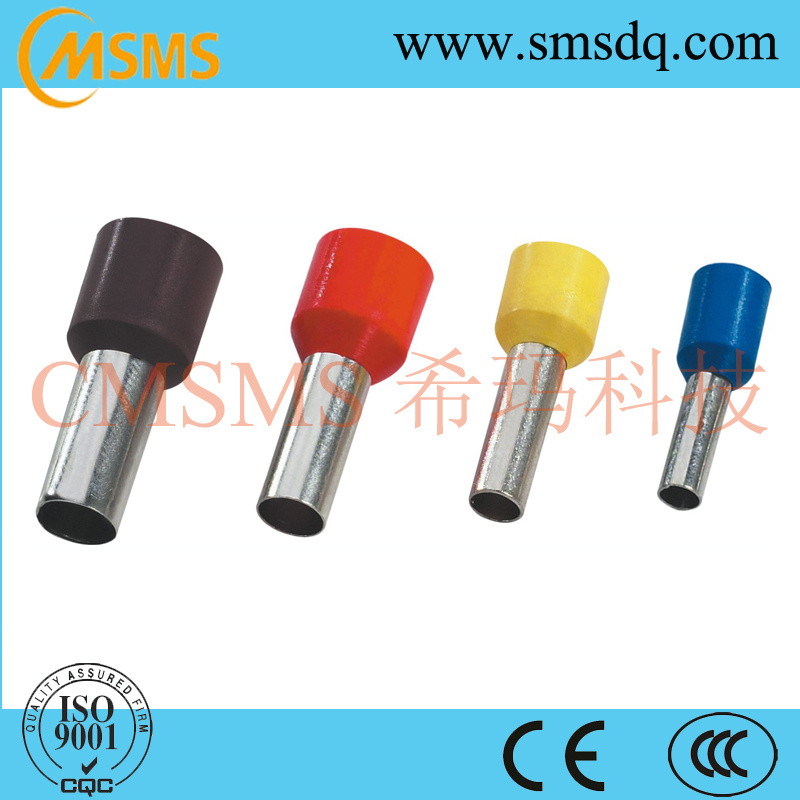

Insulated Cord End Terminals

Name: Insulated Cord End Terminals
Brand: all-electronics-online.com
SKU: 666350355
Availability: InStock
Rating: 4.6 (58 reviews)

Price:	US $ 1-2/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	5000/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	E0505
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:	0.5
Application:	Transmission of Electrical Signals
Type:	Single Hole Terminals
Material:	Copper

Product Description

Our products are widely applied in electric & electronic industry, electric equipment, Industrial automation, street lighting and power control system in traffic and transportation, posts & telecommunication, petrol chemical industry, industrial building machine-building, etc.

Item	Dimension (mm)					Wire Section		France Color German Color	Color
	F	L	W	Dφ	Cφ	A. W. G	mm 2
E0505	5.0	11.0	2.5	1.3	1.0	2 2	0.5	White Orange
E0506	6.0	12.0
E0508	8.0	14.0
E0510	10.0	16.0
E0512	12.0	18.0
E7506	6.0	12.4	2.8	1.5	1.2	20	0.75	Blue White
E7508	8.0	14.6
E7510	10.0	16.4
E7512	12.0	18.4
E7518	18.0	24.4
E1006	6.0	12.4	3.0	1.7	1.4	18	1.0	Red Yellow
E1008	8.0	14.6
E1010	10.0	16.4
E1012	12.0	18.4
E1018	18.0	24.4
E1508	8.0	14.6	3.5	2.0	1.7	16	1.5	Black Red
E1510	10.0	16.4
E1512	12.0	18.4
E1515	15.0	21.4
E1518	18.0	24.4
E2508	8.0	15.2	4.0	2.6	2.3	14	2.5	Grey Blue
E2510	10.0	17.2
E2512	12.0	19.2
E2518	18.0	25.2
E2525	25.0	32.2
E4009	9.0	16.5	4.4	3.2	2.8	12	4.0	Orange Grey
E4010	10.0	17.5
E4012	12.0	19.5
E4018	18.0	25.5
E6012	12.0	20.0	6.3	3.9	3.5	10	6.0	Green Black
E6018	18.0	26.0
E10-12	12.0	22.2	8.8	6.2	5.8	6	16	Brown lvory
E10-18	18.0	27.5
E16-12	12.0	22.2	8.8	6.2	5.8	6	16	lvory Green
E16-18	18.0	28.2
E25-15	15.0	28.0	11.2	7.9	7.5	4	25	Black Brown
E25-16	16.0	29.0
E25-18	18.0	31.0
E25-22	22.0	35.0
E35-16	16.0	30.0	12.7	8.7	8.3	2	35	Red Beige
E35-18	18.0	32.0
E35-22	22.0	36.0
E35-25	25.0	39.0
E50-20	20.0	36.0	15.3	10.9	10.3	1/0	50	Blue Olive
E50-25	25.0	41.0
E70-20	20.0	37.0	16.0	14.3	13.5	2/0	70	Yellow
E70-25	25.0	42.0
E70-27	27.0	44.0
E95-25	25.0	44.0	18.5	15.3	14.5	3/0	95	Red
E120-27	27.0	47.6	20.3	17.5	16.5	4/0	120	Blue
E120-32	32.0	52.6
E150-25	25.0	50.6	23.4	20.6	19.6	250/300	150	Yellow
E150-27	27.0	52.6
E150-32	32.0	57.6

Zhejiang SMS Technology Co., Ltd is a professional manufacturer of solar mounting system, Electric connection & relative products. Our main products are Terminal block, Piercing connector, Connection box, DIN rail, Fan and Ventilate filter, etc. For passed ISO9000 many years, we always concentrate to manufactures of Electric connection and relative products, energetically explore potential markets worldwide. Mostly of our products are approved by CE, RoHS, CCC, UL, etc...And enter to international markets.

At the beginning we enter the electric connection industry, we keep our eye on produce High quality products and offer More competitive products to our customers.

We adopt advanced technologies and high quality material to offer more than 20 series products in electric distribution system, power control system and cable connection, etc...Including SKJ series terminal block, ST1 series spring connector, Insulation piercing connector, DIN rail, Fan & ventilate filter, electric metering box, multipurpose terminal block and relative accessories & tools.

Our products are widely applied in electric & electronic industry, electric equipment, Industrial automation, street lighting and power control system in traffic and transportation, posts & telecommunication, petrol chemical industry, industrial building machine-building, etc.

Zhejiang SMS technology Co., Ltd. Established more than 40 agents and service parters all round China and keep expanding international market. We accept OEM/ODM order from oversea customers. We believe our products and believe customers will chosen our products as their best choice in electric connection field.
