| Prod Model: |
HT 5.5-3 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Sv1.25-3.2: |
Svs1.25-3.5 |
| Type: |

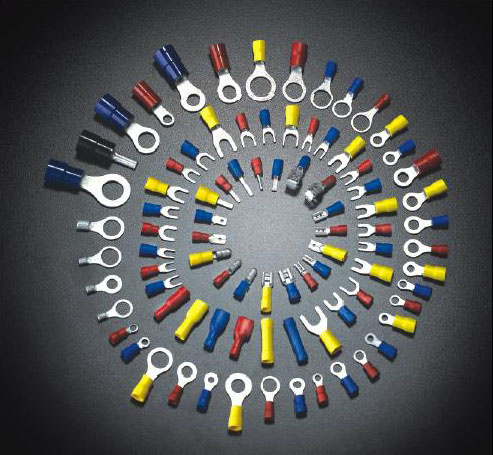

Single Hole Terminals |
| Application: |
Conduct Electricity |
| Material: |
Copper, Purple Copper, Brass |
| Brand: |
Haitai |
Product Description
Specification:
Special Features:
Applicable wires:12-24AWG
Applicable PC board thickness:1.60mm
Temperature range :-25°C~85°C
Voltage rating :300∨.Ac/Dc
Current rating :15A
Contact resistance :≤0.02Ω
Insulation voltage :≥1000MΩ
Withstand voltage:500∨.Ac/1minute
Material
Insulationr:(Nylon)UL94∨-0
Finish:Brass.Tin/Plated
Feature:
1.100% tested before delivery.
2.Guarantee the prompt delivery.The stocked goods will be delivered within 3 days and the customized products will be delivered as arranged date.
3.We are glad to makes samples according to our customers'drawing,specifications and samples.
4.OEM is available.
5.Free to contact us,we can offer you the best service,top-quality goods,competitive price and timely delivery.
6.Our products are extensively used in electronic and other industries.
7.We have got the certificate ISO9001:2008 and TS16949.
Technical Data
Lead section: 0.5-1.5mm2(22-16) Max current: =9A
| Type | Number of ANSI bolt | Diameter of bolt mouth d2 | B(mm) | L(mm) | F(mm) | H(mm) | D(mm) | Color |
| 1.25-3.2 | #4 | 3.2mm | 5.7 | 21.2 | 6.5 | 10.0 | 4.3 | Red |
| 1.25-3.5 | #6 | 3.7mm | 5.7 | 21.2 | 6.5 |
| 1.25-3.5 | #6 | 3.7mm | 6.4 | 21.2 | 6.5 |
| 1.25-3.5 | #8 | 4.3mm | 6.4 | 21.2 | 6.5 |
| 1.25-4 | #8 | 4.3mm | 7.2 | 21.2 | 6.5 |
| 1.25-4 | #8 | 4.3mm | 8.1 | 21.2 | 6.5 |
| 1.25-5 | #10 | 5.3mm | 8.1 | 21.2 | 6.5 |
| 1.25-6 | 1/4 | 5.3mm | 9.5 | 21.2 | 6.5 |
| 1.25-8 | 5/16 | 6.5mm | 9.5 | 21.2 | 6.5 |
| 1.25-10 | 3/8 | 6.5mm | 12.0 | 21.2 | 11.0 |
Lead section: 1.5-2.5mm2(16-14) Max current: =27A
| Type | Number of ANSI bolt | Diameter of bolt mouth d2 | B7 | F(mm) | H(mm) | D(mm) | Color |
| 2-3 | #4 | 3.2mm | 6.6 | 17.8 | 4.3 | 10.0 | 4.9 | Blue |
| 2-3.5 | #6 | 3.7mm | 6.6 | 17.8 | 4.3 |
| 2-3.5 | #6 | 3.7mm | 6.6 | 21.0 | 7.0 |
| 2-3.5 | #8 | 4.3mm | 8.5 | 22.5 | 7.75 |
| 2-4 | #8 | 4.3mm | 6.6 | 21.0 | 7.0 |
| 2-4 | #8 | 4.3mm | 8.5 | 22.5 | 7.75 |
| 2-5 | #10 | 5.3mm | 8.5 | 22.5 | 7.75 |
| 2-5 | #10 | 5.3mm | 9.5 | 22.5 | 7.25 |
| 2-6 | 1/4 | 6.5mm | 12.0 | 27.6 | 11.0 |
| 2-8 | 5/16 | 8.4mm | 12.0 | 27.6 | 11.0 |
| 2-8 | 3/8 | 10.5mm | 13.6 | 30.2 | 13.9 |
Lead section: 2.5-4mm2(14-12) Max current: =37A
| Type | Number of ANSI bolt | Diameter of bolt mouth d2 | B(mm) | L(mm) | F(mm) | H(mm) | D(mm) | Color |
| 3.5-4 | #8 | 4.3mm | 8.0 | 24.5 | 7.7 | 12.5 | 6.2 | Black |
| 3.5-5 | #10 | 5.3mm | 8.0 | 24.6 | 7.7 |
| 3.5-5 | #10 | 5.3mm | 12.0 | 27.9 | 7.7 |
| 3.5-6 | 1/4 | 6.5mm | 12.0 | 27.9 | 7.7 |
Lead section: 4-6mm2(12-10) Max current: =48A
| Type | Number of ANSI bolt | Diameter of bolt mouth d2 | B(mm) | L(mm) | F(mm) | H(mm) | D(mm) | Color |
| 5.5-3.5 | #6 | 3.7mm | 7.2
| 21.4
| 5.9
| 12.5 | 6.7 | Yellow |
| 5.5-4 | #8 | 4.3mm | 7.2
| 21.5
| 5.9
|
| 5.5-4 | #8 | 4.3mm | 9.5
| 25.5
| 8.3
|
| 5.5-5 | #10 | 5.3mm | 9.5
| 25.5
| 8.3 |
| 5.5-6 | 1/4 | 6.5mm | 12.0
| 31.5
| 13.0 |
| 5.5-8 | 5/16 | 8.4mm | 15.0
| 33.7
| 13.0 |
| 5.5-10 | 3/8 | 10.5mm | 15.0 | 33.7 | 13.7 |
| 5.5-12 | 1/2 | 13.0mm | 19.2 | 38.1 | 16.0 |
8-10 | 3/8 | 10.5mm | Size of cable:6~10mm2(American standard(8) Max.current=62A |
14-5 | #10 | 5.3mm | Size of cable:10~16mm2(American standard(6) Max.current=88A |
14-12 | 1/2 | 13.0mm | |
22-5L | #10 | 5.3mm | Size of cable:16~25mm2 (American standard(4) Max.current=115A | |
22-6L | 1/4 | 6.5mm | |
38-6 | 1/4 | 6.5mm | Size of cable:35mm2 (American standard(2) Max.current=160A | |
38-8L | 5/16 | 8.4mm | |
38-12 | 1/2 | 13.0mm | |
60-8 | 5/16 | 17.0mm | Size of cable:50-70mm2American standard(1/0) Max.current=215A | |
60-12 | 1/2 | 13.0mm | |
60-22 | 7/8 | 23.0mm | |
70-6 | 1/4 | 6.5mm | Size of cable70mm2 (American standard(2/0) Max.current=235A | |
70-16 | 5/8 | 17.0mm | |
80-20 | 3/4 | 21.0mm | Size of cable:4~6mm2 (American standard(12~10) Max.current=255A | |
100-6 | 1/4 | 6.5mm | Size of cable:120mm2 (American standard(4/0) Max.curren |
