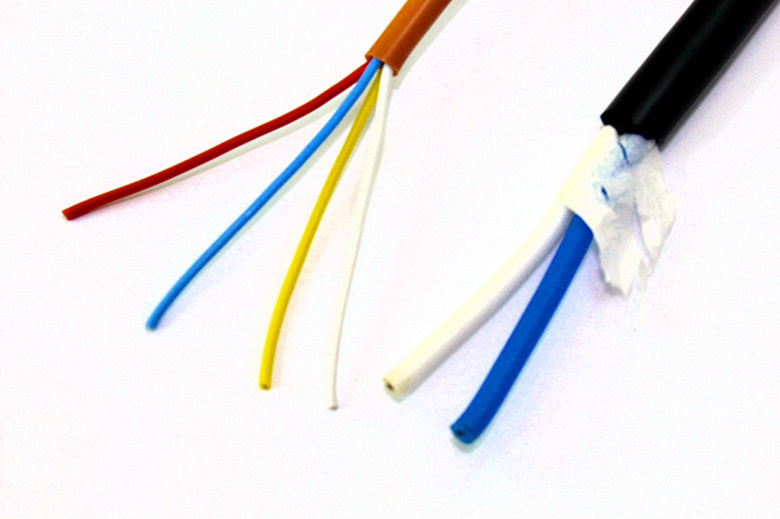

Name: Insulated Power Cable
Brand: all-electronics-online.com
SKU: 760203265
Availability: InStock
Rating: 4.8 (91 reviews)

Price:	US $ 0.1-15/Meter
Trade Terms:	FOB,CFR,CIF
Min Order:	3000/Meter
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Silicone Power Cable:	(Sdw12)
Voltage:	Low and Medium Voltage Cable
Insulation Material:	Rubber
Current:	AC Cable
Application:	Car
Certification:	UL
Model:	Sdw12
Brand:	Dewei Wire
Sheath Material:	Silicone Rubber

Product Description

Silicone power cable(SDW12)

Nominal Voltage: 300V/500V
Temperature Range: -60º C to 180º C

Conductor: Tinned copper
Insulator: Silicone rubber

Jacket: Silicone rubber
O. D. Tolerance: ± 0.10mm

Color: Black-brown-red-orange-yellow-green-blue-violet-gray-white-green/yellow. Ect

section (mm2)	con.of conductor. (NO/mm)	Diameter (mm)	Thickness of insulator (mm)	diameter of core (mm)	jacket diameter (mm)	over diameter (mm)	Packing (m/coil)
0.5*2c	16/0.2	0.92	0.60	2.12	0.80	5.84	100
0.75*2c	24/0.2	1.13	0.60	2.33	0.80	6.26	100
1.00*2c	32/0.2	1.31	0.60	2.51	0.90	6.82	50
1.50*2c	30/0.25	1.58	0.8	3.18	1.00	8.36	50
4.0*2c	53/0.31	2.61	1.00	4.61	1.20	11.6	50
6.0*2c	80/0.31	3.20	1.00	5.20	1.40	13.2	50
0.5*3c	16/0.2	0.92	0.6	2.12	0.80	5.84	50
0.75*3c	24/0.2	1.13	0.6	2.33	0.90	6.46	100
1.00*3c	32/0.2	1.31	0.6	2.51	0.90	6.82	50
1.50*3c	30/0.25	1.58	0.8	3.18	1.00	8.36	50
0.5*4c	16/0.2	0.92	0.6	2.12	0.90	6.70	50
0.75*4c	24/0.2	1.13	0.6	2.33	0.90	7.18	50
1.00*4c	32/0.2	1.31	0.6	2.51	0.90	7.6	50
1.50*4c	30/0.25	1.58	0.8	3.18	1.10	9.55	50
0.5*5c	16/0.2	0.92	0.6	2.12	1.00	7.48	50
4.0*5c	53/0.31	2.61	1.00	4.61	1.40	14.71	50

DONGGUAN DEWEI WIRE Co., Ltd, established in 2004, specializes in manufacturing various kinds of silicone sleeve and electrical cable: Silicone rubber wire, FEP wire, PFA wire, PTFE wire, ETFE wire, heating wire, braided wire, power cable, twin flat cable, coaxical cable, high temperature cable and high voltage cable which can meet the requirements of UL, VDE, CCC.

Besides, we set up a wire processing workshop to provide customers with well processed wire group and wire harness of the batteries, the brushes, electric adjustment, steering gear, all kinds of JST, AMP connector, T-type plugs, banana plugs etc,

We set up and implement quality management system strictly according to international standard ISO9000, and had been awarded the certification of AMT ISO 9001: 2008 in 2009.

Our philosophy is quality-oriented, continuous innovative, reputation first and to treat our clients sincerely. In the meantime we persist in providing our customers with competitive high-quality products, creating a belief that quality decides the survival of the company.

Welcome to visit and give advice, let' S work together and create brilliant future.
